The GE IS215ACLEH1A is an Application Control Layer (ACLE) module for the EX2100 excitation control system
Brand :
GEPart Number :
IS215ACLEH1AWeight :
1 kgDimension :
26.04 x 1.99 x 18.73 cmCountry of Origin :
USAHS Code :
8537101190Description :
Application Control Layer Module
Contact Below to Get Best Price
|
What You Need |
Recommended Action |
|
Price request |
|
|
Fast response |
|
|
Technical confirmation |
Send the complete part number and required quantity. |
|
Product inquiry |
Example: IS215ACLEH1A |
Product Overview

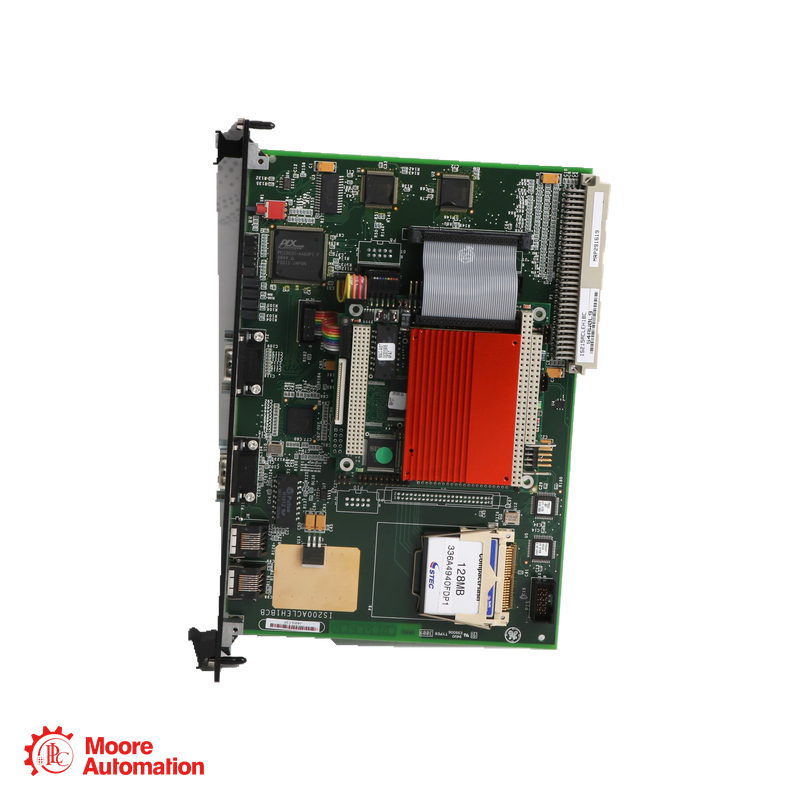

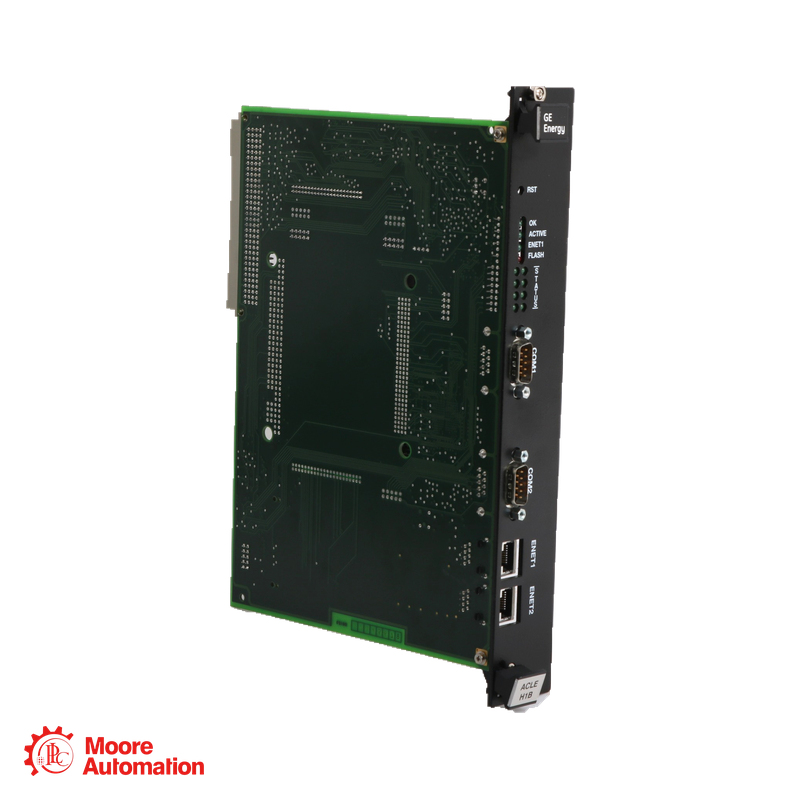

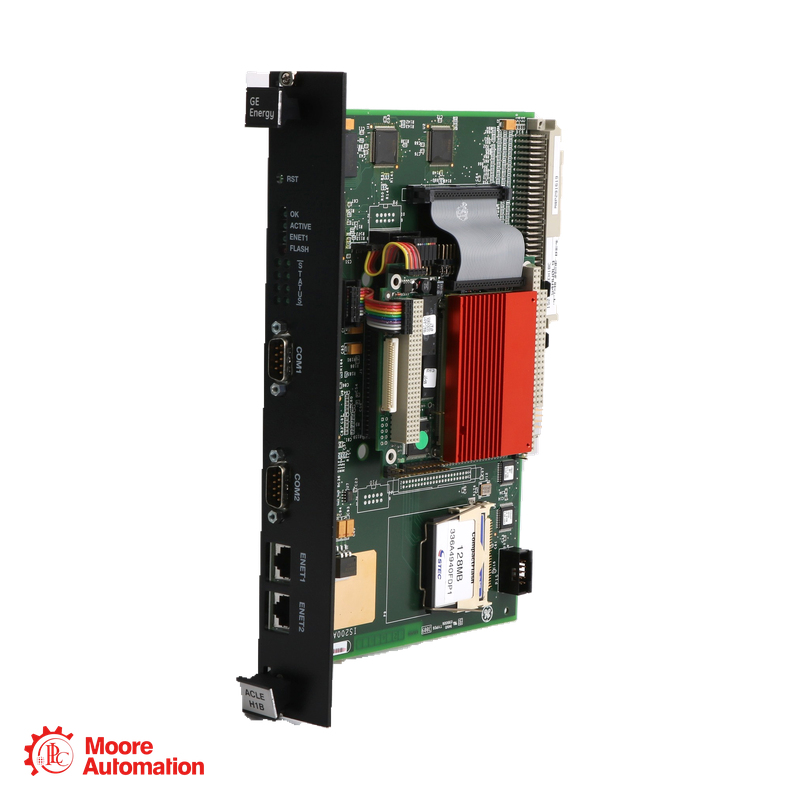

The GE IS215ACLEH1A is an Application Control Layer (ACLE) module for the EX2100 excitation control system. It acts as a microprocessor-based master controller, running application control functions and exchanging data with other parts of the excitation system. Its 266 MHz processor runs QNX4, while two Ethernet ports support control-network and Toolbox communication. The module also provides two RS-232 serial ports and communicates with the DSPX processor board through the rack backplane.
Technical Specifications
Parameter
Value
Manufacturer
GE Energy
Model
IS215ACLEH1A
Module type
Application Control Layer (ACLE) module
Control system
EX2100 Excitation Control
Processor
266 MHz
Operating system
QNX4
Ethernet interfaces
2 × 10/100BaseT, RJ-45
Serial interfaces
2 × RS-232, COM1 and COM2
DRAM
128 MB, expandable
Compact flash
16 MB, expandable
Backplane interface memory
4K × 32 dual-port RAM
Power requirement
5 V DC at 3.0 A
Rack space
2 full slots
Key Highlights
- EX2100 application controller
- Defined H1A configuration
- Two Ethernet interfaces
- Dedicated processor-board link
- Built-in status indication
Industries Served
• Power generation
• Turbine-generator operations
• Industrial plants operating EX2100 excitation systems
• Power-plant control and maintenance
Frequently Asked Questions
Question
Answer
What is the IS215ACLEH1A’s role in an EX2100 system?
It serves as the application-level master controller, handling control functions and communication within the excitation system.
How does H1A differ from the H1B version?
GE specifies a 266 MHz CPU for H1A and a 400 MHz CPU for H1B; both versions run QNX4.
What are the two Ethernet ports used for?
ENET1 normally supports Toolbox and the higher-level unit data highway. ENET2 is available for I/O expansion on a private network.
How does the ACLE exchange data with the DSPX board?
The two boards communicate through dual-port RAM over the EX2100 rack backplane.
