GE MARK VI · VTUR H2 PRIMARY TURBINE PROTECTION

IS200VTURH2BAC

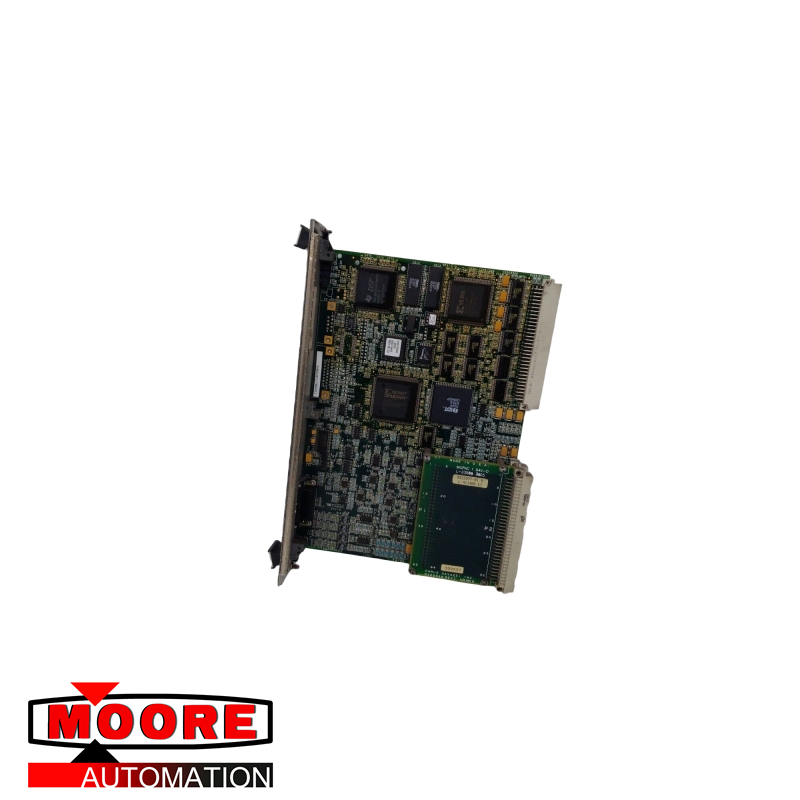

IS200VTURH2BAC is a GE Mark VI VTUR primary turbine-protection processor board. It handles four passive speed pickups, generator/bus synchronizing signals and eight flame-detector inputs, with 6 trip-solenoid interfaces through the corresponding TRPx terminal-board arrangement.

PRODUCT TYPEPRIMARY TURBINE PROTECTION BOARD
PLATFORMMark VI
SPEED4 MPU
TRIPS6 ETD
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE ● PRIMARY TURBINE PROTECTION BOARD
MARK VI

IS200VTURH2BAC

PRIMARY TURBINE PROTECTION BOARD

MARK VI · VTUR H2B · 6 TRIP-SOLENOID INTERFACES

MODULE ROLE
IS200VTURH2BAC is the VTUR H2B primary-protection processor for the Mark VI rack. It passes turbine-speed measurements to the controller and carries the controller-generated trip commands to the terminal-board trip circuits.
LONG DESCRIPTION
IS200VTURH2BAC measures four passive pulse-rate inputs, supports generator automatic synchronizing, monitors shaft voltage and current, and processes eight flame-detector inputs. The H2 configuration occupies two VME slots and interfaces with six trip solenoids through two TRPx terminal boards. The second trip board increases trip-output capacity without increasing the eight flame-detector inputs.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the IS200VTURH2BAC Reference Is Structured

IS
Issuing organizationGE Power · Salem, Virginia
2
Material designationNon-RoHS part-number designation
00
Assembly levelPrinted circuit board assembly
VTUR
Board designationPrimary turbine protection processor
H
Technology codeContains surface-mount components
2
Assembly variantAssembly variant 2
B
Functional versionBackward-compatibility version B
A
PWA versionProduction version A
C
PWB versionProduction version C
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Mark VI ↗
IS200VTURH2BAC PRIMARY TURBINE PROTECTION BOARD

Engineering data at a glance

Click “+” to expand more specifications.

SPEED4 MPU
TRIPS6 ETD
FLAME8
PT2
VTUR H2B channel configuration from GEH-6421M Volume II I/O Overview and VTUR Primary Turbine Protection.
Configuration note IS200VTURH2BAC uses the two-slot H2 arrangement with two TRPx boards for six trip-solenoid interfaces. Eight flame inputs are accepted from the first TRPG; they are not doubled by the second trip terminal board.
GENERAL INFORMATION −
BrandGE
Part numberIS200VTURH2BAC
Product typePrimary Turbine Protection Board
Passive speed pickups4 inputs per processor
Trip-solenoid interfaces6; two TRPx terminal boards
Flame-detector inputs8; through the first TRPG
SPEED AND SYNCHRONIZING DATA +
MPU pulse-rate range2 Hz to 20 kHz
MPU pulse-rate accuracy0.05% of reading
Synchronizing phase measurementBetter than 1 degree
MEASUREMENT AND TERMINAL INTERFACES +
Generator and bus voltageTwo single-phase PT inputs; nominal 115 Vrms
Synchronizing voltage range75 to 130 Vrms
PT isolation1500 Vrms magnetic barrier
Shaft monitoringShaft voltage and current measurement
Trip terminal arrangementTwo TRPx boards; second trip group through J4A
PROTECTION SIGNAL PATH +
Primary trip command: Controller → VTUR → TRPx trip circuits; emergency protection is provided by the separate VPRO path
Source: GEH-6421M Volume II, I/O Overview page 5 and VTUR Primary Turbine Protection pages 403–414, distinguishes VTURH1B and VTURH2B and documents speed, synchronizing and trip interfaces.
FAQ

Questions Buyers Ask Most

What functions does IS200VTURH2BAC perform?+

IS200VTURH2BAC measures turbine speed with four passive pickups, supports generator automatic synchronizing, monitors shaft voltage and current, and processes flame inputs. It also passes controller-generated primary trip commands to the corresponding terminal-board trip circuits.

How many trip-solenoid interfaces does IS200VTURH2BAC support?+

IS200VTURH2BAC is the H2 configuration with 6 trip-solenoid interfaces through two TRPx terminal boards. GE identifies this as a two-slot arrangement; eight flame-detector inputs remain associated with the first TRPG.

What speed-input range is documented for IS200VTURH2BAC?+

IS200VTURH2BAC processes four passive pulse-rate speed inputs. GE specifies an MPU pulse-rate range of 2 Hz to 20 kHz and an accuracy of 0.05% of reading for the VTUR measurement path.

How does IS200VTURH2BAC use generator and bus PT signals?+

IS200VTURH2BAC monitors two single-phase PT inputs for automatic synchronizing. GE specifies nominal 115 Vrms PT signals, a synchronizing range of 75 to 130 Vrms, and phase-difference measurement better than one degree.

Do the final AC characters in IS200VTURH2BAC add flame or trip channels?+

IS200VTURH2BAC retains the H2B hardware form; A and C identify the PWA and PWB production versions under GE part-number conventions. They do not add channels: the H2 arrangement provides six trip-solenoid interfaces and eight flame inputs.

Other Available Revisions for the IS200VTURH2BAC+

IS200VTURH2BAC retains the H2B hardware form with PWA version A and PWB version C. The H1 variant uses one TRPx board for three trip-solenoid interfaces; match the installed slot and trip-terminal arrangement.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
IS200VTURH2BAC

Official manufacturer-manual PDF status for GE IS200VTURH2BAC.

Official manual PDF status

A direct GE-hosted instruction-manual PDF covering IS200VTURH2BAC was not confirmed in the public manufacturer library. For the applicable manual and product documentation, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

GEH-6421M Volume II, I/O Overview page 5 and VTUR Primary Turbine Protection pages 403–414, distinguishes VTURH1B and VTURH2B and documents speed, synchronizing and trip interfaces.

GE MARK VI SYSTEM RELATIONSHIP

How IS200VTURH2BAC Fits Mark VI

GE is the manufacturer brand; GE Mark VI is the product family; and IS200VTURH2BAC is the Primary Turbine Protection Board for Mark VI primary turbine protection and generator synchronizing.

GE · BRAND
GE Mark VIPrimary Turbine Protection Board
SYSTEM ROLE

Primary Turbine Protection Board

Transfers speed measurements and primary trip commands between the controller and the turbine terminal-board interfaces.

SIGNAL INTERFACES

Speed · PT · Shaft · Flame signals

Four passive speed pickups, generator/bus PT measurements, shaft measurements and eight flame inputs support the configured VTUR protection functions.

PRIMARY TURBINE PROTECTION

IS200VTURH2BAC · Primary Turbine Protection Board

VTUR works with TTUR measurements and the corresponding two-board TRPx trip arrangement for 6 trip-solenoid interfaces.

System relationship: VTUR links Mark VI controller primary-protection commands to the installed turbine trip and synchronizing terminal circuits.
APPLICATION AREAS

Application map for IS200VTURH2BAC

Turbine Speed AcquisitionMeasure pulse-rate signals used by the primary protection controller
Primary Trip InterfacePass the controller trip commands to the configured TRPx trip circuits
MARK VI PRIMARY PROTECTION IS200VTURH2BAC IS200VTURH2BAC · Primary Turbine Protection Board
Generator SynchronizingMeasure generator and bus PT signals for automatic synchronizing
Shaft and Flame MonitoringMonitor shaft voltage/current and the configured flame-detector inputs
