GE MARK VIE · TTURH1C PRIMARY TURBINE PROTECTION

IS200TTURH1CFD

IS200TTURH1CFD is a GE TTURH1C primary turbine protection terminal board for the Mark VIe PTUR interface. It terminates turbine speed, generator and bus voltage, shaft-monitoring and generator-breaker signals in simplex or TMR arrangements.

PRODUCT TYPEPRIMARY TURBINE PROTECTION TERMINAL BOARD
PLATFORMMark VIe
SPEED INPUTS12 passive inputs
PULSE RANGE2 Hz–20 kHz
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Inquire Now
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

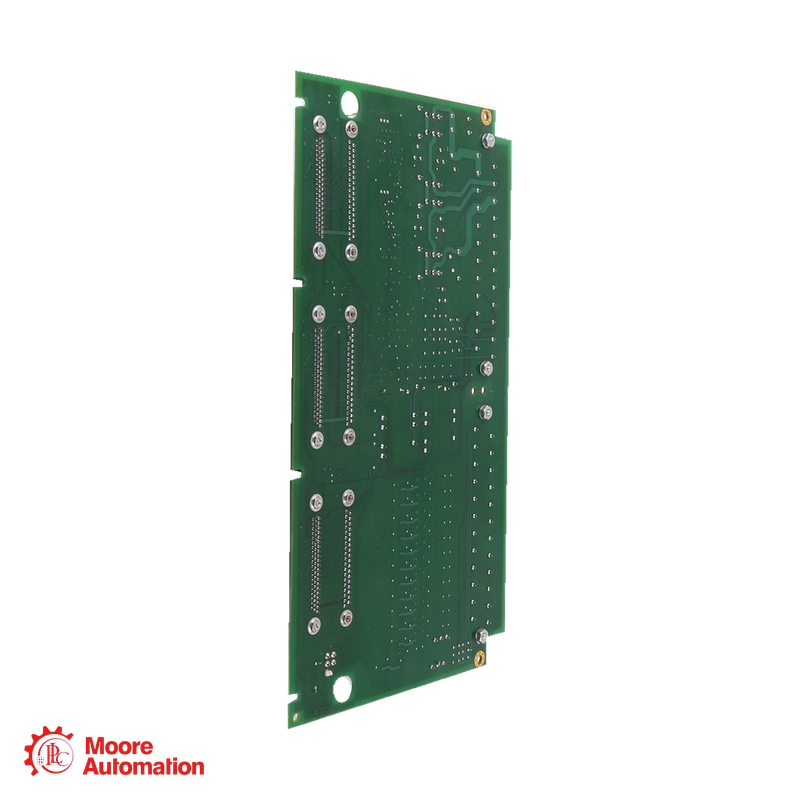

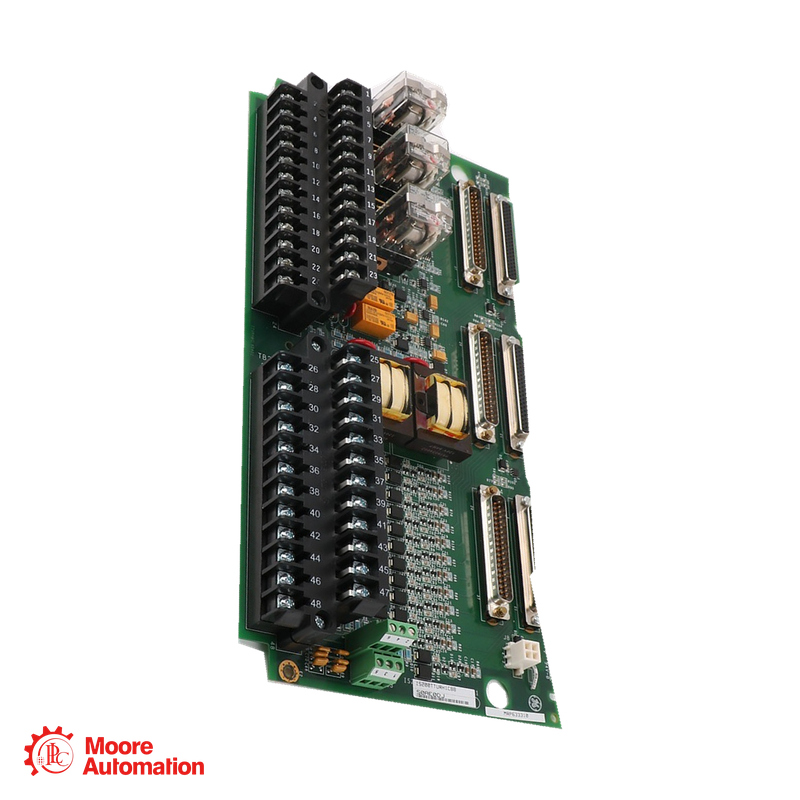

GE ● PRIMARY TURBINE PROTECTION TERMINAL BOARD
MARK VIE

IS200TTURH1CFD

PRIMARY TURBINE PROTECTION TERMINAL BOARD

MARK VIE · TTURH1C · PTUR INTERFACE

MODULE ROLE
IS200TTURH1CFD is the TTURH1C terminal interface for PTUR turbine I/O packs. Its field connections support speed measurement, shaft monitoring and generator synchronization signals.
LONG DESCRIPTION
IS200TTURH1CFD provides twelve passive speed-pickup connections arranged as four inputs per PTUR in TMR operation. The board also terminates generator and bus potential-transformer signals, shaft voltage and current inputs, and generator-breaker feedback. Three synchronizing relays, K25, K25P and K25A, form part of the main-breaker close permissive path.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the IS200TTURH1CFD Reference Is Structured

IS
Issuing organizationGE Power · Salem, Virginia
2
Material designationNon-RoHS part-number designation
00
Assembly levelPrinted circuit board assembly
TTUR
Board designationTurbine terminal board
H
Technology codeContains surface-mount components
1
Assembly variantAssembly variant 1
C
Functional versionBackward-compatibility version C
F
PWA versionProduction assembly version F
D
PWB versionPrinted wiring board version D
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Mark VIe ↗
IS200TTURH1CFD PRIMARY TURBINE PROTECTION TERMINAL BOARD

Engineering data at a glance

Click “+” to expand more specifications.

SPEED INPUTS12 passive inputs
PULSE RANGE2 Hz–20 kHz
PTUR PACKS1 simplex / 3 TMR
AMBIENT−30°C to +65°C
TTURH1C interface and signal values from GEI-100575F.
Configuration note IS200TTURH1CFD uses the H1C turbine-terminal arrangement. Simplex operation uses one PTUR with up to four speed inputs; TMR uses three PTUR paths, each with four inputs. JP1 and JP2 select the documented relay-driver arrangement.
GENERAL INFORMATION −
BrandGE
Part numberIS200TTURH1CFD
Product typePrimary Turbine Protection Terminal Board
Speed-pickup connections12 passive inputs in TMR; four per PTUR
I/O interfacePTUR turbine I/O packs
MPU pulse-rate range2 Hz to 20 kHz
PTUR SYSTEM INTERFACE ＋
Control platformGE Mark VIe
PTUR arrangementOne pack for simplex; three for TMR
PTUR pack connectorsPR3, PS3 and PT3
TURBINE SIGNAL CONNECTIONS ＋
Speed signalsTwelve passive magnetic-pickup connections
Potential-transformer signalsGenerator and bus voltage
Shaft voltageOne shaft-voltage measurement path
Shaft currentOne shaft-current measurement path
Breaker interface52G status and synchronizing permissives
AMBIENT TEMPERATURE ＋
Operating ambient: −30°C to +65°C
Source: GEI-100575F, TTURH1C Primary Turbine Protection Input, pages 33–38, describes its signals, PTUR connections, speed-input range and ambient rating. GEH-6721Q Volume II distinguishes H1C from H2C.
FAQ

Questions Buyers Ask Most

What does IS200TTURH1CFD connect in a Mark VIe system?＋

IS200TTURH1CFD is the TTURH1C field interface for PTUR I/O packs. It terminates turbine speed, generator and bus voltage, shaft voltage and current, and generator-breaker signals.

How are speed inputs arranged on IS200TTURH1CFD?＋

IS200TTURH1CFD has twelve passive speed-pickup connections for TMR, divided into four inputs for each PTUR path. A simplex arrangement uses one PTUR with up to four speed inputs.

What pulse-rate range is documented for IS200TTURH1CFD?＋

IS200TTURH1CFD uses the TTURH1C magnetic-pickup interface documented from 2 Hz to 20 kHz. The pickup wiring and the associated PTUR configuration determine the active measurement paths.

Which relays provide synchronizing permissives on IS200TTURH1CFD?＋

IS200TTURH1CFD includes K25, K25P and K25A in the generator-breaker close permissive path. All three must satisfy the documented close conditions; they perform separate synchronization and permissive roles.

How is simplex or TMR operation selected for IS200TTURH1CFD?＋

IS200TTURH1CFD uses the documented PTUR pack connections and JP1 / JP2 relay-driver settings. Simplex uses PR3 and JR4, while TMR uses all three PTUR and trip-board connector paths.

Other Available Revisions for the IS200TTURH1CFD＋

IS200TTURH1CFD has the complete H1CFD identity. GE distinguishes TTURH2C by its altered internal power distribution and states that H2C is not interchangeable with H1C; no unverified suffix substitution is offered here.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
IS200TTURH1CFD

Official manufacturer-manual PDF status for GE IS200TTURH1CFD.

Official manual PDF status

A direct GE-hosted instruction-manual PDF covering IS200TTURH1CFD was not confirmed in the public manufacturer library. For the applicable manual and product documentation, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

GEI-100575F, TTURH1C Primary Turbine Protection Input, pages 33–38, describes its signals, PTUR connections, speed-input range and ambient rating. GEH-6721Q Volume II distinguishes H1C from H2C.

GE MARK VIE SYSTEM RELATIONSHIP

How IS200TTURH1CFD Fits Mark VIe

GE is the manufacturer brand; GE Mark VIe is the product family; and IS200TTURH1CFD is the Primary Turbine Protection Terminal Board for the PTUR primary turbine protection interface.

GE · BRAND
GE Mark VIePrimary Turbine Protection Terminal Board
SYSTEM ROLE

Primary Turbine Protection Terminal Board

Terminates the turbine, shaft and synchronizing field signals used by the PTUR packs.

SIGNAL INTERFACES

Speed · PT voltages · Shaft signals

Speed-pickup, generator and bus potential-transformer, shaft-voltage and shaft-current connections are brought to the terminal board.

PTUR CONNECTIONS

IS200TTURH1CFD · Primary Turbine Protection Terminal Board

One PTUR pack serves simplex operation, while three PTUR paths provide the documented TMR arrangement.

System relationship: TTURH1C forms the field-terminal interface for PTUR primary turbine protection and generator synchronizing.
APPLICATION AREAS

Application map for IS200TTURH1CFD

Turbine Speed SensingTerminate passive speed-pickup signals for the PTUR interface
Generator SynchronizingRoute generator and bus voltage signals with breaker permissives
MARK VIE TURBINE INTERFACE IS200TTURH1CFD IS200TTURH1CFD · Primary Turbine Protection Terminal Board
Shaft MonitoringConnect shaft-voltage and shaft-current measurement signals
Primary Protection I/OInterface PTUR paths and the associated trip-board connections
