GE IS200TRLYS1BGG Mark VIeS Relay Output Terminal Board

GE MARK VIES · RELAY OUTPUT WITH COIL SENSING

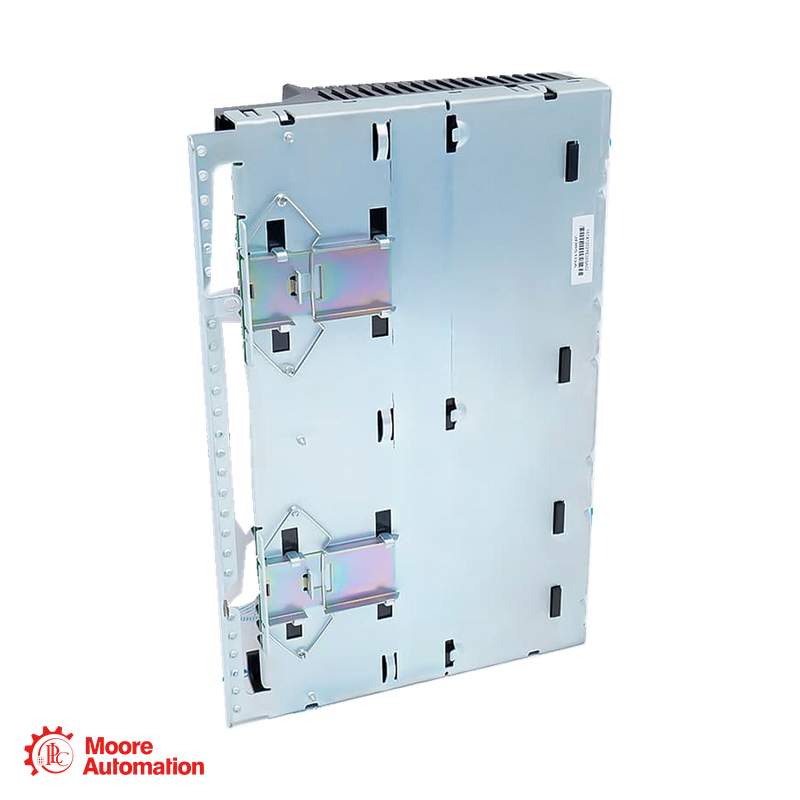

IS200TRLYS1BGG

IS200TRLYS1BGG is a GE relay output terminal board for the Mark VIeS YDOA interface. The TRLYS1B design has twelve magnetic relays with Form-C contacts, including six circuits configurable for field-solenoid power.

PRODUCT TYPERELAY OUTPUT TERMINAL BOARD

PLATFORMMark VIeS

RELAY OUTPUTS12 channels

CONTACT FORMForm C

MANUFACTURERGE

CONDITION / WARRANTYOriginal New · One-Year Warranty

ISO CERTIFICATIONISO-Certified Product

VERIFICATION● Product photos and videos provided after inquiry

REQUEST A QUOTE

✉ EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

GE ● RELAY OUTPUT TERMINAL BOARD

MARK VIES

IS200TRLYS1BGG

RELAY OUTPUT TERMINAL BOARD

MARK VIES · TRLYS1B · RELAY OUTPUT

MODULE ROLE

IS200TRLYS1BGG is the TRLYS1B relay-output terminal board with coil sensing for Mark VIeS control. It connects field relay wiring to the YDOA I/O pack in simplex or triple modular redundant arrangements.

LONG DESCRIPTION

IS200TRLYS1BGG provides twelve plug-in magnetic relay circuits. Outputs 1–6 can use dry contacts or configured solenoid power; outputs 7–11 provide isolated dry contacts, while output 12 serves a separate special-purpose circuit. The YDOA connection uses DC-37 connectors, with JA1 for simplex and JR1, JS1 and JT1 for TMR operation.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

ORDER NUMBER BREAKDOWN

How the IS200TRLYS1BGG Reference Is Structured

Issuing organizationGE Power · Salem, Virginia

Material designationNon-RoHS part-number designation

Assembly levelPrinted circuit board assembly

TRLY

Board designationRelay output terminal board

Technology codeFunctional safety system component

Assembly variantAssembly variant 1

Functional versionBackward-compatibility version B

PWA versionProduction assembly version G

PWB versionPrinted wiring board version G

MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Mark VIeS ↗

IS200TRLYS1BGG RELAY OUTPUT TERMINAL BOARD

Engineering data at a glance

Click “+” to expand more specifications.

RELAY OUTPUTS12 channels

CONTACT FORMForm C

SOLENOID CIRCUITS6 configurable

TERMINAL BLOCKS2 × 24 terminals

TRLYS1B relay and terminal configuration described in GE system documentation.

Configuration note IS200TRLYS1BGG uses the TRLYS1B coil-sensing arrangement. The first six outputs require the appropriate fuses and jumpers when configured for solenoid power; dry-contact and powered-output wiring are different configurations.

GENERAL INFORMATION −

BrandGE

Part numberIS200TRLYS1BGG

Product typeRelay Output Terminal Board

Relay outputs12 magnetic relay channels

Contact arrangementForm-C contacts

Configurable powered circuitsOutputs 1–6

YDOA I/O INTERFACE ＋

Control platformMark VIeS

Operating arrangementSimplex or TMR

I/O pack connectorDC-37

RELAY OUTPUT CONFIGURATION ＋

Outputs 1–6Dry contacts or field-solenoid power

Outputs 7–11Isolated dry contacts

Output 12Separate special-purpose relay circuit

Field supply options24 / 125 Vdc or 115 / 230 Vac, by configuration

Diagnostic functionRelay coil sensing

FIELD TERMINATION ＋

Terminal wiring: Two 24-terminal blocks; conductors up to #12 AWG

Source: GEH-6855 Volume II, TRLYS1B Relay Output with Coil Sensing, describes the board function, relay arrangement, YDOA interface and field terminations. GEH-6855 Volume I defines the identifier fields.

FAQ

Questions Buyers Ask Most

What does IS200TRLYS1BGG do in a Mark VIeS system?＋

IS200TRLYS1BGG connects the YDOA discrete-output interface to twelve relay circuits. Its TRLYS1B design provides coil sensing and Form-C contacts, with output wiring selected for the installed application.

How are the first six outputs on IS200TRLYS1BGG configured?＋

IS200TRLYS1BGG provides six relay circuits that can operate as dry contacts or supply field solenoids. Powered operation requires the corresponding supply, fuses and jumpers; the remaining outputs have separate circuit roles.

Which redundancy arrangements can use IS200TRLYS1BGG?＋

IS200TRLYS1BGG supports simplex and TMR arrangements with the documented YDOA interface. Simplex uses JA1, while TMR uses JR1, JS1 and JT1; the selected pack and system configuration must agree.

What field terminals are provided on IS200TRLYS1BGG?＋

IS200TRLYS1BGG has two terminal blocks with twenty-four terminals each. GE specifies conductors up to #12 AWG, with the adjacent grounded shield strip used for the field-cable shields.

Does IS200TRLYS1BGG use the same sensing method as a TRLYH1C?＋

IS200TRLYS1BGG is the TRLYS1B coil-sensing design. TRLYH1C is a contact-sensing design, so their diagnostic arrangements must not be treated as the same function when choosing replacement hardware.

Other Available Revisions for the IS200TRLYS1BGG＋

IS200TRLYS1BGG carries the complete S1BGG identity. Other TRLY hardware forms implement different output or diagnostic arrangements; no separate revision is identified here as an approved interchangeable replacement.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Product Information for
IS200TRLYS1BGG

Official manufacturer-manual PDF status for GE IS200TRLYS1BGG.

Official manual PDF status

A direct GE-hosted instruction-manual PDF covering IS200TRLYS1BGG was not confirmed in the public manufacturer library. For the applicable manual and product documentation, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

GEH-6855 Volume II, TRLYS1B Relay Output with Coil Sensing, describes the board function, relay arrangement, YDOA interface and field terminations. GEH-6855 Volume I defines the identifier fields.

GE MARK VIES SYSTEM RELATIONSHIP

How IS200TRLYS1BGG Fits Mark VIeS

GE is the manufacturer brand; GE Mark VIeS is the product family; and IS200TRLYS1BGG is the Relay Output Terminal Board for the YDOA discrete-output interface.

GE · BRAND

GE Mark VIeSRelay Output Terminal Board

SYSTEM ROLE

Relay Output Terminal Board

Terminates twelve relay outputs and supplies relay-coil diagnostic feedback to the YDOA interface.

SIGNAL INTERFACES

Relay contacts · Solenoid circuits

Twelve magnetic relays provide Form-C contacts, with configurable field-solenoid power on the first six circuits.

YDOA INTERFACE

IS200TRLYS1BGG · Relay Output Terminal Board

The TRLYS1B interface uses one YDOA pack path for simplex or three paths for TMR operation.

System relationship: TRLYS1B links the YDOA pack connections to the application field-relay circuits.

APPLICATION AREAS

Application map for IS200TRLYS1BGG

Discrete Output SwitchingSwitch field circuits through twelve magnetic relays

Solenoid InterfacesConfigure the first six relay circuits for field-solenoid power

MARK VIES RELAY OUTPUT IS200TRLYS1BGG IS200TRLYS1BGG · Relay Output Terminal Board

TMR Output SystemsConnect three YDOA paths through JR1, JS1 and JT1

Relay DiagnosticsReturn coil-sensing feedback through the YDOA interface
