GE | IS200EMCSG1AA | Conduction Sensor Card

Product Description：

The IS200EMCSG1AAB is a component for the Mark VI series. The Mark VI is part of the Speedtronic line of gas/steam turbine management systems developed by General Electric.  The Speedtronic line has been used for turbine management since the first Mark I system was released in the late 1960s. The Mark VI includes Ethernet communications, a PC-based operator interface, and pre-loaded software that has been specifically designed for turbine control.

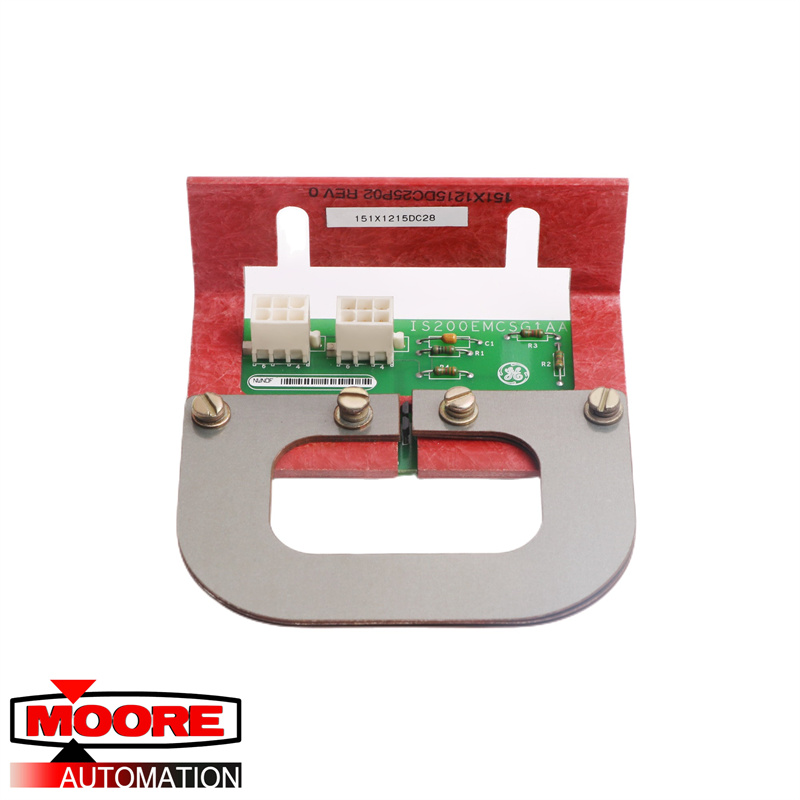

The IS200EMCSG1AAB is a small board with few components.  It functions as a Conduction Sensor and has four conduction sensors built into the front half of the board.  These components are labeled E1 to E4. The board has been drilled in two corners (bottom left and top right.) The board is marked with several codes and pieces of information, including the board ID number, the manufacturer’s logo, and the codes CCTC, 94V0, E99006, 0211, and Type5.   Other components on the board include two sensor circuits (U1 and U2,) and two power supplies. These power supplies are 2 by 3 plugs. The board also includes a single ceramic capacitor and four metal film resistors.
