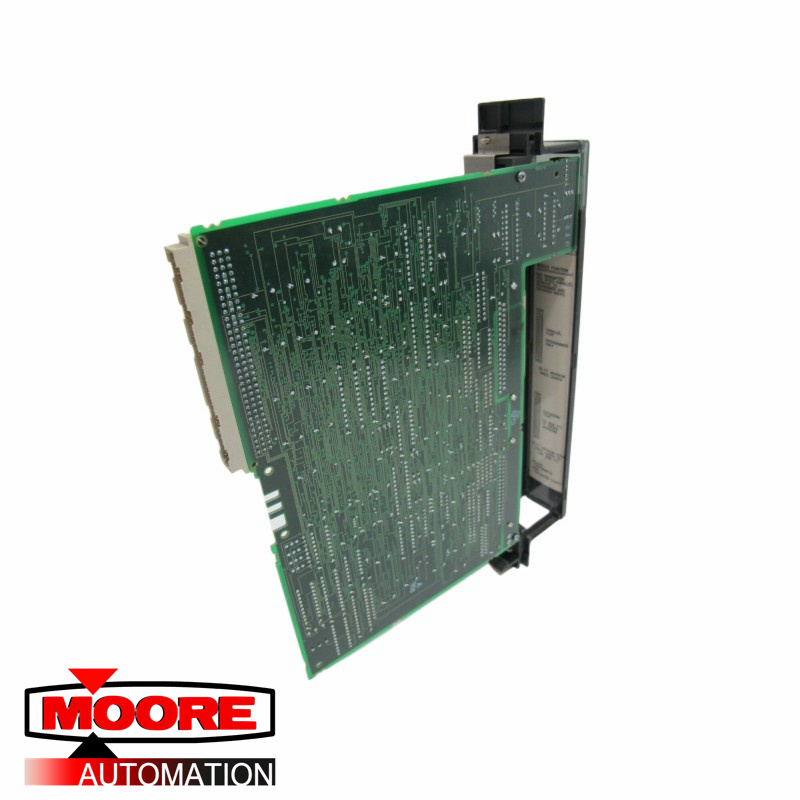

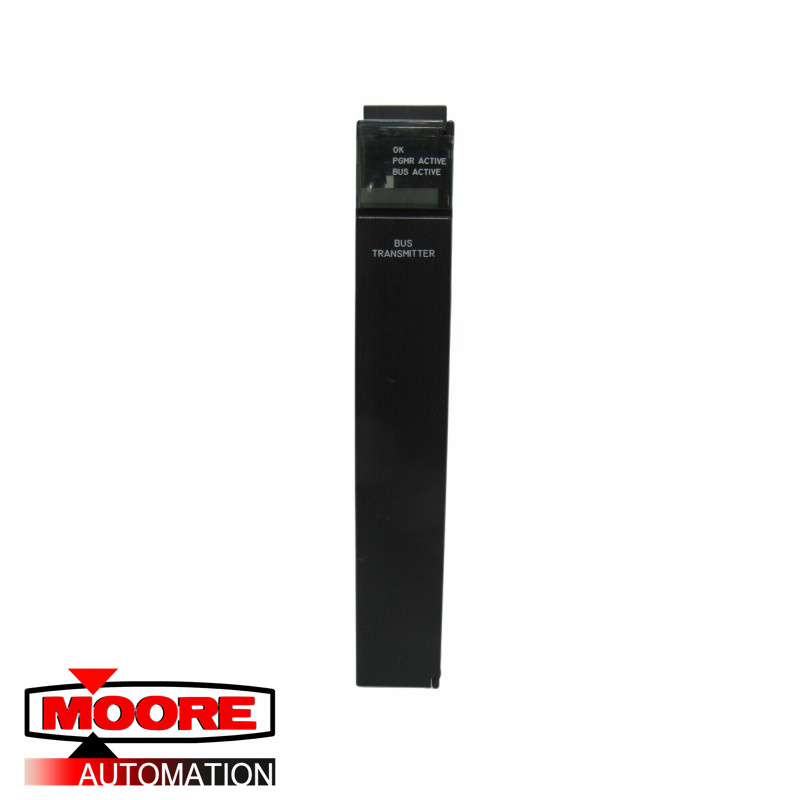

GE IC697BEM713G BUS TRANSMITTER-EXPANSION BOARD

IC698RMX016-ED

General Electric Redundant Memory
-------------------------------------------------------------

-------------------------------------------------------------

Description:

The Series 90-70 module with catalog number IC697BEM713 is a Bus Transmitter module. This module is used to the local bus where the Centra Processing Unit (CPU) is installed, allowing additional I/O and option modules to be installed to the system. This bus transmitter module is capable of handling up to Seven (7) Bus receiver Modules with catalog number IC697BEM711.

When implementing Local Bus expansion, the maximum distance from the IC697BEM713 Bus Transmitter Module (BEM) to the last IC697BEM711 Bus Receiver Module (BRM) must not exceed 50 ft. Additionally, the last BRM must be installed with a terminating resistor with catalog number IC697ACC702, to close the daisy-chain network. This terminating resistor is attached to the Expansion Port Out of the last BRM.

The IC697BEM713 comes with One (1) Parallel Port used for programming and configuration functions and One (1) Expansion port that connects to the 1st BRM of the network. The appropriate programming software to configure settings and download configuration to the IC697BEM713 are the MS-DOS or Windows programming software configuration function.

The IC697BEM713 occupies a single slot of the chassis, specifically, installed to the to any slot except slot 1 which is reserved for the Series 90-30 CPU. This module has a current draw of 1.4 A, effective data rate of 500 Kbytes / sec and duration to store 16Kbyte program is 20-30 Seconds. This module is designed in compatibility with ME standard C.1. Compatible expansion cables for use with this transmitter module are IC600WD005A (5 ft. (1.5m) cable; IC600WD010A (10 ft. (3m) cable; IC600WD025A (25 ft. (7.5m) cable and IC600WD050A (50 ft. (15m) cable.
