Brand :
GEPart Number :
IC695PNS001Weight :
0.45KGDimension :
1.5 x 0.55 x 1.2cmCountry of Origin :
USAHS Code :
8537101190Description :
PACSystems™ RX3i PROFINET Scanner module|
PRODUCT NAME: |

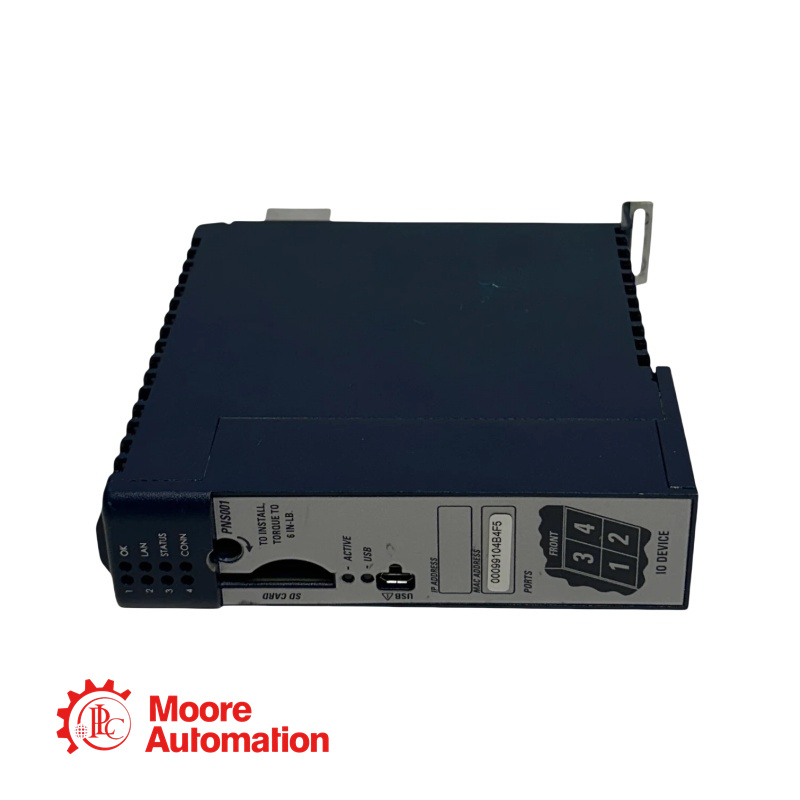

GE IC695PNS001 PACSystems™ RX3i PROFINET Scanner module |
|
Describtion: |
|
The PACSystems* RX3i PROFINET Scanner (PNS) module, IC695PNS001, connects a remote universal RX3i I/O rack of Series 90-30 or RX3i modules to a PROFINET IO Controller. The PROFINET Scanner scans the modules in its rack,retrieving input data and providing output data, and exchanges that data on the PROFINET IO LAN at the configured production rate. |
|
CONTACT: |
John Yang |
|
Details: |
|
Backplane Current 850mA @ 5V DC
Operating Temp 0°C to 60°C
Humidity 5-95% non-condensing
Dimensions 150 x 55 x 120mm
Weight 0.45kg
Ports 2x RJ45 (auto-sensing, auto-MDI/MDIX)
Max Devices 128 nodes
|
|
Email: |
|
Our Supply: |
|
1 year warranty Pay by bank transfer Order before 15.00 CET and we normally ship the same day |
|
Mobile(WhatsApp): |
|
We provide industry-leading parts for the manufacturing industry |
|
If you are interested, click here Email：sales3@askplc.com for a quick quote!!! |
|
