GE IC693CHS391 Base, CPU, 10 Slots, Use With CPU331

IC693CHS391

General Electric Base, CPU, 10 Slots, Use With CPU331
-------------------------------------------------------------

-------------------------------------------------------------

Description:

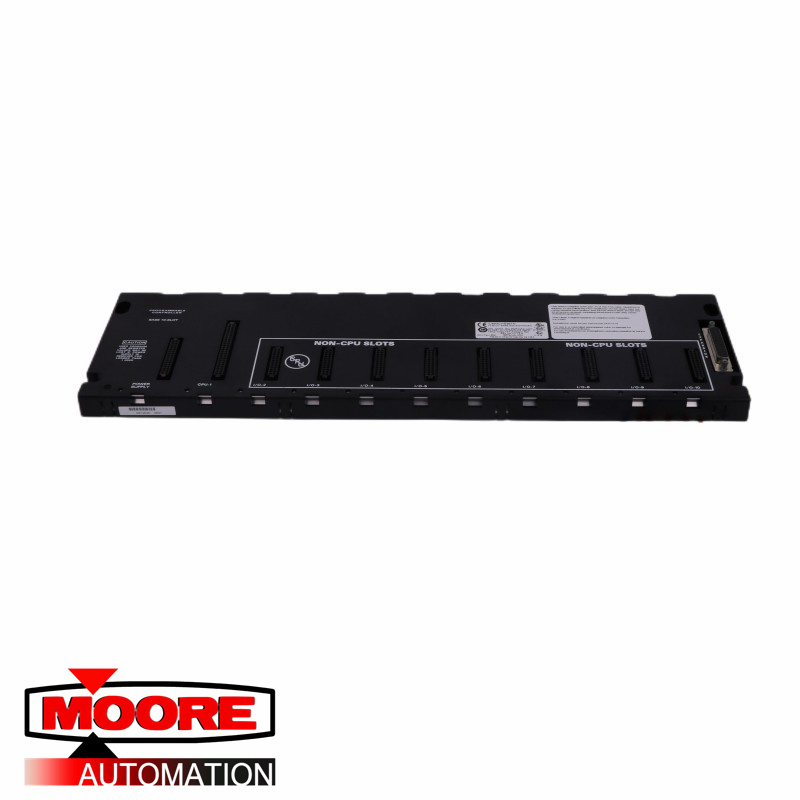

The IC693CHS391 is a Modular CPU baseplate. This baseplate is part of the Series 90-30 that is manufactured by GE Fanuc. This device houses the connection ports, allowing modular CPUs, I/O modules and Power supply module installation. It has a total of Ten (10) slots with One (1) slot assigned to the CPU and Nine (9) slots for the I/O modules. Power supply slot is not included in the slot count as well as the bus expansion port.

Since this is a modular CPU slot, it is by default assigned with a node address of 0 which can be modified through the programming software. Only One (1) modular CPU slot is supported by a system. Other slots in the system could be expansion or remote I/O baseplates.

Power supply is installed to the left most slot which is not included in the counting of slots, allowing more I/O to be supported by this baseplate. CPU is installed only the Slot 1 as this slot is especially sized for CPU connection or special option module such as the FIP Bus Remote I/O scanner. Slot number 2 and higher are particularly sized for I/O or option modules. Expansion or remote I/O basesplate are connected through the expansion port at the right most portion of the baseplate. Depending on the CPU hosted by the IC693CHS391, up to Four (4) or Seven (7) expansion baseplates are supported by the IC693CHS391 Modular CPU baseplate. This baseplate supports panel mounting only, fastened by screws and washers through the mounting holes provided.
