Product Overview

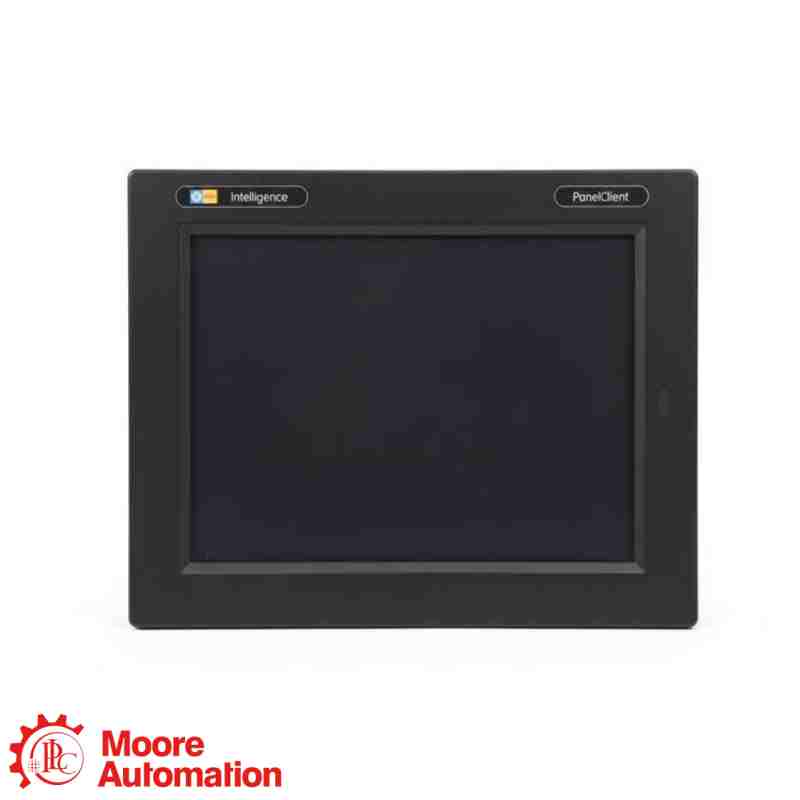

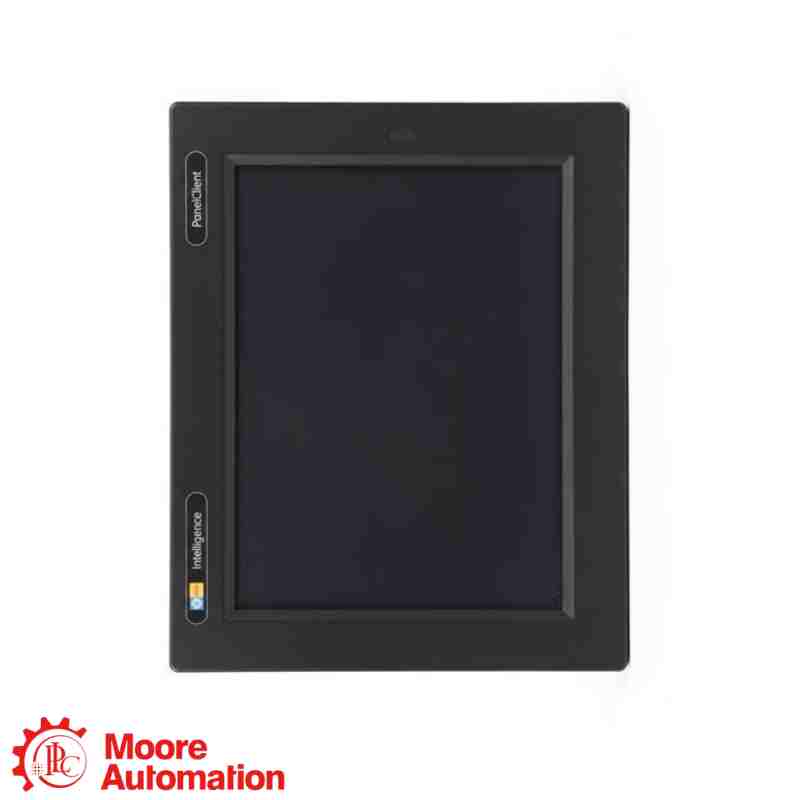

The GE Fanuc IC5005CAC0001 is a legacy 15-inch Intelligence PanelClient configuration associated with an iFIX Terminal Service license. It was developed for automation systems in which operators need access to centrally managed HMI or SCADA screens from a fixed panel-mounted station.In a typical installation, the PanelClient provides the local display and operator-interaction point, while the main iFIX application runs within the system’s server environment. The functions available at the panel depend on the installed client image, the licensed iFIX configuration, network settings, user permissions and the design of the original automation project.

Technical Specifications

Technical Item	Specification
Manufacturer	GE Fanuc Automation
Complete Catalog Number	IC5005CAC0001
Product Family	Intelligence PanelClient
Product Type	Industrial HMI client terminal
Cataloged Software Configuration	iFIX Terminal Service license
Display Size	15.1 inches diagonal
Display Technology	Color TFT flat-panel display
Native Resolution	XGA, 1024 × 768 pixels
Displayed Colors	64K
Display Brightness	400 cd/m²
Operator Input	Analog five-wire resistive touchscreen
Touchscreen Interface	Internally connected serial interface
Front Protection	NEMA 4/12 and IP65 when correctly installed

Features

-15-Inch Operator Display
-Touchscreen Interaction
-iFIX Terminal Service Configuration
-Panel-Mounted Construction
-Client-Oriented System Role
-Configuration-Specific Identification

Application Areas
Production-Line Monitoring: In discrete manufacturing environments, the PanelClient can serve as a local interface for viewing line status, machine conditions and production information configured in the HMI project.

Factory-Floor HMI Access: Installed close to production equipment, the panel can provide access to operating screens, equipment status and alarm information supplied by the iFIX application.

Legacy-System Replacement: The model is particularly relevant when an existing installation, spare-parts list or engineering drawing specifies IC5005CAC0001. Replacement suitability must be established from both the hardware and software configuration.

Brand	GE
Part number	IC5005CAC0001
Origin	USA
Description	Intelligence PanelClient
Shipping Port	Xiamen，China
Payment	T/T
Lead Time	In stock
Shipment	DHL,UPS,FEDEX,TNT,EMS,SF
Service	One-year warranty

Model Benefits

The product offers a number of benefits, including:
-Local Access to an iFIX Application
-Centralized Application Management
-Consistent Operator Presentation
-Continued Support for an Installed System
-Reduced Replacement Engineering

Frequently asked questions

1.What information should be backed up before replacing the unit?
Where accessible, preserve the system image, network settings, client connection settings, server address, node name, automatic-login configuration, user permissions and any locally stored application files. License information and recovery media should also be documented.

2.Which server-side details should be checked before commissioning a replacement?
Confirm the server hostname or IP address, iFIX version, Windows Server version, Terminal Services configuration, supported display resolution, user account, security permissions and available client-session licenses. Network segmentation and firewall rules should also be reviewed.

3.Can IC5005CAC0001 communicate directly with a PLC?
It should not be assumed to operate as a direct PLC interface. In its PanelClient role, the unit normally accesses an HMI application through the configured client/server environment.
