GE | DS3820PSCC1D1B | POWER SUPPLY

Product Description:

The DS3820PSCC1D1B is built by GE as a power supply unit for the Mark IV series.  The MKIV manages steam/gas turbine systems and is built using integrated microprocessors which use distributed control functions to take care of such things as start-up and shut down, speed control, and temperature control.  It also protects the turbine from issues like loss of flame, high pressure, and vibration.

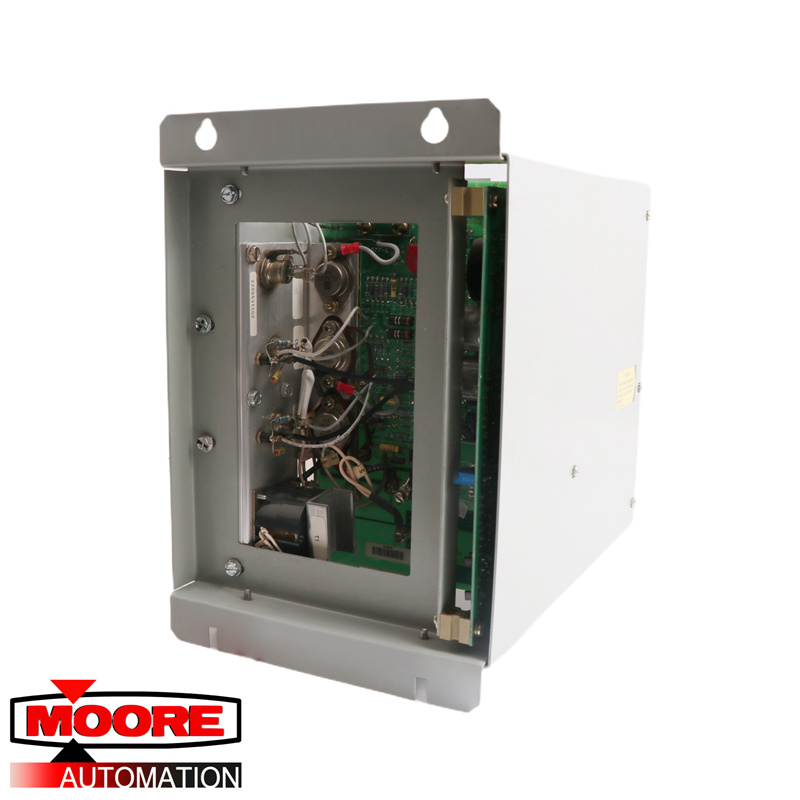

The DS3820PSCC1D1B is a modification of several DS3800 boards.  It is built within a housing with multiple openings. These openings serve two purposes: to give access to the components within the frame and to allow for air circulation and heat dissipation.  The frame is drilled at several points to allow for direct mounting of PCBs to the inside of the housing. This is accomplished using metal screws. In some cases, nylon spacers are employed to maintain an air gap between the PCB and the housing.  The housing has several flanges (some that bend inward and some outward) that have screw mounts and tabs cut out of the metal to allow for mounting to other modules.
