GE | DS3820AIQA1A1A | ANALOG I/O MOD

Product Description：

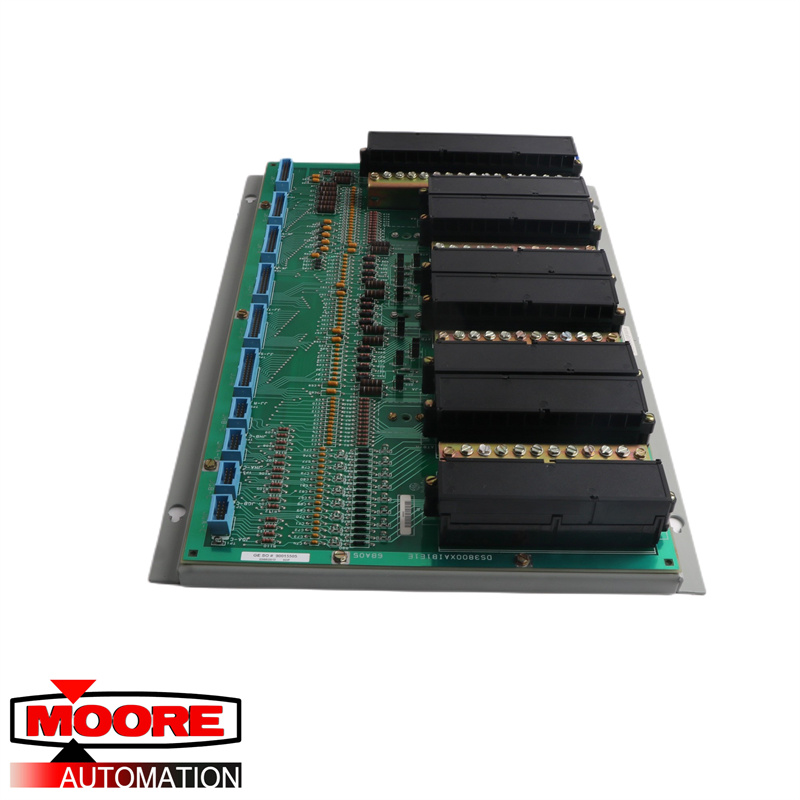

The DS3820AIQA1A1A is a part of General Electric’s Mark IV Speedtronic line. The DS3820AIQA1A1A has eight large black rectangles. The DS3820AIQA1A1A has four metal platforms in between the black rectangles. Three of the metal platforms has twelve metal screws on the top. The fourth metal platform has seventeen metal screws on the top. The DS3820AIQA1A1A can be installed using the two thin metal edges with two screw ports on either side. The DS3820AIQA1A1A has eleven small black half circles. These half circles are called transistors. A transistor is a semi-conductive device that helps to amplify or alter electrical power or electronic signals. The didoes direct energy by only allowing it to flow in one direction. The DS3820AIQA1A1A has thirty-two large bright red diodes, sixteen large bright yellow diodes, and sixty-five small teal blue diodes.  The DS3820AIQA1A1A has four small blue male connection terminals with ten metal pins in each terminal. The DS3820AIQA1A1A has six blue male connection terminals with twenty-six metal pins inside the terminal. These male connection terminals connect the DS3820AIQA1A1A with other circuit boards surrounding it. Resistors have multiple rings of several colors. The resistors can have up to five rings to help indicate how much energy it can restrict. The DS3820AIQA1A1A has sixty-five tiny light-colored resistors and sixteen large black resistors.
