GE | DS3800NDAC1D1E | ANALOG OUTPUT CARD

Product Description：

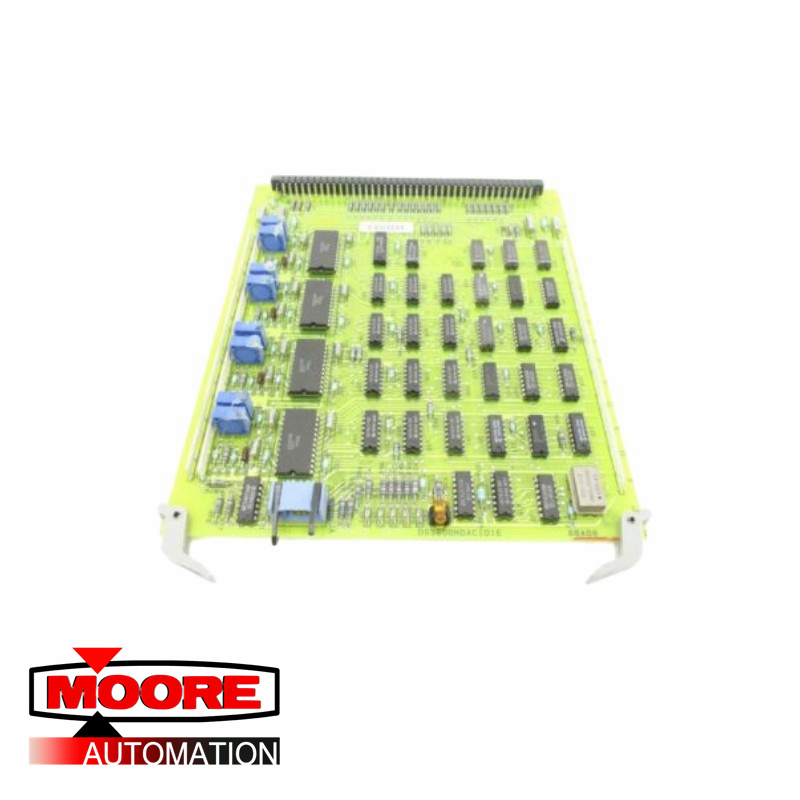

The DS3800NDAC1D1E is part of the Speedtronic Mark IV General Electric Turbine series. One edge is marked A, B, C, D, E, F, G, H, and J. The DS3800NDAC1D1E board is labeled. Each section has its own outline. The DS3800NDAC1D1E features General Electric’s insignia and where it was constructed (U.S.A.) printed beneath the General Electric insignia. The DS3800NDAC1D1E has eight Potentiometers also called Variable Resistors. Each variable resistor is independently adjustable from one another by a small piece on the top of each.  The DS3800NDAC1D1E has devices called EPROMs which come programmed but are able to be re-programmed as new programs become available.  The DS3800NDAC1D1E also has over ten EEPROMs. The EEPROMs come already filled with the program data for the DS3800NDAC1D1E to function. The DS3800NDAC1D1E has a pale yellow light or LED, which illuminates as a current passes through it. The DS3800NDAC1D1E has a single crystal oscillator. The crystal oscillator is used to create a precise frequency. The DS3800NDAC1D1E has seventy-four resistors with several color designs (to categorize current capacity).  The DS3800NDAC1D1E has one sandy diode, four red diodes, sixteen silvery diodes of mixed sizes, and thirty-six blue-green diodes. The DS3800NDAC1D1E has a plastic female port with forty spaces for tines and small male port with a small colored box with two snaps. The DS3800NDAC1D1E has three thin metal barriers. There are two points for screws and two fasteners that join the DS3800NDAC1D1E to the present system.
