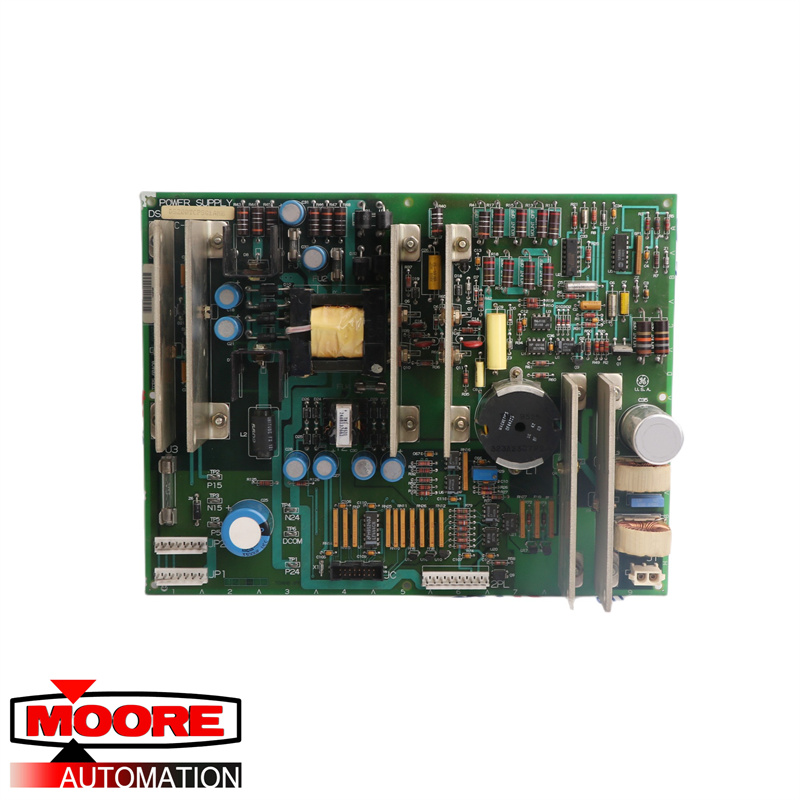

GE | DS200TCPSG1AME | POWER SUPPLY BARD

Product Description:

The DS200TCPSG1AME from General Electric functions as a power supply card for the company’s Mark V turbine control system.  The MKV is a Speedtronic system.  Like other Speedtronic systems (Mark I through Mark VIe) the Mark V is designed to offer industrial-level protection and control to gas and steam turbine systems.

The DS200TCPSG1AME lives within the <R> core of the Mark V system.  It converts TCPD 125 VDC power originating in the <PD> core to the voltages needed by other components and applications within the Mark V system.   This includes RTD power supply voltages, servo valve current outputs, and microprocessor power supply voltages.

The DS200TCPSG1AME  includes a number of connectors including the J1 connector that brings 125 VDC power into the TCPS board, as well as the 2PL, JC, JP1, and JP2 connectors that are used to distribute power supply voltages to boards like the TCQC, TCCA, and TCDA.   The DS200TCPSG1AME has no hardware or software configurations.
