GE | DS200RTBAG2A | RELAY TERMINAL BOARD

Product Description：

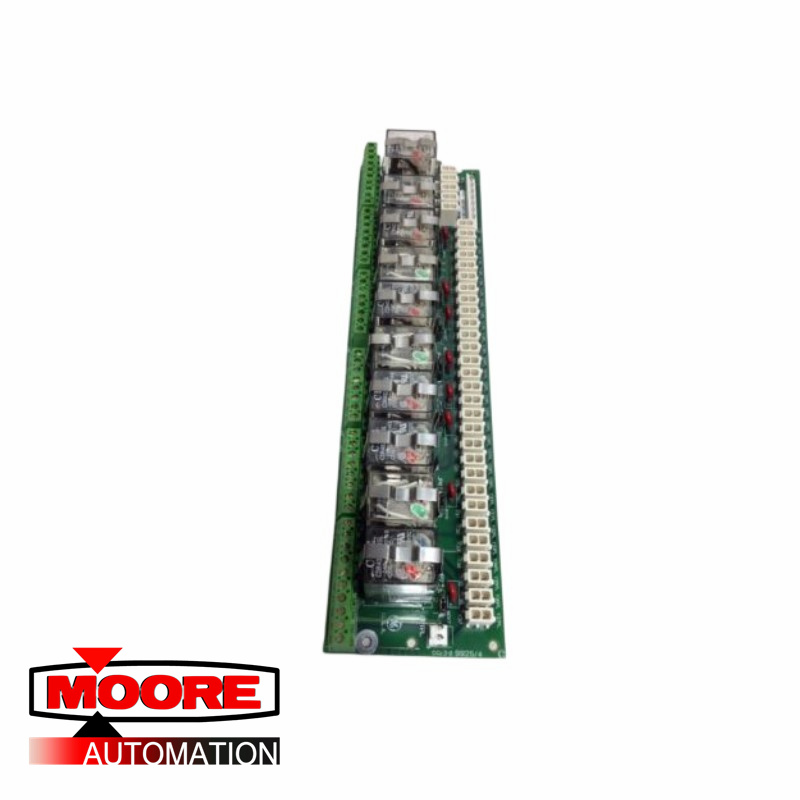

General Electric’s DS200RTBAG2A is a RTBA, or relay terminal board, designed for the Mark V board series. When installed, this board provides an additional ten relay spots to its installed host. This card can be installed in the cabinet of a wide variety of GE brand exciters and drivers. Both remote and LAN I/O terminal control is possible when using this RTBA board.

The ten relays found on the board are comprised of two types, DPDT and 4PDT. Seven DPDT type relays are found on the board, each containing two Form C contacts. Each contact on the relay registers a 10A charge. A 110 VDC coil is also found within each relay. In regards to placement on the board, each DPDT relay can be found between locations K20 and K26. The 4PDT relay types comprise the final three spots on the board. These types consist of four contacts within each relay. Contacts within these types feature a 1A charge. Each relay also contains a 110 VDC coil. All onboard relays are protected by a 130 VAC metal oxide varistor (MOV). Users can easily remove and replace relays as needed.

Installation parameters for both the drive and the board should be followed by users. These will ensure that both DS200RTBAG2A and the drive system operates as intended. To review a wiring and installation guide, please refer to the board’s manual and datasheet. Technical support for this board and the rest of the Mark V series was originally provided by the manufacturer, General Electric.
