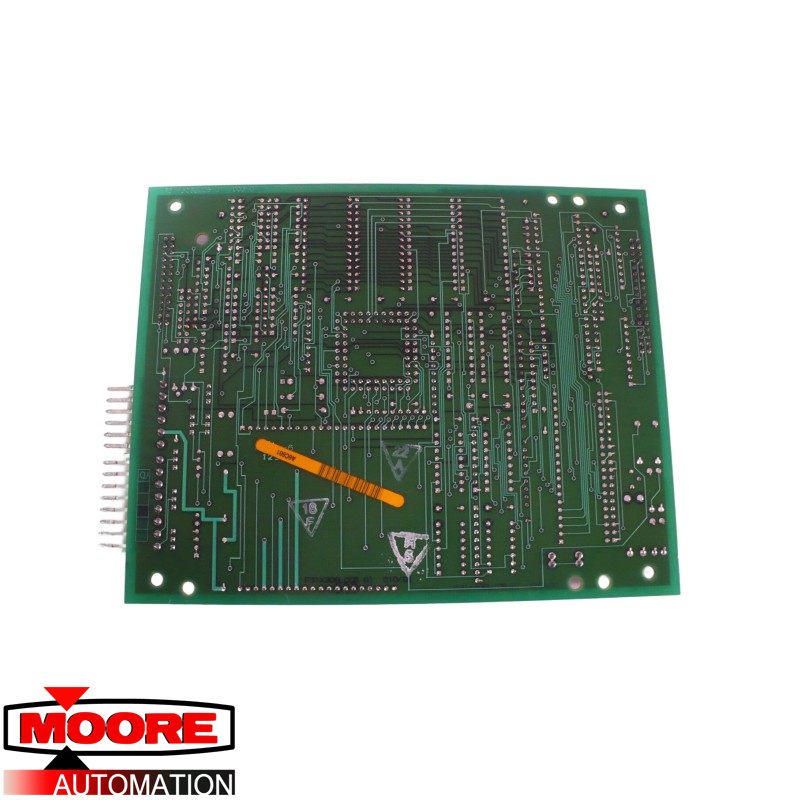

GE | 531X306LCCBFM1 | DRIVE DISPLAY CARD

The 531X306LCCBFM1 is a Drive Display card created by General Electric. The 531X306LCCBFM1 has a sixteen slot LED faceplate. Each slot can illuminate with its own number. The 531X306LCCBFM1 has multiple jumper pins that are allowed to open and close smaller circuits using the caps they come with. The 531X306LCCBFM1 uses multiple condensers also called capacitors in some manuals. These condensers create small electrical fields as an energy current. The electrical fields are then used to store energy for later use and the condensers don’t allow any energy to escape as it’s being held. The 531X306LCCBFM1 can also disperse energy if needed by sending it to the resistors. The resistors can then turn the energy into heat, so it can dissipate. The 531X306LCCBFM1 also uses a transistor to amplify certain signals for the circuit board and a crystal oscillator to create a precise frequency for the circuit board. The 531X306LCCBFM1 has two black encased male terminals and two white exposed male terminals used to connect with other circuit boards. The 531X306LCCBFM1 also has ten holes used to secure the circuit board into place as well as one edge line with the numbers one through five and another with the letters A, B, C, D, E, and F to make sure it is properly aligned in place. General Electric has published multiple manuals and data sheets on the 531X306LCCBFM1 to give a more in depth look to the inner working of the circuit board.
