DGSL-12-30-PA - FESTO Mini Slide

FESTO DGSL-12-30-PA Mini Slide

Sales Manager: Frida

Email: sales5@mooreplc.com

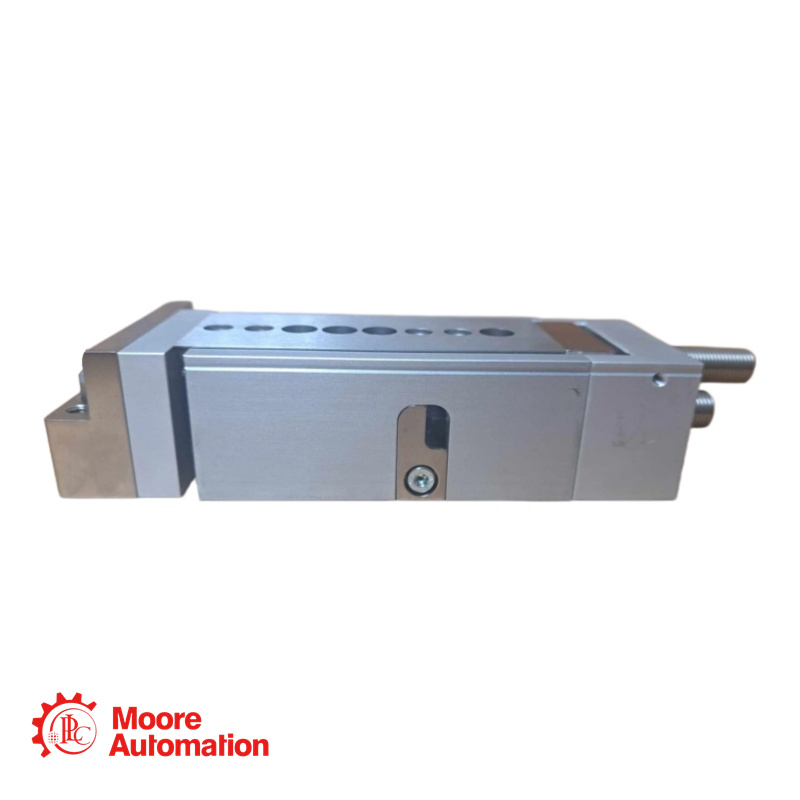

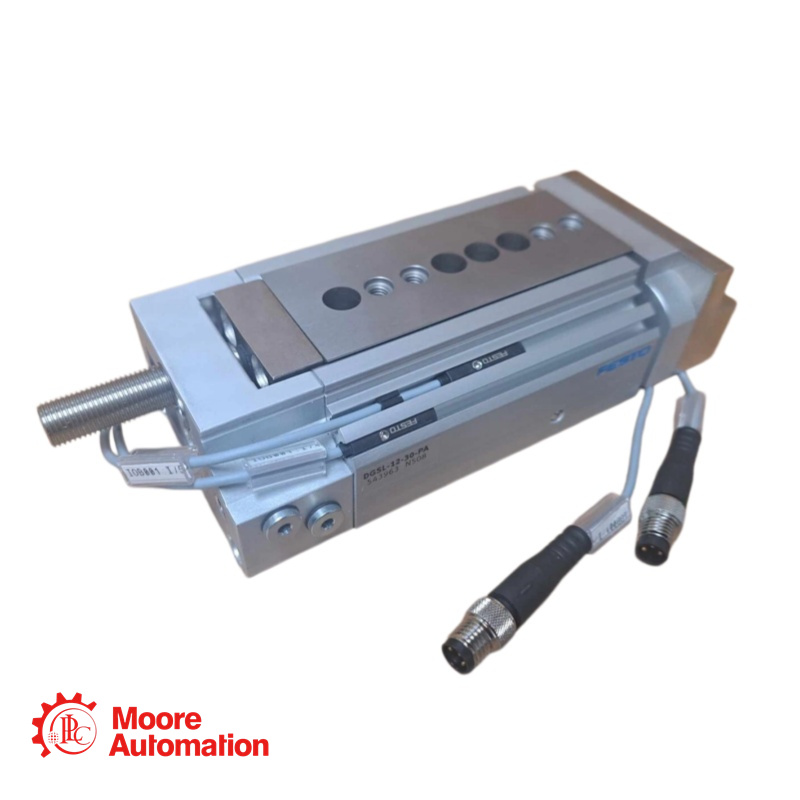

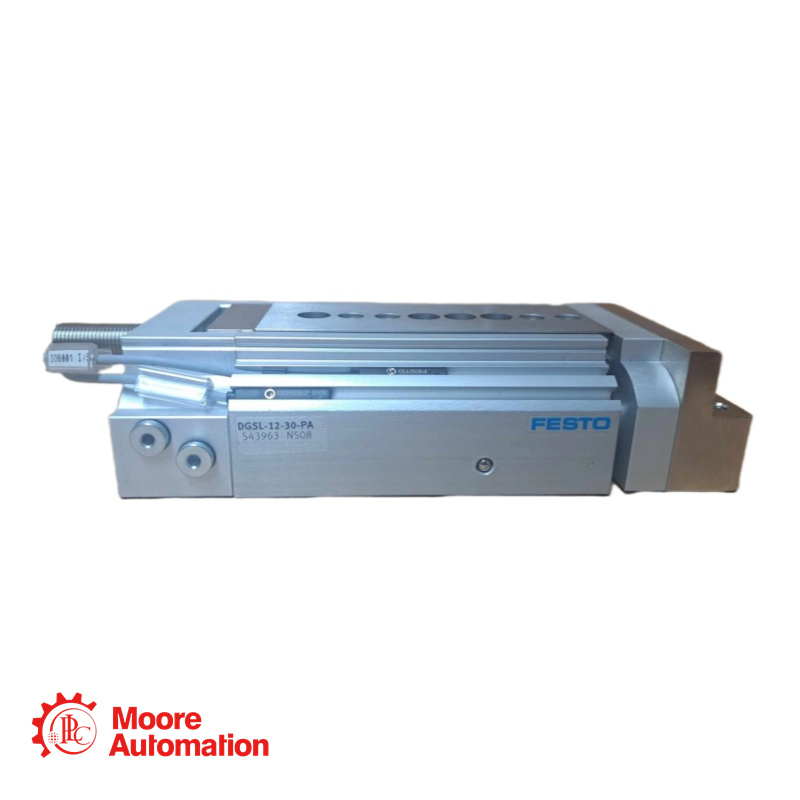

DGSL-12-30-PA is a double-acting single-ended mini-slide pneumatic linear actuator with ball bearing cage guide and elastic cushioning at both ends.

Stroke: 30 mm
Adjustable end position range/length front: 29 mm
Adjustable end position range/length rear: 25.5 mm
Piston diameter: 16 mm
Operating pressure: 0.1 MPa ... 0.8 MPa
Operating pressure: 1 bar ... 8 bar
Max. speed: 0.8 m/s
Repetition accuracy: 0.3 mm
Ambient temperature: 0 °C ... 60 °C

Q:What are the core specifications of this slide?
A: The DGSL-12-30-PA is a double-acting pneumatic mini slide. It has a size of 12 mm, a working stroke of 30 mm, and an actual piston diameter of 16 mm.

Q: What does the "PA" suffix at the end of the model code mean?
A: P stands for elastic cushioning rings/plates at both ends (no hard metal-to-metal impact). A means it has an integrated magnet for position sensing via proximity switches.

Q: What are the optimal operating pressure and speed for this slide?A: The operating pressure range is 1.0 to 8.0 bar (0.1 to 0.8 MPa). The maximum speed reaches up to 0.8 m/s. It offers high repetition accuracy down to ±0.01 mm.
