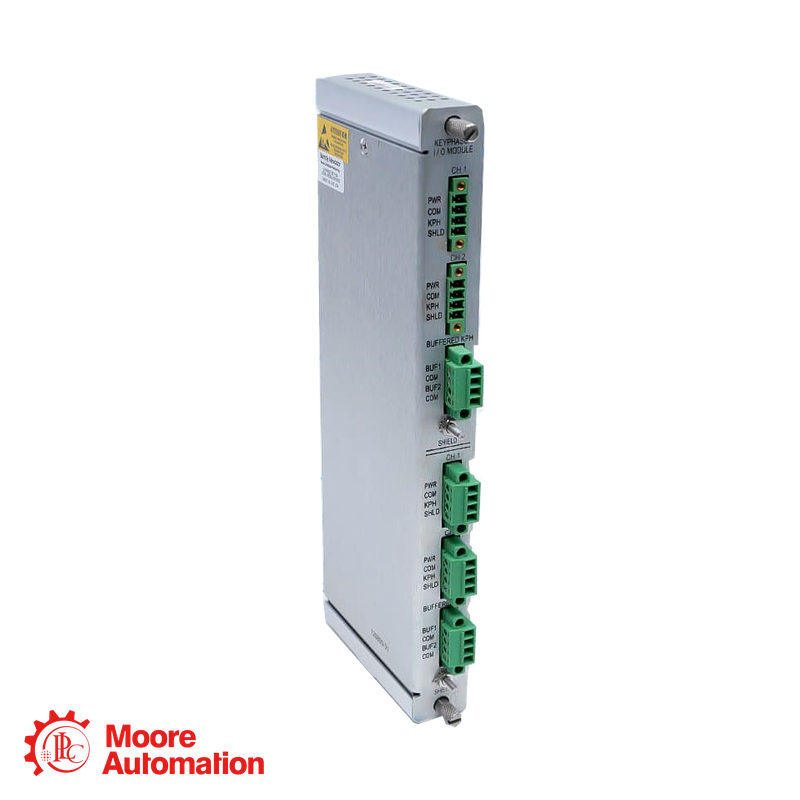

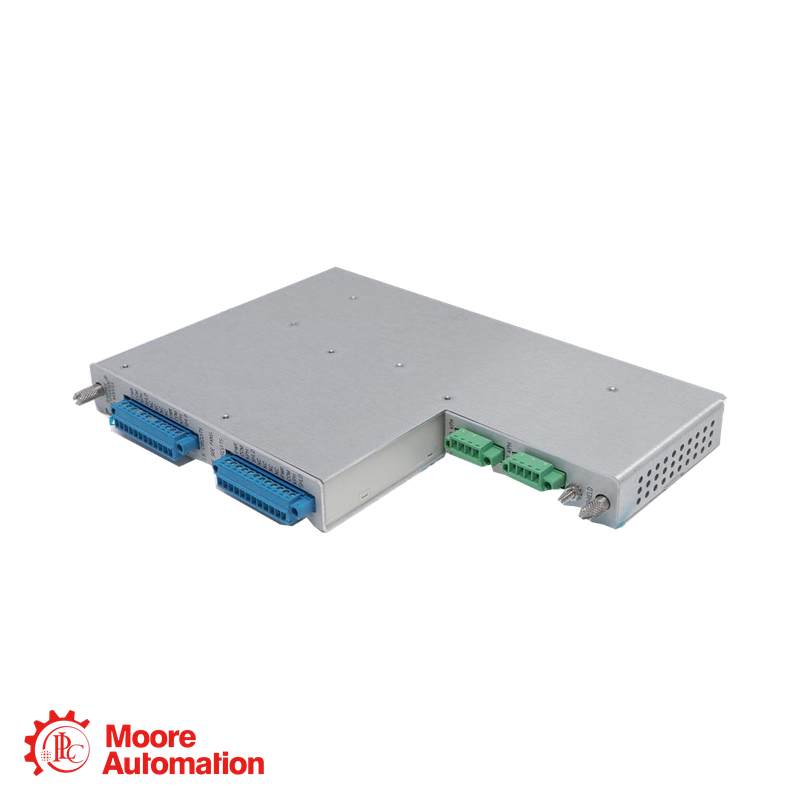

Bently Nevada 3500/25-02-03-RU Enhanced Keyphasor Module

3500 SYSTEM · ENHANCED KEYPHASOR

3500/25-02-03-RU

3500/25-02-03-RU — A Bently Nevada 3500/25 Enhanced Keyphasor Module configuration with two half-height two-channel cards, Internal Barrier I/O with internal terminations, and the RU hazardous-area approval option.

CHANNEL CAPACITY4 CHANNELS

CARD SET2 × HALF-HEIGHT

I/O MODULEINTERNAL BARRIER

APPROVALRU

MANUFACTURERBently Nevada · Baker Hughes

CONDITION / WARRANTYOriginal New · One-Year Warranty

ISO CERTIFICATIONISO-Certified Product

VERIFICATION● Product photos and videos provided after inquiry

REQUEST A QUOTE

✉ EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

BENTLY NEVADA ● 3500/25 ENHANCED KEYPHASOR MODULE

3500/25 ENHANCED KEYPHASOR MODULE

3500/25-02-03-RU

4 channels · Internal Barrier I/O · Internal terminations · RU approval

3500/25 Enhanced Keyphasor Module

3500 RACK TIMING REFERENCE

3500/25-02-03-RU — This Enhanced Keyphasor Module configuration converts proximity-probe or magnetic-pickup inputs into digital Keyphasor timing signals for monitor modules in a 3500 rack.

CONFIGURATION NOTE

3500/25 identifies the Enhanced Keyphasor Module; 02 selects two half-height 2-channel cards, 03 selects Internal Barrier I/O with internal terminations, and RU selects the Russia hazardous-area approval option.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

CONFIGURATION DECODING

Model code at a glance

3500/25

Product familyEnhanced Keyphasor Module

Channel optionTwo 2-channel cards · 4 channels

I/O module optionInternal Barrier I/O · Internal Terminations

Country approvalRussia hazardous area · EAC Ex

MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗

3500/25 ENHANCED KEYPHASOR MODULE

Engineering data at a glance

Click “+” to expand more specifications.

CHANNEL CAPACITY4 CHANNELS

CARD SET2 × HALF-HEIGHT

I/O MODULEINTERNAL BARRIER

APPROVALRU

Configuration from manufacturer ordering data.

Configured variant The 02 option supplies two half-height two-channel cards; 03 selects Internal Barrier I/O with internal terminations; RU selects the Russia hazardous-area approval option.

General Information −

BrandBently Nevada

Part number3500/25-02-03-RU

Product typeEnhanced Keyphasor Module

Product family3500 Machinery Protection System

Channel configurationTwo half-height 2-channel cards · 4 channels

I/O moduleInternal Barrier I/O with Internal Terminations

Input and I/O Configuration ＋

Card configurationTwo half-height 2-channel Keyphasor cards

Channel capacity4 Keyphasor input channels

I/O module typeInternal Barrier I/O with Internal Terminations

Signal and Rack Interface ＋

Input transducersProximity probes or magnetic pickups

Input frequency range1 to 1,200,000 cpm (0.017 to 20 kHz)

Buffered outputsTwo front coaxial and two rear Euro-style outputs per module

Transducer power-24 Vdc, 40 mA maximum per channel

Approval optionRU · Russia hazardous area · EAC Ex as applicable

3500 Rack Role ＋

Two 3500/25 half-height cards provide up to four Keyphasor input channels in a 3500 rack. Their digital timing signals route through the rack backplane to monitor modules for speed, phase, tracking-filter, and related measurements.

Source: Bently Nevada 3500/25 Enhanced Keyphasor Module Datasheet, Part Number 141532, Rev. Y, with country-option availability from Approvals Quick Reference Guide 108M1756, Rev. AV.

FAQ

Questions Buyers Ask Most

What input transducers are compatible with 3500/25-02-03-RU?＋

3500/25-02-03-RU accepts proximity-probe or magnetic-pickup inputs. Its 03 option uses Internal Barrier I/O with internal terminations, so the transducer, field wiring, and barrier configuration must match the rack design.

Which monitoring applications use 3500/25-02-03-RU?＋

3500/25-02-03-RU converts shaft event signals into digital Keyphasor timing references for rotational speed, 1X vibration amplitude, phase, and tracking-filter measurements by monitor modules in a 3500 rack.

How should 3500/25-02-03-RU be installed in a 3500 rack?＋

3500/25-02-03-RU uses two half-height 2-channel cards; each card occupies one half-height front slot, while its Internal Barrier I/O module occupies one full-height rear slot. Follow the applicable internal-barrier installation requirements.

What should be checked when commissioning 3500/25-02-03-RU?＋

When commissioning 3500/25-02-03-RU, verify transducer type, signal amplitude and threshold settings, the 1 to 1,200,000 cpm input range, channel status, and the front and rear buffered Keyphasor outputs.

What ordering data does 3500/25-02-03-RU define?＋

In 3500/25-02-03-RU, 02 orders two half-height 2-channel cards, 03 orders Internal Barrier I/O with internal terminations, and RU selects the available country-specific approval option. Confirm the end-user location and site approval requirements before ordering.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete 3500/25-02-03-RU label, input-transducer type, rack configuration and site approval requirement for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Manuals and Official References for
3500/25-02-03-RU

Official manufacturer documentation for the Bently Nevada 3500/25 Enhanced Keyphasor Module and the RU country-specific hazardous-area approval option.

Official manufacturer datasheet

Bently Nevada Datasheet 141532 identifies the 3500/25 Enhanced Keyphasor Module and its channel and I/O options. Baker Hughes Approval Guide 108M1756 lists RU for 3500/25 and defines it for Russia hazardous-area use with EAC Ex requirements as applicable.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

Technical statements and ordering-code meanings use Bently Nevada 3500/25 Enhanced Keyphasor Module Datasheet, Part Number 141532, Rev. Y, plus Approvals Quick Reference Guide 108M1756, Rev. AV, for the RU option.

3500 SYSTEM SIGNAL RELATIONSHIP

How 3500/25-02-03-RU Fits into the 3500 Machinery Protection System

Bently Nevada is the manufacturer. 3500/25-02-03-RU combines two half-height 2-channel Enhanced Keyphasor cards with Internal Barrier I/O and internal terminations. It provides up to four Keyphasor input channels in a 3500 rack.

Bently Nevada · BRAND

Bently Nevada 3500 SystemPRODUCT FAMILY · MACHINERY PROTECTION SYSTEM

TRANSDUCER INPUTS

Proximity or Magnetic Pickup

Each Keyphasor Module accepts up to two transducer signals from proximity probes or magnetic pickups.

I/O CONFIGURATION

Internal Barrier I/O

The 03 field selects Internal Barrier I/O with internal terminations.

CHANNEL CONFIGURATION

Four Input Channels

The 02 field selects two half-height 2-channel Keyphasor cards.

System relationship: Keyphasor timing signals route through the 3500 rack backplane to monitor modules for speed, phase, tracking-filter, and related measurements.

APPLICATION AREAS

Functions and application roles for 3500/25-02-03-RU

Shaft Timing ReferenceConverts once-per-turn or multiple-event-per-turn transducer inputs into digital Keyphasor timing signals.

Speed MeasurementProvides precise shaft timing used by 3500 monitor modules and external diagnostic equipment to measure rotational speed.

APPLICATION CENTER 3500/25-02-03-RU 3500 System Enhanced Keyphasor Module

Phase ReferenceSupports vector measurements including 1X vibration amplitude and phase.

Tracking-Filter TimingSupplies timing information used by monitor modules for tracking-filter and related measurements.
