AB 2711P-T6M20A PanelView Plus 600 Grayscale Terminal

2711P-T6M20A

Allen Bradley PanelView Plus 600 Grayscale Terminal

-------------------------------------------------------------

-------------------------------------------------------------

Product Description

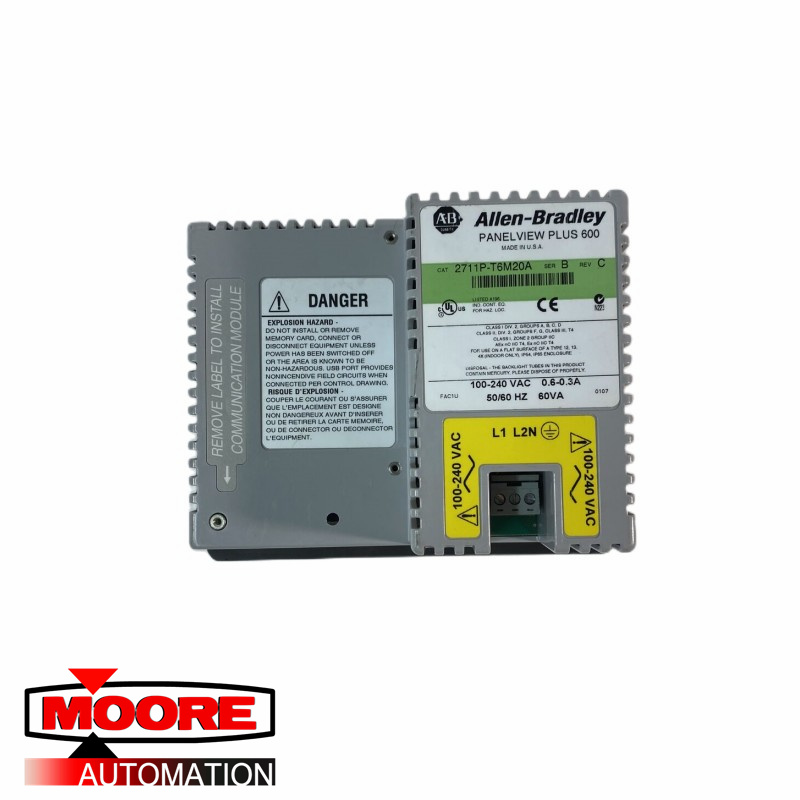

The 2711P-T6M20A terminal is a PanelView terminal from Allen-Bradley/Rockwell Automation. It supports a 5.5-inch touch-enabled grayscale display. For communication purposes, the 2711P-T6M20A terminal has an Ethernet, RS-232 port, and USB port. Note that the terminal is AC-powered. The terminal has a resolution of 320 x 240, a brightness of 440 Nits, and a white non-replaceable white LED backlight. For its touchscreen, the terminal uses a 4-wire analog resistive touchscreen that has an actuation of one million presses, and an operating force of between 10 and 110 G. The Allen-Bradley/Rockwell Automation 2711P-T6M20A terminal has battery-backed clock timestamps for critical data with an accuracy of +/- 2 minutes per month. Note that when the battery’s ambient temperature is maintained at 25 degrees Celsius, it can last for a minimum of 4 years. The battery is a coin-cell lithium battery that is field-replaceable. The 2711P-T6M20A terminal weighs approximately 594 grams and has a typical power consumption rating of 20 Volts-Amps and maximum power consumption of 3 Volts-Amps.
