AB 2711P-T10C22D9P PanelView Plus 7 Standard Color Terminal

Technical Specifications for 2711P-T10C22D9P

[Origin]：USA

[Status]: Brand New In Stock

[Year of Production]: 2020-2022 availab
[Shipment]: From Xiamen, China to Worldwide

-------------------------------------------------------------

Product Description

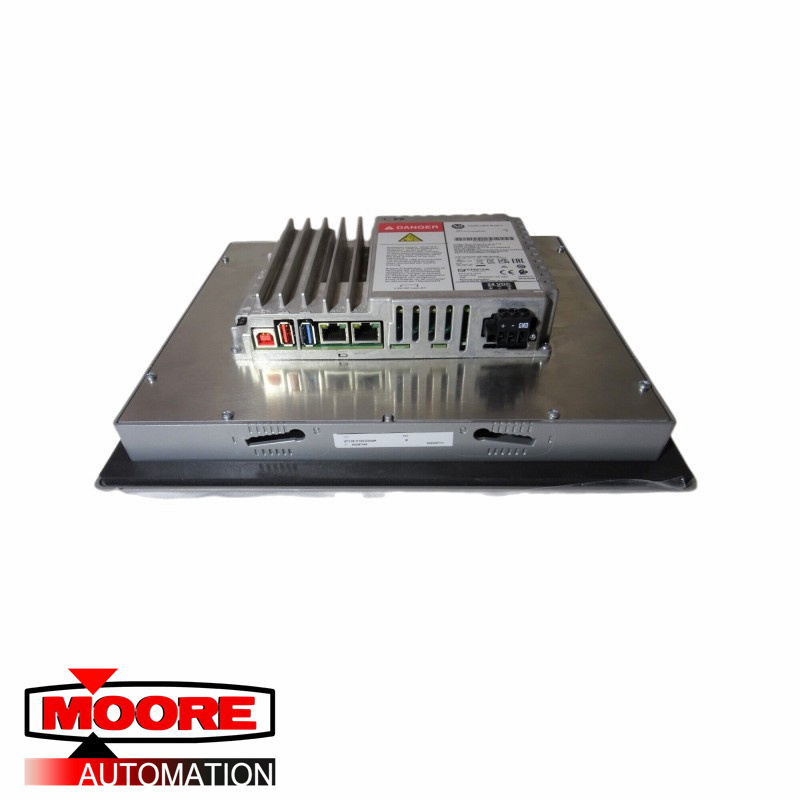

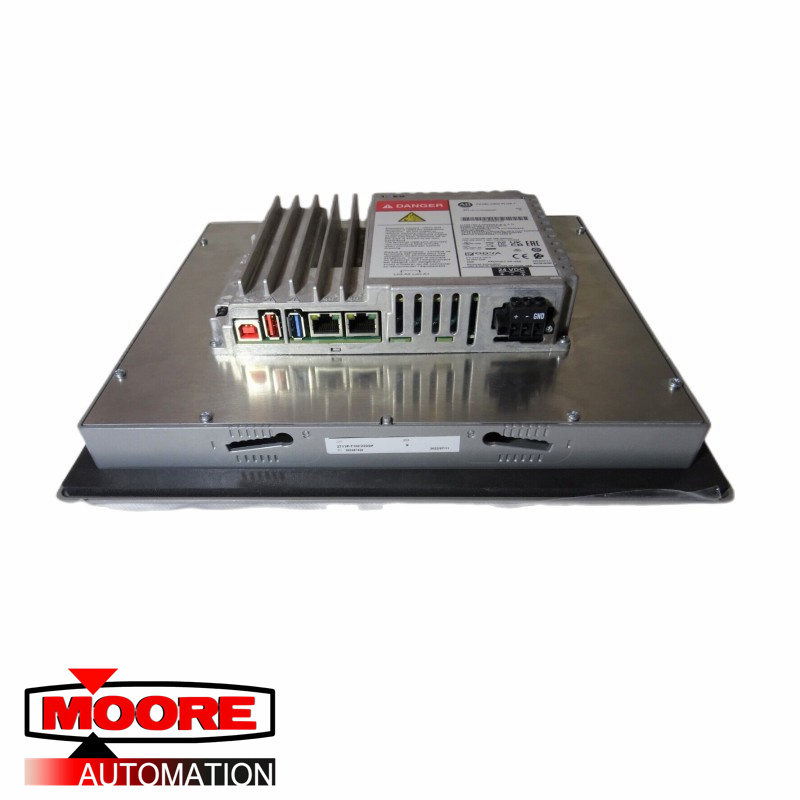

AB  2711P-T10C22D9P  PanelView Plus 7 Standard Color Terminal
This PanelView Plus 7 2711P-T10C22D9P by manufacturer Allen Bradley is a touchscreen performance PanelView, used to input commands to a network through its color TFT display with an 18-bit, 800 x 600 SVGA resolution. The white-light diode, solid state LED backlight on this panelview has around 50,000 hours of life and CANNOT be replaced. It contains a single SD card to allow for external storage which supports SD cards corresponding to the number 1784-SDx. It also has two 10/100 Base-T DLR Ethernet ports. In addition, it has a pair of Type A, high speed 2.0 USB ports and one high speed 2.0 device port.

With 24 Volts of DC nominal supply voltage, this unit consumes at maximum 50 Watts of power and supports (PELV) and (SELV) 24 Volt DC supplies. This unit weighs roughly 5.03 pounds (or 2.28 kilograms), measuring approximately 9.92 x 11.69 x 2.74 inches (or 252 x 297 x 69.6 millimeters), with a 10.4-inch display screen. A number of accessories can be purchased along with the 2711P-T10C22D9P, including a variety of protective overlays, power terminal blocks, SD (Secure Digital) cards, and battery replacements, and it has several certifications including but not limited to ATEX Zone 2, 22, CE (LVD), and the standard only EAC.
