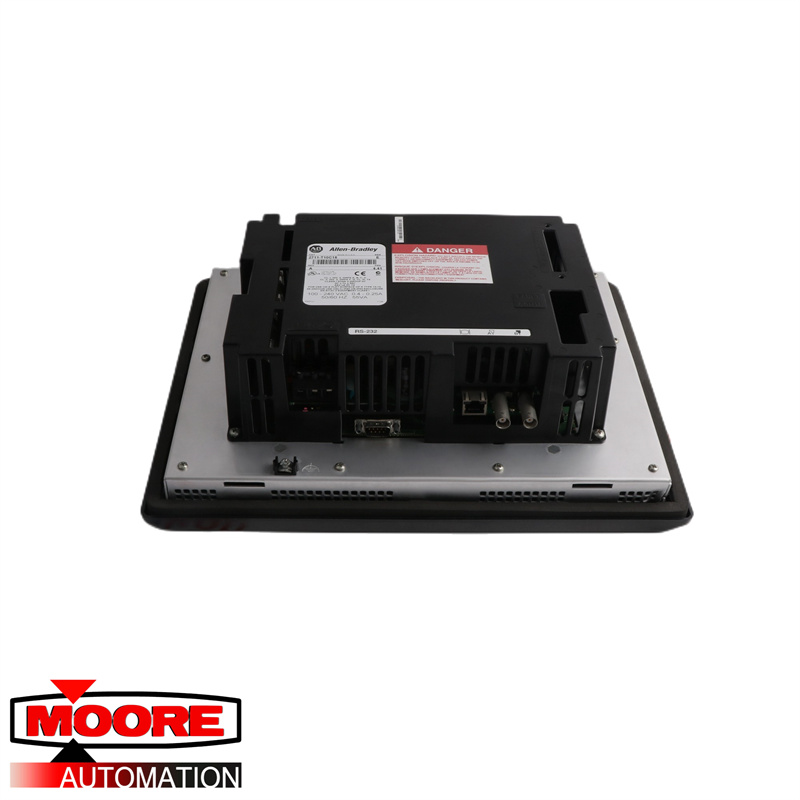

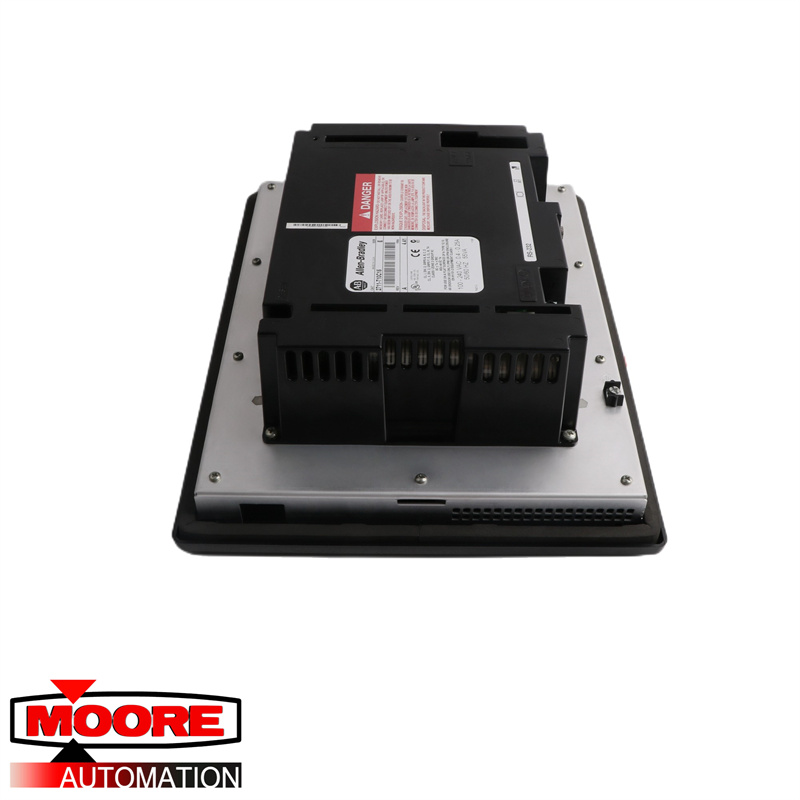

AB | 2711-T10C15 | PanelView 1000 Color Terminal Touch Screen

The Allen-Bradley 2711-T10C15 terminal is available with an Active Matrix TFT LCD with a 10-inch touchscreen display with a resolution of 640 x 480 pixels. The device is equipped with multiple communication ports. The RS-232 printer port is used to print generated messages, alarm lists, and triggered situations. The baud rate of the RS-232 port is 2400, 1200, 9600, and 19,200 kbps. Plus, the ControlNet option of the device allows for communication with other Allen-Bradley devices such as a PLC-5 or ControlLogix controller. The ControlNet terminal is used to communicate with multiple or single controllers for communication. Furthermore, the product dimensions are approximately 282 x 370 x 112 millimeters or 11.11 x 14.58 x 4.40 inches and it has a weight of almost 7.9 Pounds or 3.6 kilograms. The cut-out dimensions are measured at 11.11 inches in height and 14.58 inches in width. Moreover, the 2711-T10C15 terminal also features 1008 KB of non-volatile memory and 310 KB of RAM.
