AB 2711-K3A2L1 PanelView 300 Monochrome Keypad

Technical Specifications for 2711-K3A2L1

About  2711-K3A2L1

The PanelView Standard Operator Terminal with catalog number 2711-K3A2L1 PanelView Standard Operator Terminal belongs to the subgroup of PanelView 300 Monochrome visualization components. This HMI features a 3-inch display screen, a single DH485 communication port and a keypad operator interface.

The 2711-K3A2L1 is visualization component, more commonly called as Human Machine Interface (HMI) in most industries. It enables operators to control and monitor the process or machine in real-time manner through a centralized and single location in the factory floor. This enables a set of operational advantages which contributes to a more efficient and increased uptime of the process or machine.

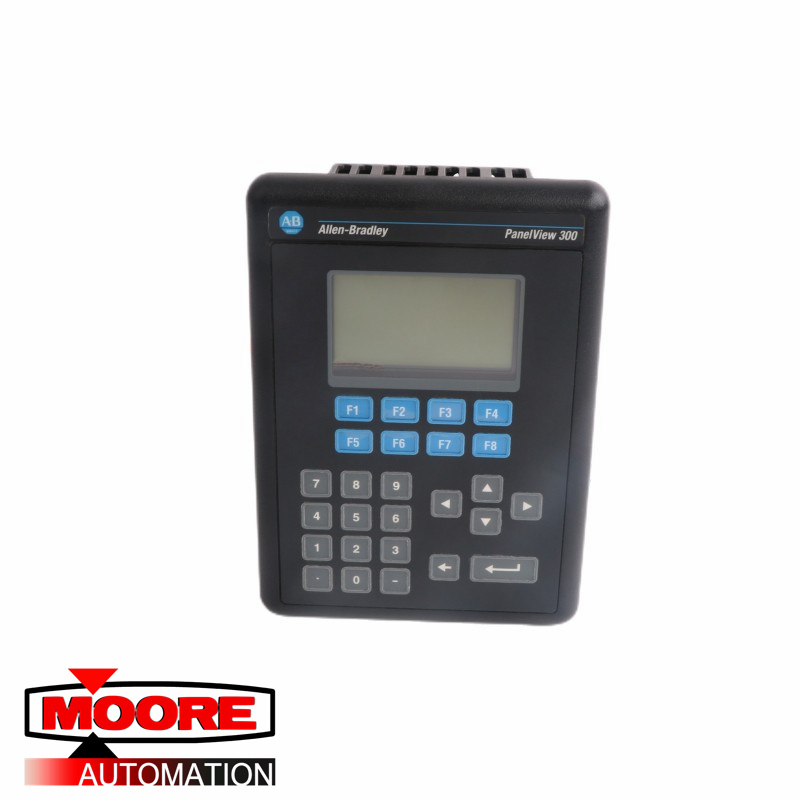

The 2711-K3A2L1 has a monochrome display screen, used for monitoring and analyzing the operation of the process. with a diagonal measurement of 3-inches. It has a display area of 73 mm (w) x 42 mm (h) or 2.87 in. (w) x 1.67 in. (h) and resolution of 128 x 64 Pixels. Through the keypad assembly which is composed of Eight (8) Function keys, cursor keys and numeric keys, operator can initiate control and modify process parameters.

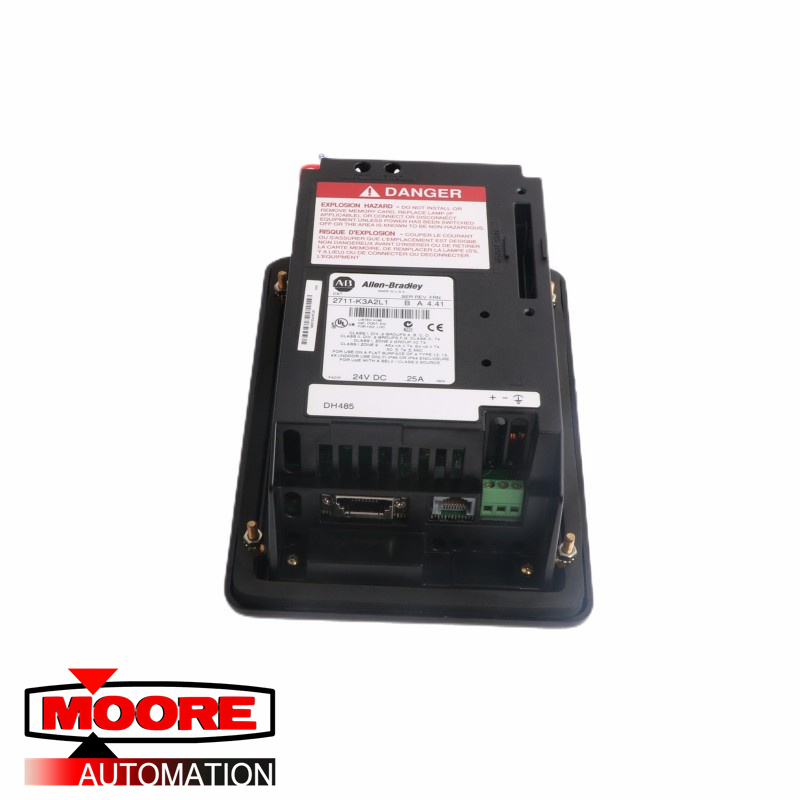

The 2711-K3A2L1 HMI is powered by an external supply voltage range of 18-32V DC. It has a power consumption of 6 Watts (0.25 Amps at 24V DC) and heat dissipation of 6 Watts (13 BTU/HR).
