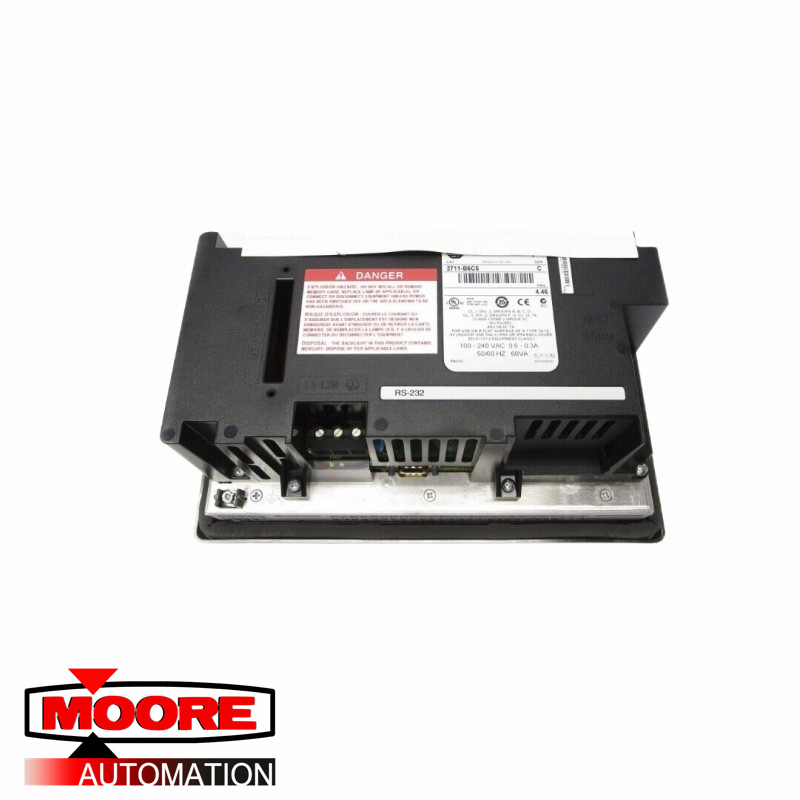

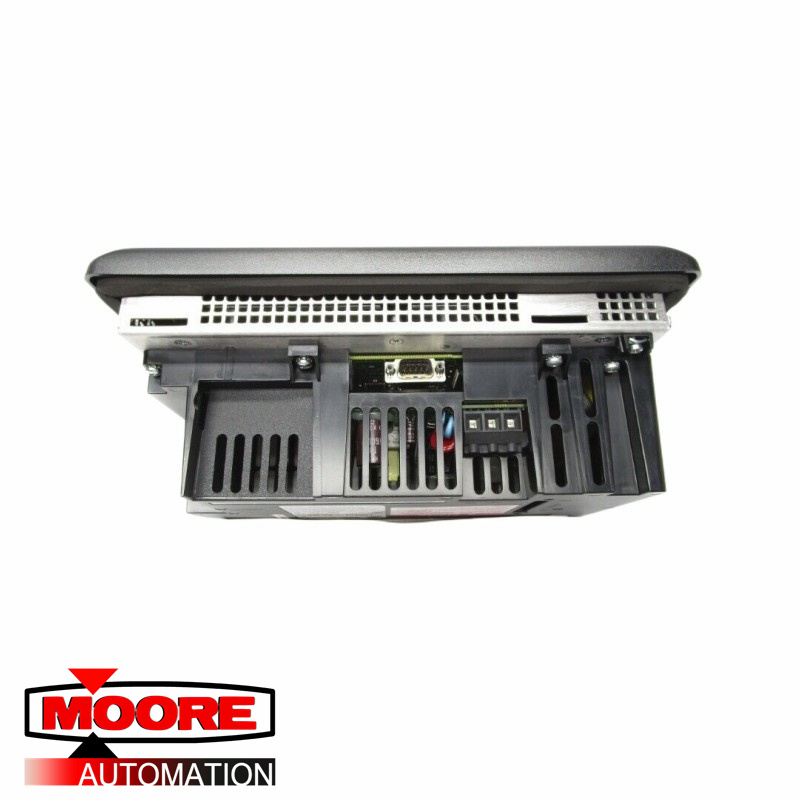

AB 2711-B6C5 PanelView 600 Color/Touch/Keypad

Technical Specifications for 2711-B6C5

About  2711-B6C5

The Allen-Bradley 2711-B6C5 Panelview terminal has an application memory of 190 Kilobytes in run-time and 240 Kilobytes for application objects, texts, and bitmaps. When it comes to communications, the Allen-Bradley 2711-B6C5 Panelview terminal is compatible with Ethernet/IP, DeviceNet, ControlNet, and other communication nodules. The Allen-Bradley 2711-B6C5 Panelview terminal has an input voltage range of 18 to 32 Volts DC and a nominal voltage of 24 Volts DC. The Allen-Bradley 2711-B6C5 Panelview terminal can be stored at a temperature range of -25 to 79 degrees Celsius and it can operate in a temperature range of 0 to 55 degrees Celsius. It operates at a maximum altitude of 2000 meters. This terminal has an approximate shipping weight of 2 kilograms.

The 2711-B6C5 is ideal for use in small systems, able to operate a single machine or process or if engineered accordingly, may be used to monitor and control a number of applications at once.

The 2711-B6C5 comes with a 5-inch screen, with 320 x 234 pixel resolution and15 x 86 mm (4.54 x 3.4 in.). display area. The HMI screed is fitted with a backlight with operational lifespan of 50,000 hr 1/2 life at 25 °C (77 °F). This backlight may be replaced by the 2711-NL5 backlight. The 2711-B6C5 is energized with an application of 85-264V AC range to the device’ voltage input terminal.
