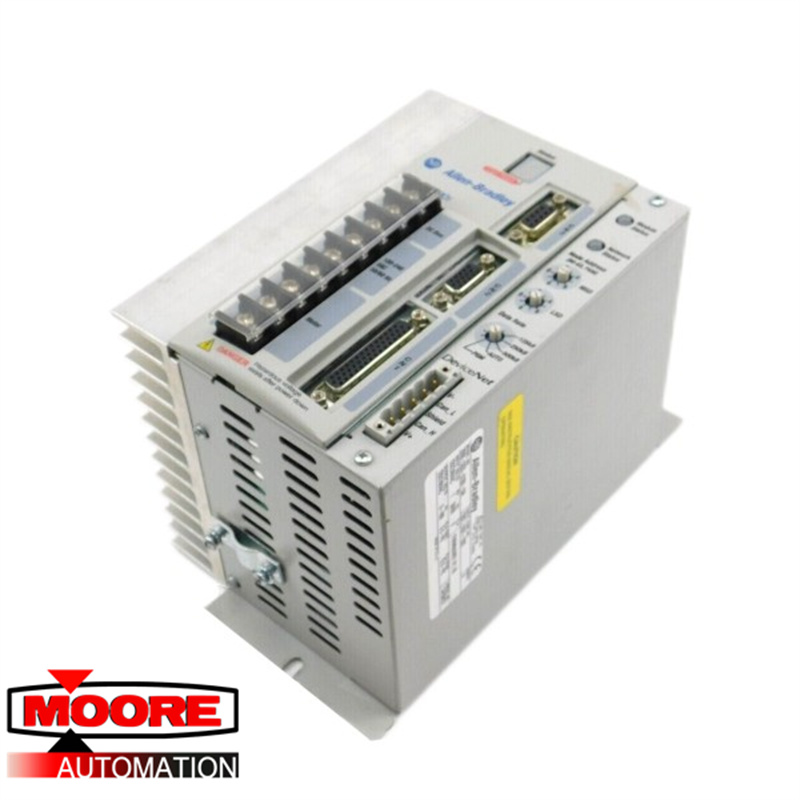

AB |2098-DSD-010X | SERVO DRIVE

About 2098-DSD-010X

The 2098-DSD-010X is an Allen-Bradley Ultra 3000i Digital Servo Indexing Drive. This Indexing drive is capable of being stored with pre-configured moves which can be relative or absolute, depending on the desired motion application.
The 2098-DSD-010X requires an input voltage of 100-240VAC rms, 1-Phase, input current of 9 A along a frequency range of 47-63 Hz. It has an output voltage of 100-240VAC range, with frequency of 0-400Hz continuous output power of 1kW with Continuous Output Current 5A and Intermittent Output Current of 15A.
This indexing drive has all the automation and status LEDs installed on the device’ front panel. It is equipped with Seven-segment Status Indicator, DC Bus Connections for Active Shunt Resistor installation, AC Input Power Connections for wiring input voltage supply. Installed at the bottom is the Motor Power cable shield clamp, used to fix the input supply wire in position and providing noise elimination. It has a CN3 9-pin Serial Port Connector that is used to communicate the drive via RS232 or RS485 communication standard, CN2 15-pin Motor Feedback Connector for interfacing motor feedback signal, CN1 44-pin User I/O Connector for interfacing external input and output signals.
