 /AB | 1794-IE4XOE2 | Flex I/O Analog Combination Module
AB | 1794-IE4XOE2 | Flex I/O Analog Combination Module
AB | 1794-IE4XOE2 | Flex I/O Analog Combination Module
AB | 1794-IE4XOE2 | Flex I/O Analog Combination Module

AB | 1794-IE4XOE2 | Flex I/O Analog Combination Module


  • Brand :

    PLC

  • Part Number :

    1794-IE4XOE2

  • Weight :

    0.1 kg

  • Dimension :

    10.2x5.1x5.1 cm

  • Country of Origin :

    USA

  • HS Code :

    8537101190

  • Description :

    Flex I/O Analog Combination Module
Inquire Now

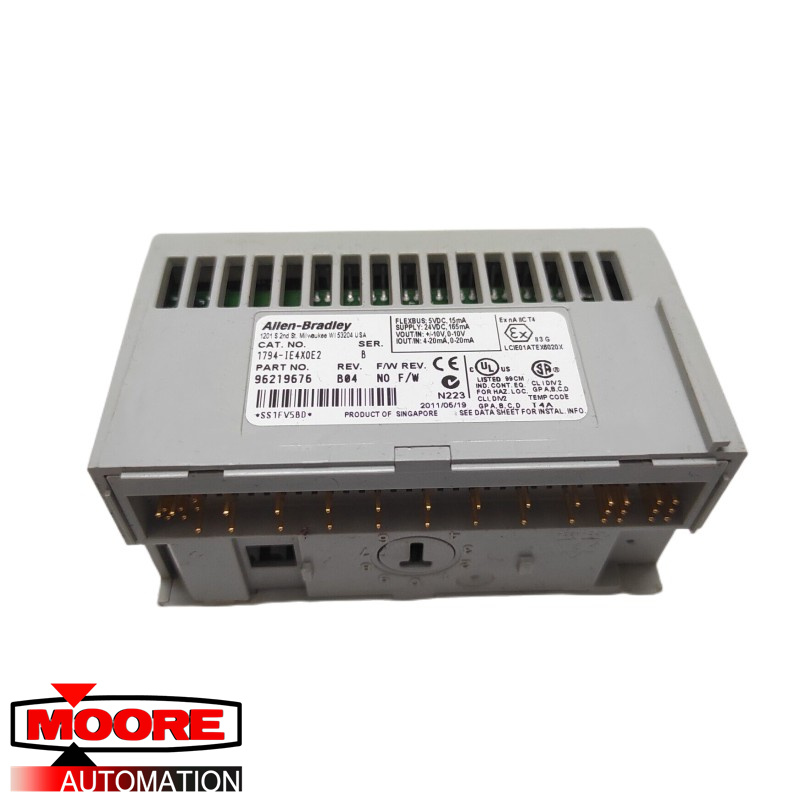

The Allen-Bradley 1794-IE4XOE2 is a combination I/O module. This module is part of the Flex I/O product family that are popularly used to implement distributed I/O architecture. The 1794-IE4XOE2 features the combined capability of analog and input channels as this module comes with Four (4) single-ended, non-isolated analog input channels and Two (2) single-ended, non-isolated analog output channels.

The analog input channels are configurable to receive analog input signals such as 0-20 mA and 4-20 mA signals and 0-10VDC and +/- 10VDC voltage signals. It has a built-in Analog to Digital converter (ADC) using the successive approximation method. Each channel has a conversion rate of 256μs with step response to 63% of 9.4 ms for voltage and 18.2 ms for current. It has an absolute accuracy of 0.20% Full Scale @ 25°C. This module saves the converted data into left justified, 16 bit 2s complement data format.
