AB 1794-AENT Flex EtherNet/IP Adaptor

Technical Specifications for 1794-AENT

About  1794-AENT

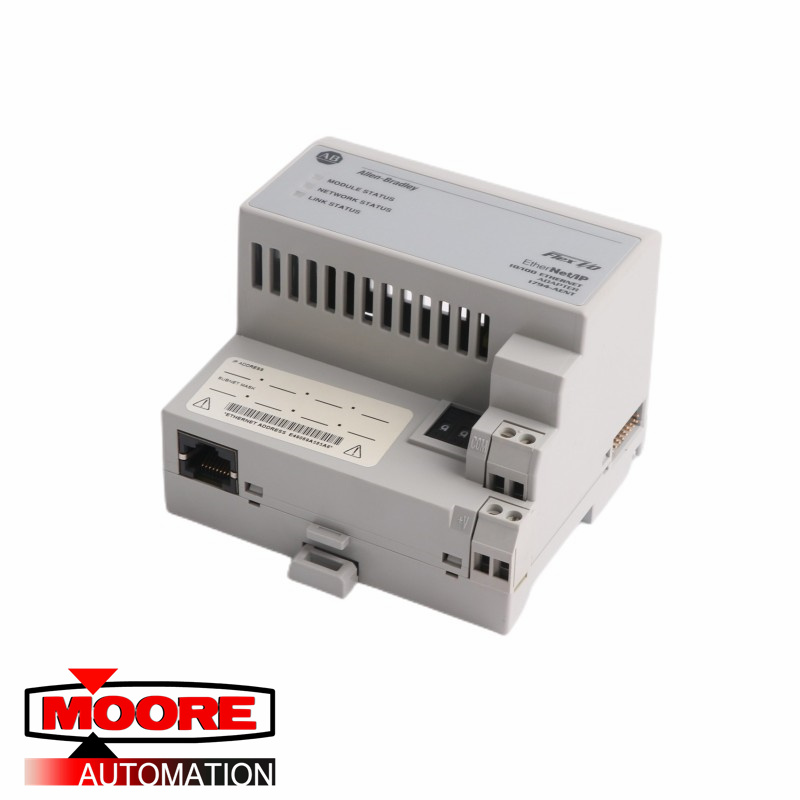

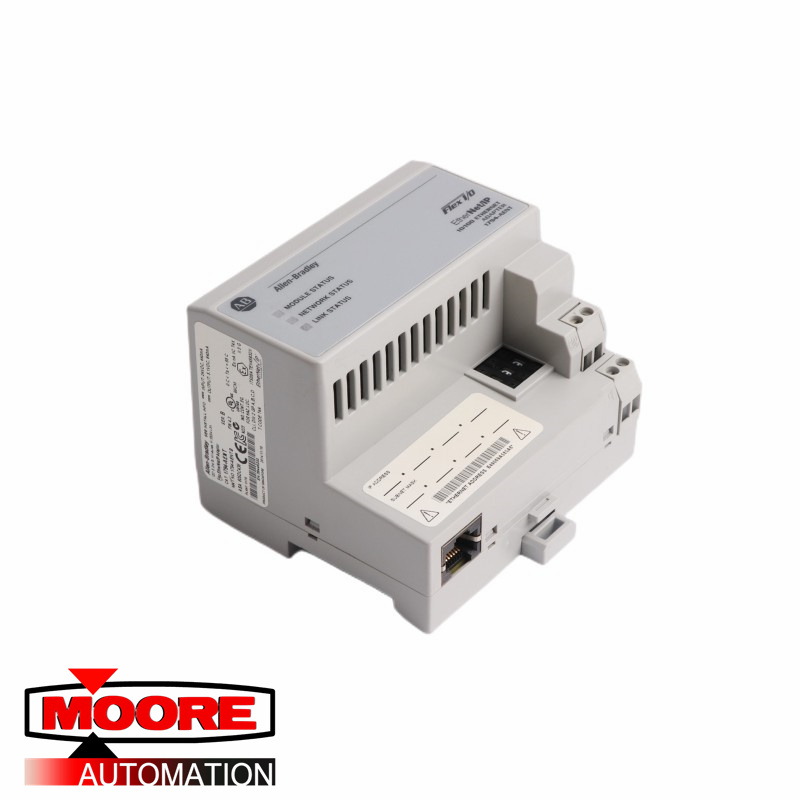

The Allen-Bradley 1794-AENT is a Flex I/O module that functions as a communication adapter. This communication adapter enables a Flex I/O rack to connect to Ethernet network and exchange data with Ethernet enabled controllers. This adapter allows installation of up to Eight (8) Flex I/O modules, specifically supporting Discrete Input and output and Analog input and output modules.

Flex I/O product family are compact and cost-effective solution for implementing Distributed I/O architecture. The 1794-AENT allows this via the single RJ45 port which supports Ethernet I/P protocol. It supports 10/100 Mbps communication rate.

The 1794-AENT is capable of linear topology. The network address is configured using the thumbwheel switches provided with the module or using a DHCP server. By default, the adapter switches are set at 999.

When establishing connections to the module such as Power connections, recommended wire size range is 0.33...3.31 sq. mm (22...12 AWG) stranded copper wire. The recommended wire insulation rating is 75 °C (167 °F) or greater, and maximum insulation thickness of 1.2 mm (3/64 in.). Recommended terminal screw torque is 0.8 Nm (7 lb-in.). The module has physical dimensions of 87 x 94 x 92 mm or 3.4 x 3.7 x 3.6 in and weighs 227 g (8.01 oz.

The 1794-AENT Flex I/O communication adapter may act as remote I/O to controllers such as PLC5, SLC500, and Logix controller platforms such as CompactLogix and ControlLogix.
