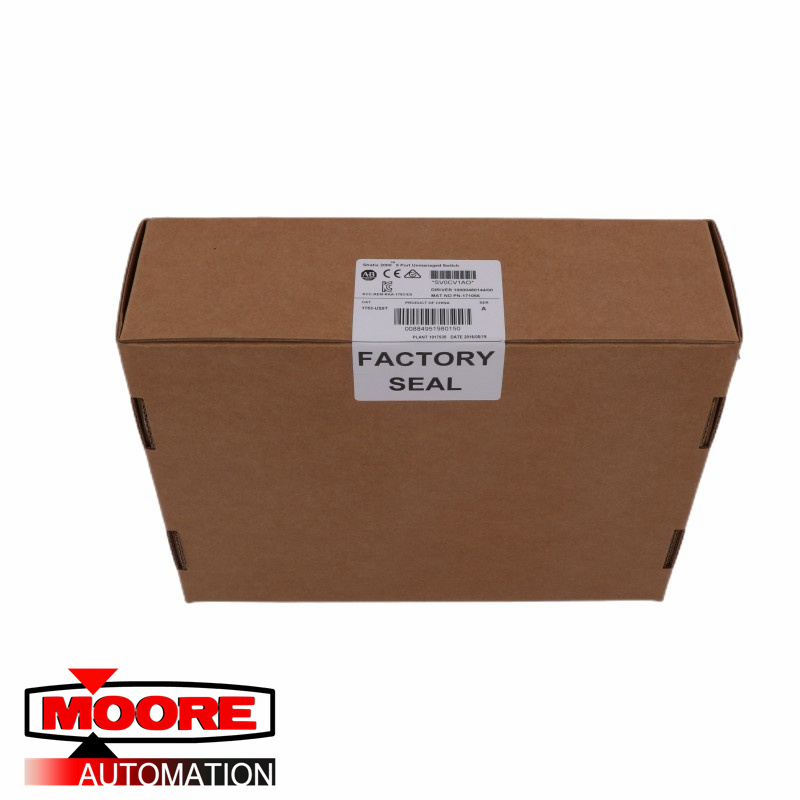

AB 1783-US5T Stratix 2000 5 port unmanaged switch

Technical Specifications for 1783-US5T

[Origin]：USA

[Status]: Brand New In Stock

[Year of Production]: 2020-2022 availab
[Shipment]: From Xiamen, China to Worldwide

-------------------------------------------------------------

Product Description

The 1783-US5T is an unmanaged Ethernet switch by Allen-Bradley. This is part of the Stratix 2000 industrial-grade switches that are used for industrial networking, implementing Ethernet connectivity. This ethernet switch mainly features Five (5) Fast Ethernet copper ports supporting 10/100 Mbps transmission speed. This ethernet switch can be used to link different automation devices for implementing data exchange and integration of Programmable Logic / Automation Controllers (PLC / PAC), Human Machine Interface (HMI), Supervisory Control and Data Acquisition System (SCADA), communication modules, gateways, field equipment, and devices. The 1783-US5T is powered by an external DC supply voltage range of (12-48V DC, 18-30V AC, 50/60 Hz), with a nominal voltage of 24 VDC / VAC, nominal current of 180 mA for DC input, and 360 mA for AC input. In addition, the device's maximum input current is 380 mA for DC input and 750 mA for AC input. This switch can withstand an inrush current of 1.85 Amperes. The 1783-US5T has an operating temperature of -10 to 60 Degree Celsius, maximum surrounding air and ambient temperature of 60 Degree Celsius, and relative humidity of 5-95%. This device has a vibration rating of 2g at 10-500 Hz, an operating shock of 15 g with an IP30 environmental rating. The 1783-US5T measures 114.5 mm (4.51 in.) (H) x 29.6 mm (1.17 in.) (W) x 68 mm 2.68 in.) (D). It is designed for DIN rail mounting via the provided DIN rail mounting clip at the back of the device. A removable terminal is mounted on top of the module that is used for terminating the external power supply.
