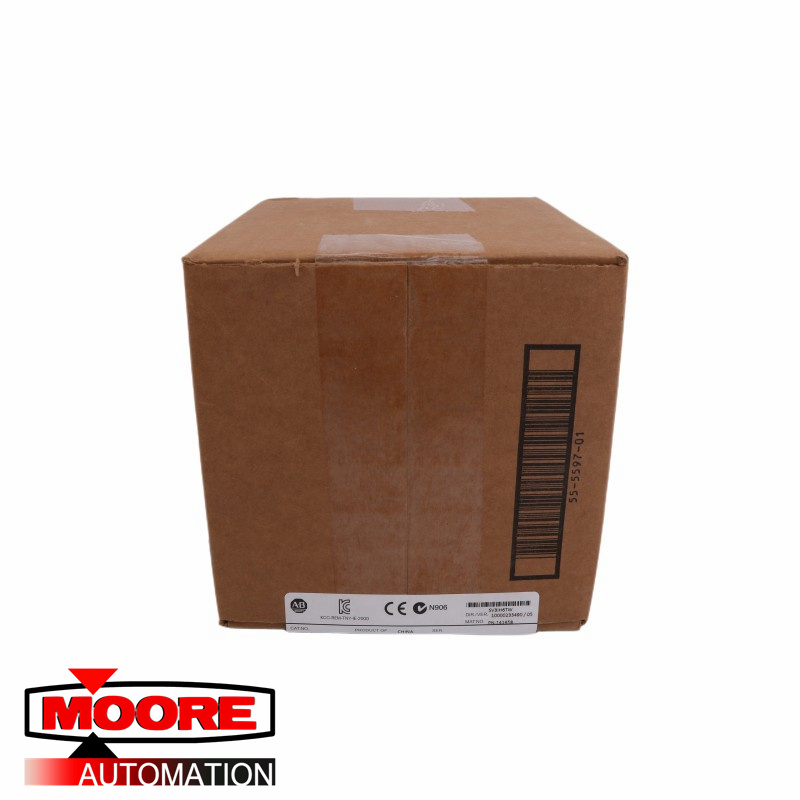

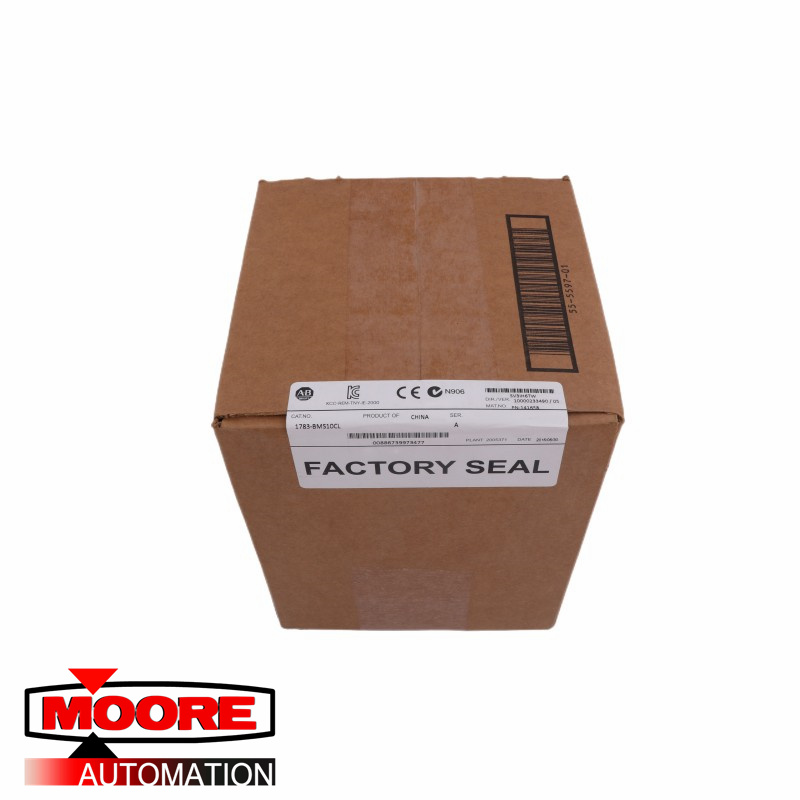

AB 1783-BMS10CL Stratix 5700 10 Port Managed Switch

Technical Specifications for 1783-BMS10CL

[Origin]：USA

[Status]: Brand New In Stock

[Year of Production]: 2020-2022 availab
[Shipment]: From Xiamen, China to Worldwide

-------------------------------------------------------------

Product Description

The Stratix 5700 1783-BMS10CL switch from Allen-Bradley is an industrial Ethernet switch. The switch comes with a total of 10 ports, out of which 2 ports are combo ports and 8 ports are RJ45 ports. Both the RF45 ports and the combo ports support Fast Ethernet. Five different SFP modules can be used with the combo ports for fiber connectivity. The memory card which can be installed on the 1783-BMS10CL switch is the 1784-SD1 memory module. The storage/transportation temperature range for the 1783-BMS10CL switch is -40 to 185 degrees Fahrenheit. The operating temperature range for the switch is -40 to 140 degrees Fahrenheit.

The ESD immunity rating for the 1783-BMS10CL switch is 8 kilovolts of contact discharges and 15 kilovolts of air discharges. The environmental rating of the 1783-BMS10CL range is IP 30. The vibration rating for the switch is 2 G at 10 to 500 Hertz. The approximate weight of the 1783-BMS10CL switch is 1.25 kilograms and the dimensions of the switch are 5.1 x 3.6 x 4.59 inches. For the ground connection, 12 AWG stranded copper at minimum should be used. The maximum screw torque for the ground terminals should be 0.96 N-m. The screw torque for the power and alarms terminals should be 0.23 N-m. The wire size for alarm connections should be 20 to 18 AWG stranded or solid copper wire. The wire size for DC power wiring should be 20 to 18 AWG stranded or solid copper wire rated for minimum of 75 degrees Celsius. The power input to the switch is 12 to 48 Volts DC.
