AB 1783-BMS10CGN Stratix 5700 10 Port Managed Switch

Technical Specifications for 1783-BMS10CGN

[Origin]：USA

[Status]: Brand New In Stock

[Year of Production]: 2020-2022 availab
[Shipment]: From Xiamen, China to Worldwide

-------------------------------------------------------------

Product Description

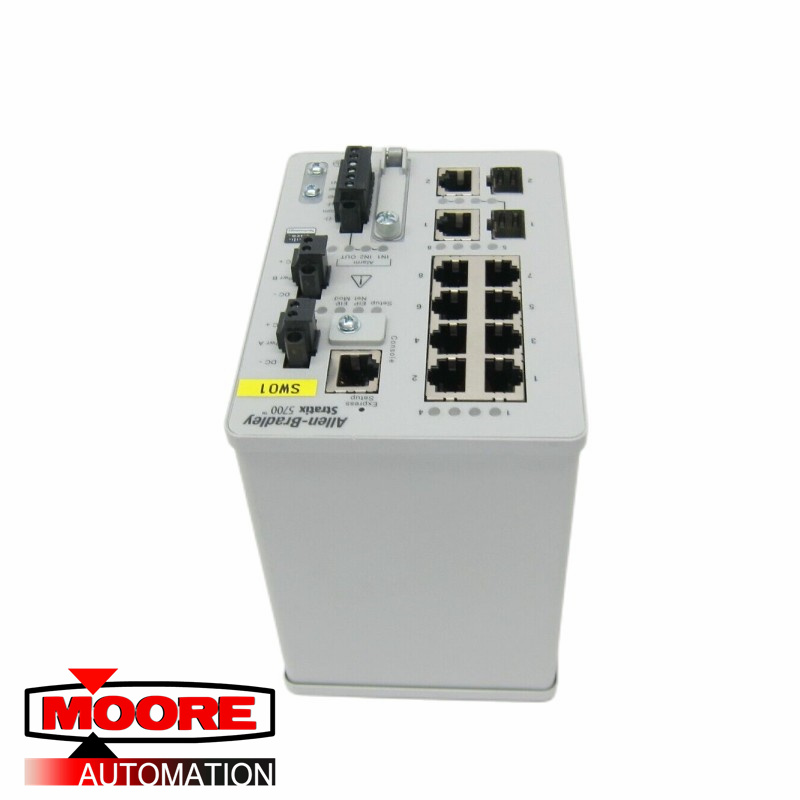

The Allen-Bradley 1783-BMS10CGN is a Stratix Ethernet I/P managed switch. This ethernet switch features a total of Ten (10) Ethernet ports with Eight (8) Fast Ethernet (FE) Copper ports and Two (2) Gigabit Ethernet (GE) ports. This Ethernet switch may be used for implementing industrial architecture with increased level of security and resiliency.

It is powered by an external 24VDC supply voltage with a power consumption of 15 Watts @ 24V DC/ 40 °C (104 °F) with maximum consumption of 20 Watts. It has a power dissipation of 20 Watts. The 1783-BMS10CGN has an integrated alarm relay with contact rating of 1 A @ 30V DC or 0.5 A @ 48V DC.

The combo ports which supports Gigabit Ethernet (GE) may be installed with Small Form-factor Pluggable (SFP) transceiver, used for fiber-optic layer. It may also be installed with a 1784-SD1, used for saving the ethernet switch’ configuration and convenient transfer of configuration to other similar managed ethernet switch.

For Ethernet connection, recommended wire assembly is RJ45 connector according to IEC 60603-7 and Two (2) or Four (4) pair Category 5e minimum cable according complying to TIA 568-B.1 or Category 5 cable according to ISO/IEC 24702. For terminating signal wires to the alarm relay, recommended wire size is 0.5-0.8 mm. sq. or 20-18 AWG solid or stranded, UL/CSA-rated style 1007 or 1569 twisted-pair copper appliance wiring material (AWM) wire, 6.3 mm (0.25 in.) ±0.5 mm (0.02 in.) strip length. For DC power connection, appropriate wire size is 0.5…0.8 mm sq. or 20-18 AWG solid or stranded copper wire with insulation rating of 75 °C (167 °F) or greater, and maximum insulation thickness of 1.2 mm (3/64 in.) with strip length of 6.3 mm (0.25 in.) ±0.5 mm (0.02 in.).
