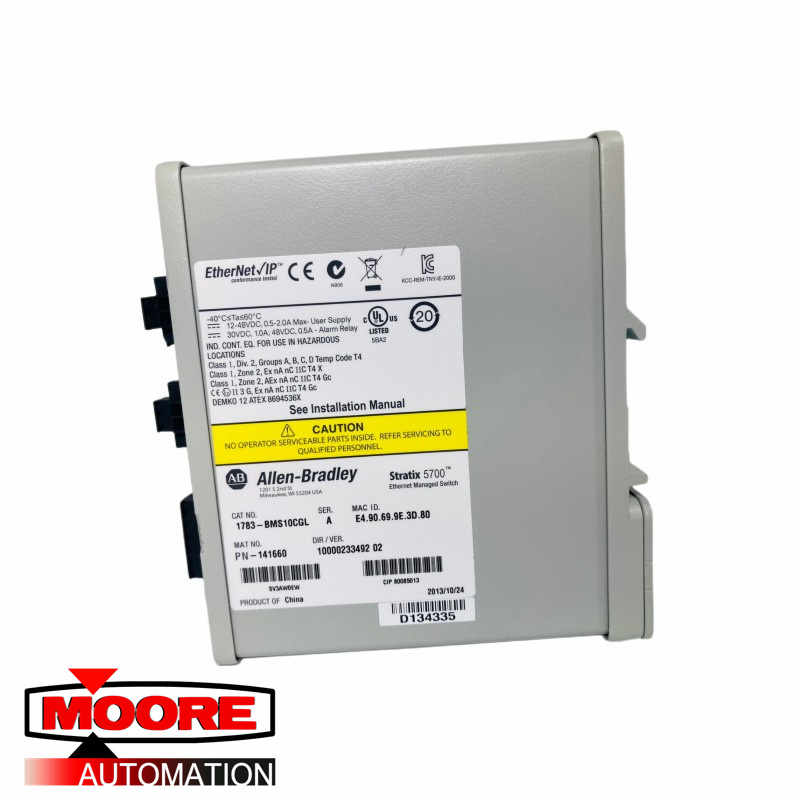

AB 1783-BMS10CGL STRATIX 5700 10 PORT ETHERNET MANAGED SWITCH

Technical Specifications for 1783-BMS10CA

[Origin]：USA

[Status]: Brand New In Stock

[Year of Production]: 2020-2022 availab
[Shipment]: From Xiamen, China to Worldwide

-------------------------------------------------------------

Product Description

The Allen-Bradley Stratix 5700 series 1783-BMS10CGL switch is an Ethernet switch. The 1783-BMS10CGL switch is a configurable and managed switch with 10 ports. There are 8 copper ports and 2 combo ports on the 1783-BMS10CGL switch. The copper ports support Fast Ethernet. The combo ports support Gigabit Ethernet.

The input voltage range for the 1783-BMS10CGL switch is from 12 to 48 Volts DC. The input current range is from 0.5 to 2 Amps. The power input should be supplied from a Class 2 or SELV power supply. The rated maximum power consumption for the 1783-BMS10CGL switch is 17 Watts. The rated power dissipation is also 17 Watts. The rated insulation voltage is 50 Volts. There is no insulation between the Ethernet ports and between the console port and the system. The recommended wire for Ethernet connections is 2 / 4 pair Category 5e cable. The recommended wire for DC power is 20 to 18 AWG solid / stranded copper wire. The recommended wire for alarm connections is 20 to 18 AWG rated solid or stranded copper wire. The open switch enclosure has dimensions of 129.5 x 91.4 x 116.7 millimeters. The approximate weight of the 1783-BMS10CGL switch is 1.25 kilograms.
