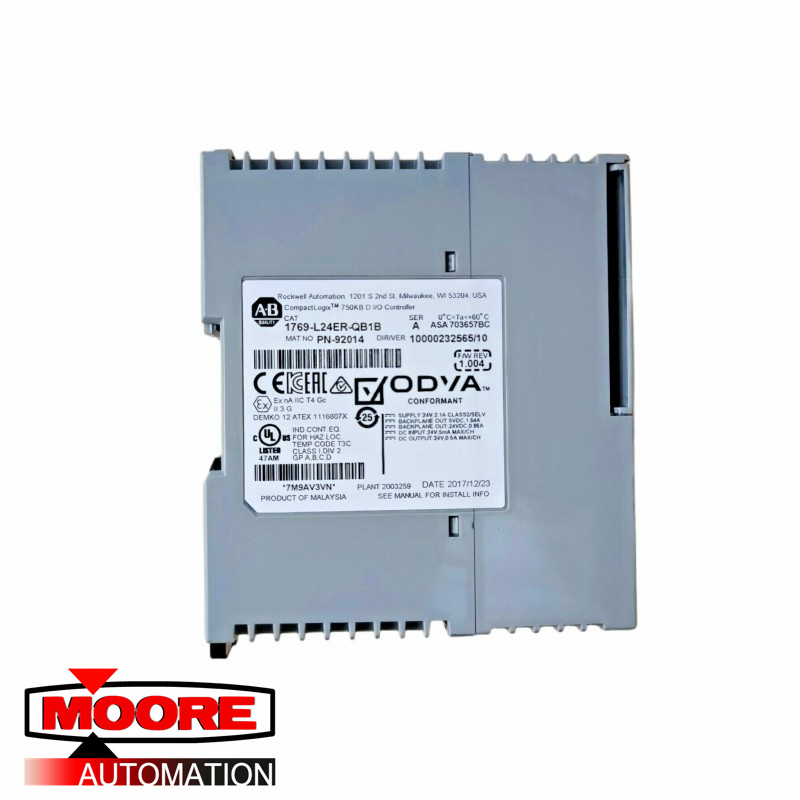

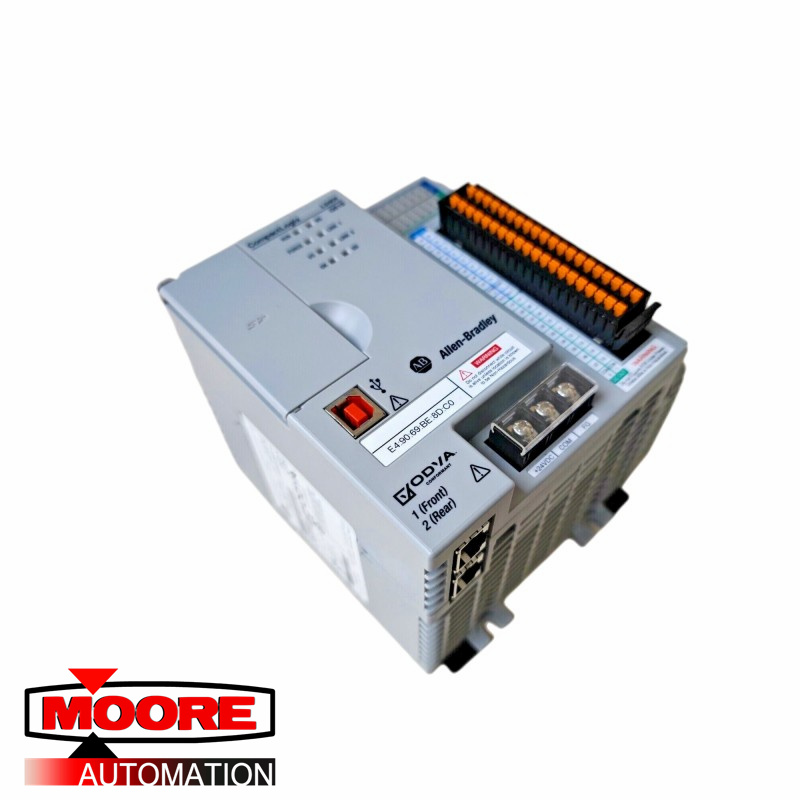

AB 1769-L24ERQB1B CompactLogix Controller

Technical Specifications for 1769-L24ERQB1B

[Origin]：USA

[Status]: Brand New In Stock

[Year of Production]: 2020-2022 availab
[Shipment]: From Xiamen, China to Worldwide

-------------------------------------------------------------

Product Description

The Allen-Bradley 1769-L24ER-QB1B is a CompactLogix 5370 L2 packaged controller that comes with Thirty-Two (32) I/O channels and Two (2) Ethernet communication ports. These I/O channels consists of up of Sixteen (16) DC input and Sixteen (16) DC output channels. For the input channels, it operates with nominal voltage of 24 Volt DC with operating range of 10 to 28.8 VDC.
The 1769-L24ER-QB1B current draws are 1.54 A at 5 Volts DC and 0.95 A at 24 Volts DC. At an off-state, it has a maximum current of 1.5 mA and a maximum voltage of 5 Volts DC. Its on-state currents are 2 mA at 24 Volts DC per channel and 5 mA at 24 Volts DC per channel, which are the minimum and maximum respectively. This controller’s s output channels have a nominal voltage of 24 Volts DC and an operating voltage range of 20.4 to 26.4 Volts DC. When in an on-state, it has a maximum voltage drop of 1 Volts DC at 1 A and a maximum current of 0.5 mA at 24 Volts DC per channel. The 1769-L24ER-QB1B current per point is 0.83 A at 40 degrees Celsius and 0.5 A at 60 degrees Celsius, while its current per module is 6.64 A at 40 degrees Celsius and 4 A at 60 degrees Celsius.
The power supply of the 1769-L24ER-QB1B controller is 24 Volts DC and is isolated. It comes with a 0.75 MB memory that you can expand using the standard 1 GB standard secure digital (SD) memory card or the optional 2 GB memory card. This controller uses a USB and DualPort Ethernet DLR interface and comes with built-in status LEDs. The entire 1769-L24ER-QB1B controller measures 4.53 x 4.13 x 4.65 inches.
