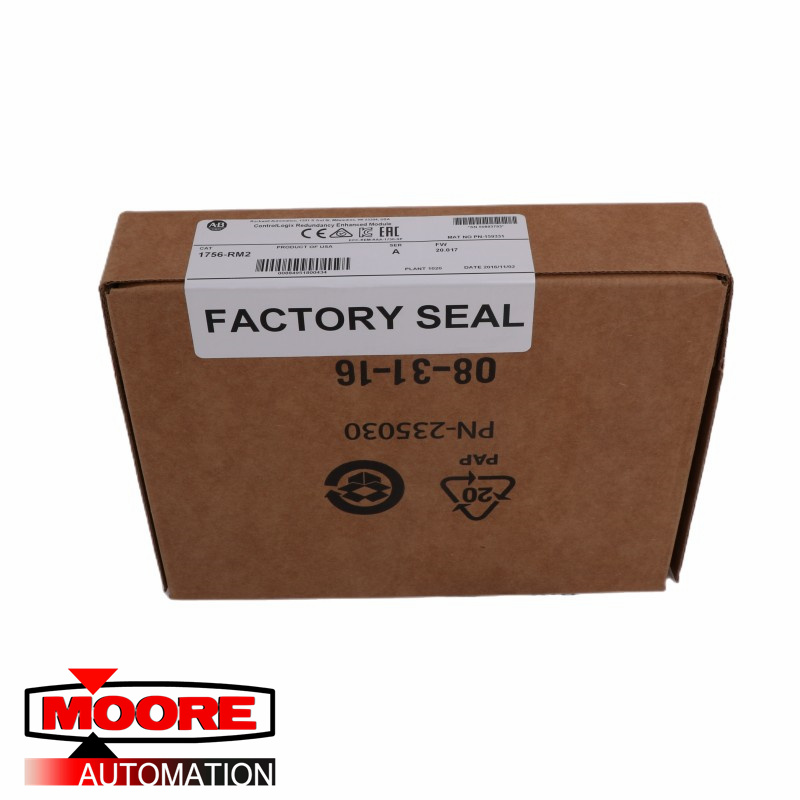

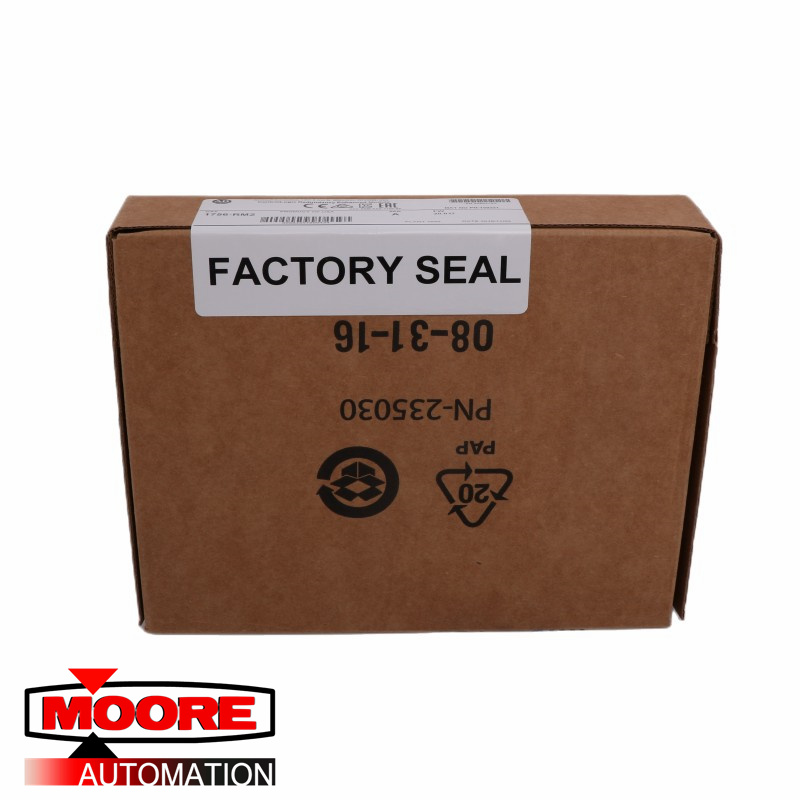

AB 1756-RM2/A ControlLogix Redundancy Enhanced Module

The Allen-Bradley 1756-RM2 is a ControlLogix Redundancy Module. It has enhanced features with speeds of up to 1000 Mbps. When paired with 1756-L7x controllers in both chassis, it gives the best scan performance. For cross loading, the 1756-RM2 uses redundant fiber ports with no single point of failure. During channel switchover, the processing chassis remains synched while the scan time may encounter a delay of around 10 ms. It has enhanced safety features with interference-free diagnostics.

The 1756-RM2 redundancy module draws 1.16 A current at 5.1V DC and 3.4 mA at 24V DC. It has a maximum power dissipation of 6W and a thermal dissipation of 21 BTU/hr. It can be installed in any slot in a ControlLogix chassis. The 1756-RM2 weighs 0.64 lbs. and it has an open enclosure. For communication, it supports up to seven enhanced ControlNet and EtherNet/IP communication modules. For wiring, the 1756-RM2 supports 1756-RMC1, 1756-RMC3 and 1756-RMC10 cable with 1m, 3m and 10m lengths respectively.

The ControlLogix 5560 and ControlLogix 5570 series of controllers support the 1756-RM2 module. The Redundancy Module Configuration tool, RSLinx 2.59.
