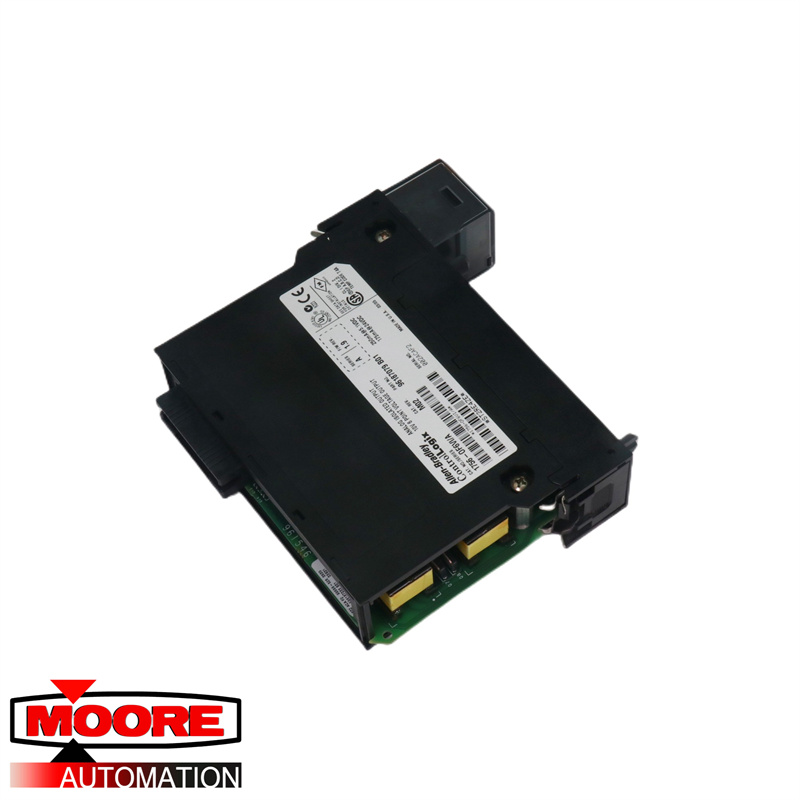

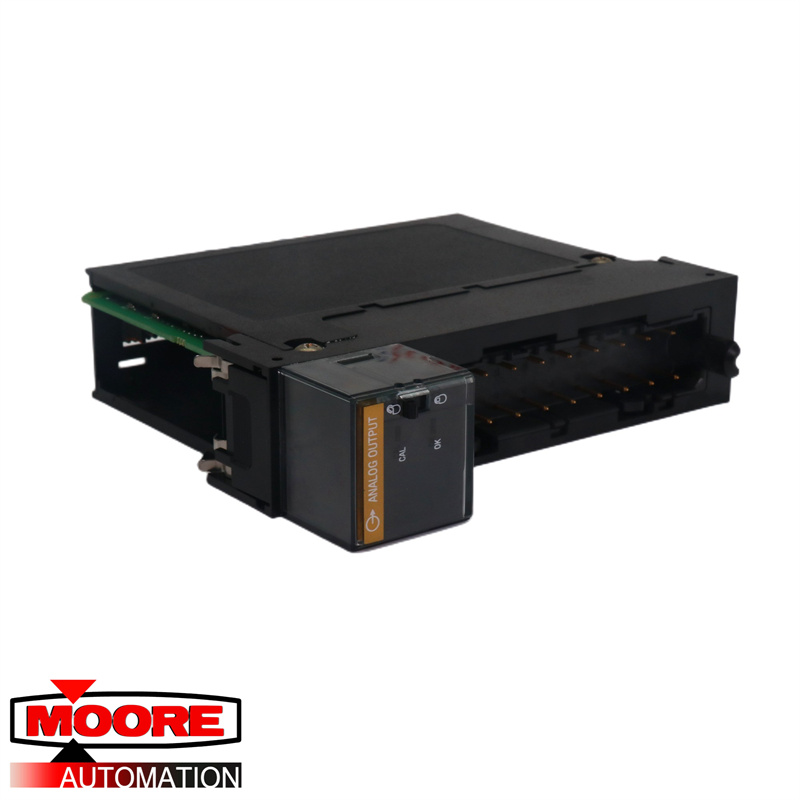

AB | 1756-OF6VI | ControlLogix Isolated Analog Output Module
AB | 1756-OF6VI | ControlLogix Isolated Analog Output Module
AB | 1756-OF6VI | ControlLogix Isolated Analog Output Module

AB | 1756-OF6VI | ControlLogix Isolated Analog Output Module


  • Brand :

    PLC

  • Part Number :

    1756-OF6VI

  • Weight :

    0.28 kg

  • Dimension :

    3.6x14x14.6 cm

  • Country of Origin :

    USA

  • HS Code :

    8537101190

  • Description :

    ControlLogix Isolated Analog Output Module
Inquire Now
The 1756-OF6VI ControlLogix Voltage Loop Output Analog module by PLC is a ControlLogix chassis slot fitted analog output module with 6 individually-isolated outputs. It has a selectable signal range with an overall output range of +/- 10.5V and a signal resolution of 14 bits across 21V. It has a backplane draw current of 175mA at 24V DC and of 250mA at 5.1V DC and it has a maximum backplane power of 5.5W. The 1756-OF6VI has a thermal dissipation of 16.54 BTU/hr with 4.85W power dissipation and a 1 Ohm output impedance. It does not come with an open circuit detection but offers overvoltage protection at 24V DC, and electronic current-limited short-circuit protection.

The 1756-OF6VI has a drive capability of loads at 10mA, and a <2ms settling time. The 1756-OF6VI has a calibration accuracy far better than 0.1% of its range and requires re-calibration only after 6 months. The module has a maximum gain drift of 80 ppm/ deg C, and it has a standard offset drift of 60 V per deg. C. The 1756-OF6VI has an overall module error margin of 0.5% and it has a module scan time of 25ms for floating point, and 10ms for integer. It has an isolation voltage of 250V with basic insulation, tested at 1350V AC for 2s, between output channels-to-backplane, and output channel-to-channel. It has the T4A North America Designated temperature code and an IEC T4 temperature code and comes in an open-style enclosure. The 1756-OF6VI has a functional temperature range between 0 and 60 deg. C at 5-95% non-condensing humidity environment and it is designed to withstand an operational shock of 30G with a vibration of 2G at 10-500Hz.

If you choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
If there is a quality problem within 15 days, you can return and exchange the products!!!
