Brand :
PLCPart Number :
1756-L55M12Weight :
0.34 kgDimension :
3.5x14x14.5 cmCountry of Origin :
USAHS Code :
8537101190Description :

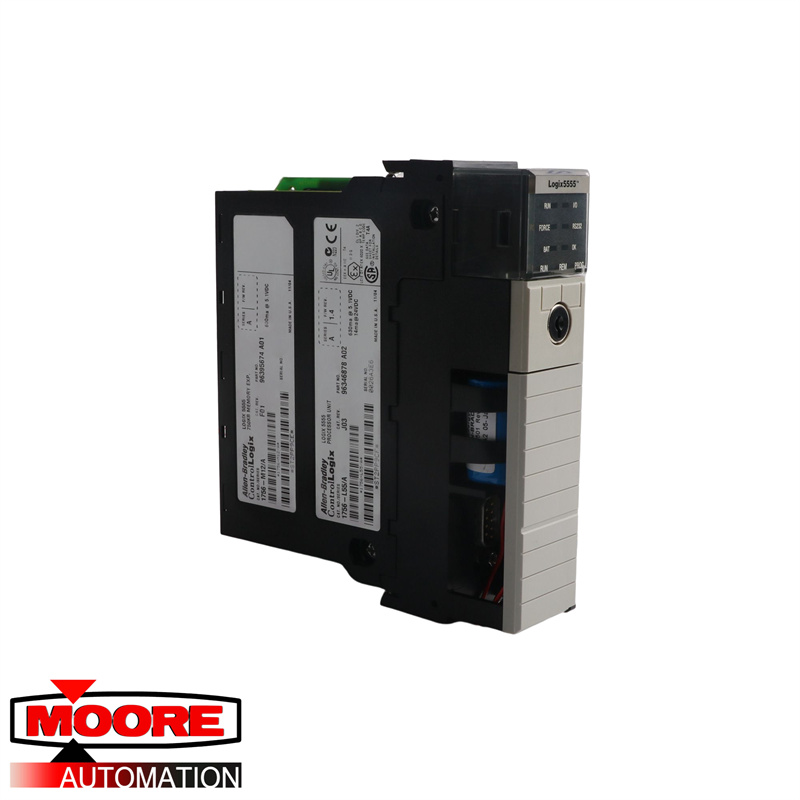

Logix5555 Processor 750KB memory
The backplane current of the 1756-L55M12 controller is 1.23 A at 5.1V DC and 0.014 A at 24V DC. It has a power dissipation of 5.6W and a thermal dissipation of 19.1 BTU/hr. It has a conducted RF immunity of 10V rms with 1 kHz sine-wave 80% AM from 150 kHz to 80 MHz. It also has an isolation voltage of 30V, which is continuous and a basic insulation type. The 1756-L55M12 controller has been tested to withstand 707V DC for 60 s.
A lithium battery with category number 1756-BA1 and weighing 0.59 g is used by this battery. You should only order a replacement when needed. It has a wiring category of 2 on its communication ports and is compatible with either the 1756-CP3 or 1747-CP3 serial cables. This controller, together with other 1756-L55 controllers, can be used in a redundant controller system but they should be in a ControlNet network.
