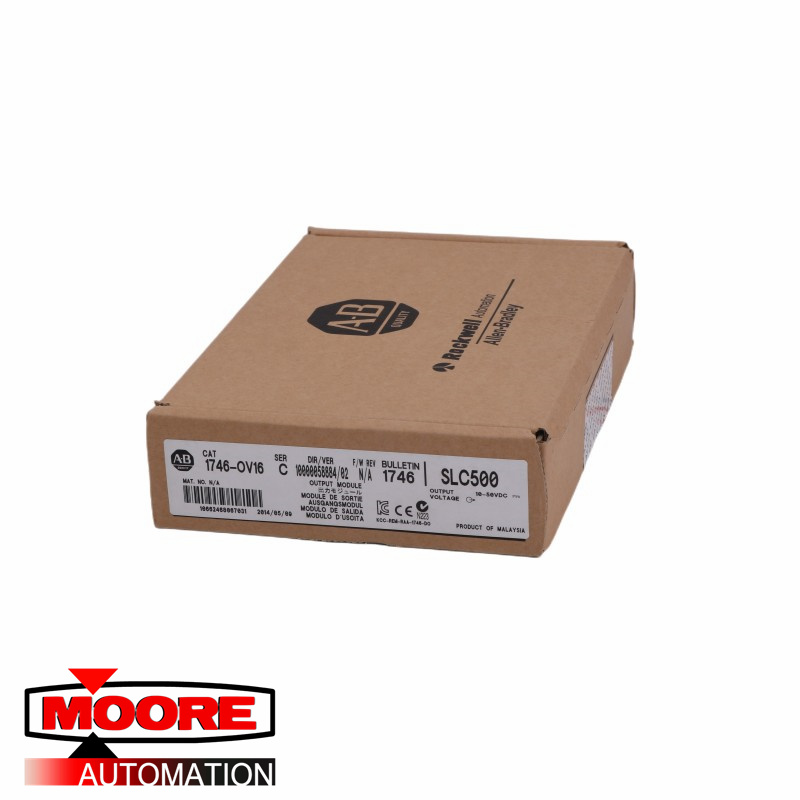

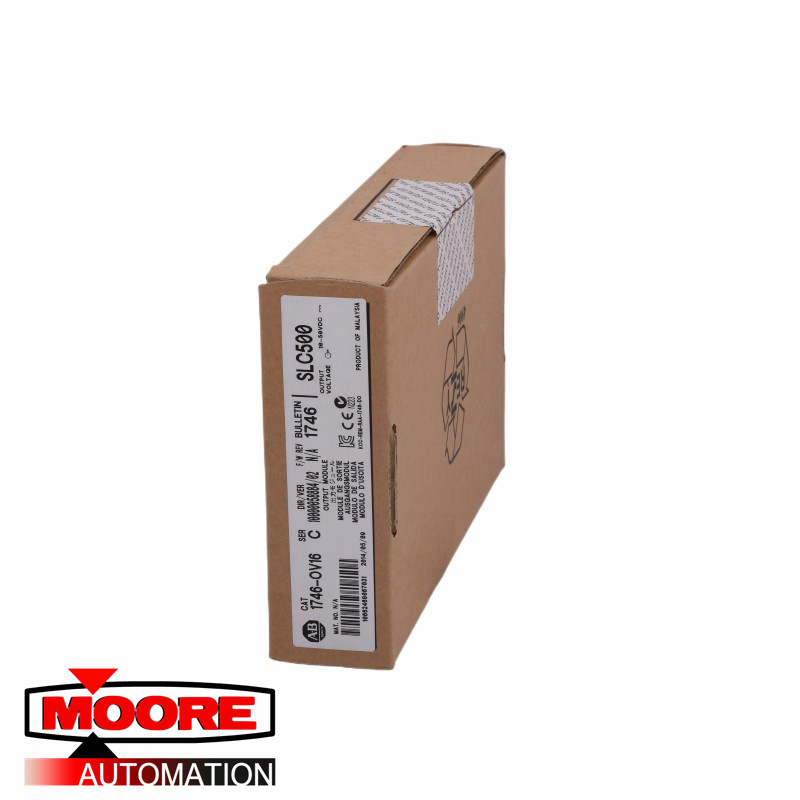

AB 1746-OV16 SLC 16 Point Digital Output Module

1746-OV16

Allen Bradley SLC 16 Point Analog Input Module

-------------------------------------------------------------

-------------------------------------------------------------

Product Description

The 1746-OV16 is an Allen-Bradley manufacture discrete output module. This module is provided with Sixteen (16) output channels in One (1) channel group. It is a sinking output module that delivers 10-50VDC output voltage range with minimum output of 24VDC. This module is ideally used to energize DC operated electrical loads such as relay coils, indicating and sounding devices.

The 1746-OV16 has a backplane current consumption of 0.270 Amperes at 5VDC with OFF-state leakage current of 1 mA and minimum load current of 1 mA as well. Each channel of this output module has a signal delay of 0.1 ms for ON to OFF transition and 1.0 ms for OFF to ON transition. The module’s continuous output current per point is 0.50 A at 30 °C (86 °F) and 0.25 A at 60 °C (140 °F) while the continuous output current per module is 8.0 A at 30 °C (86 °F) and 4.0 A at 60 °C (140 °F). This module exhibits a maximum On-state voltage drop 1.2V at 0.5 A.

The 1746-OV16 has a Surge current per point of 3.0 A for 10 ms that is repeatable once every 1 second 30 °C (86 °F) and 2 seconds repeatability at 60 °C (140 °F).
