AB 1734-AENT POINT I/O Ethernet Network Adaptor

Technical Specifications for 1734-AENT

About  1734-AENT

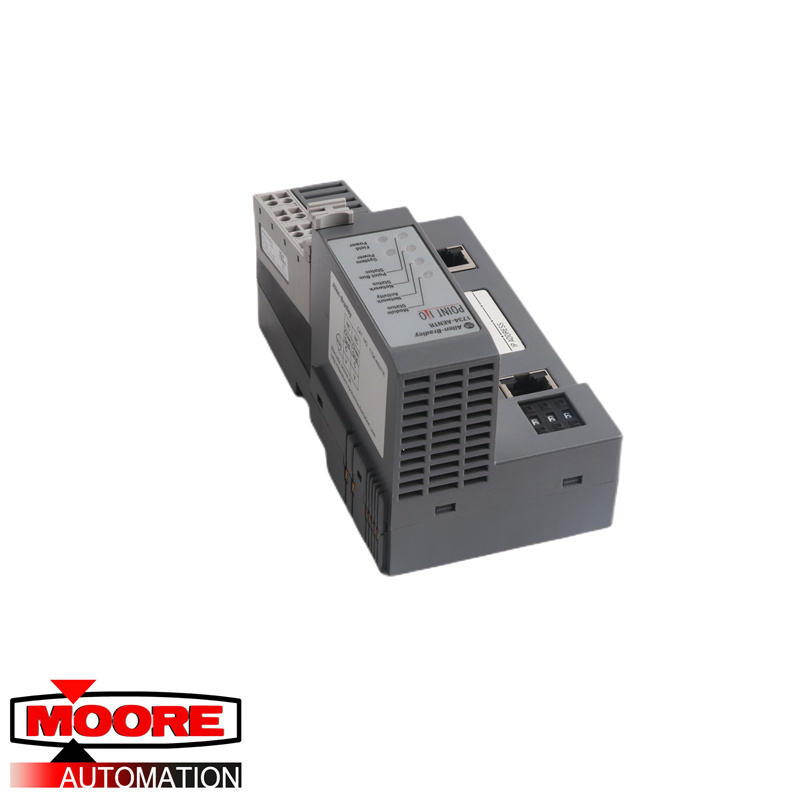

The Allen-Bradley 1734-AENT is a POINT I/O Ethernet I/P communication adapter. This module is part of the bulleting 1734 POINT I/O Product family, enabling a POINT I/O rack to exchange real-time I/O data to the master controller in the Ethernet I/P network. It interfaces POINT I/O modules and facilitates transfer not only I/O but diagnostic information as well.

The 1734-AENT has a built-in Ethernet communication port, with RJ45 physical interface. This port supports transmission speed of 10/100 Mbps in half or full-duplex operation. It comes with auto-negotiation capability, eliminating the need to specifically set the transmission rate of the module. The 1734-AENT connects the POINT I/O rack in star and tree topology. It uses Category 5 cable, Shielded or unshielded wires, installed with RJ45 connector on both ends of the cable.

The 1734-AENT is provided with LED status indicators used for monitoring the operation of the module and diagnosing in the event of module fault. These indicators include Three (3) red/green status indicators located on the CPU to indicate Module, Network and POINTBus status.

The 1734-AENT is supplied with 24V DC voltage to energize the module with field bus power supply current of 10 A. The acceptable supply range of the 1734-AENT is 10-28.8VDC. The 1734-AENT has an integral Reverse Polarity Protection.

The 1734-AENT may be installed up to 63 POINT I/O modules or maximum of 504 input and output points. Expansion power supplies may be installed to provide sufficient POINTBus current to the modules installed in the POINT I/O rack. One (1) expansion power supply may supply power to a maximum of 17 modules.
