Brand :
PLCPart Number :
1336-MCB-SP1 74100-071-51Weight :
0.5 kgDimension :
37.5x23.2x2.3cmCountry of Origin :
USAHS Code :
8537101190Description :
PC BOARD MAIN CONTROL
Product Description:

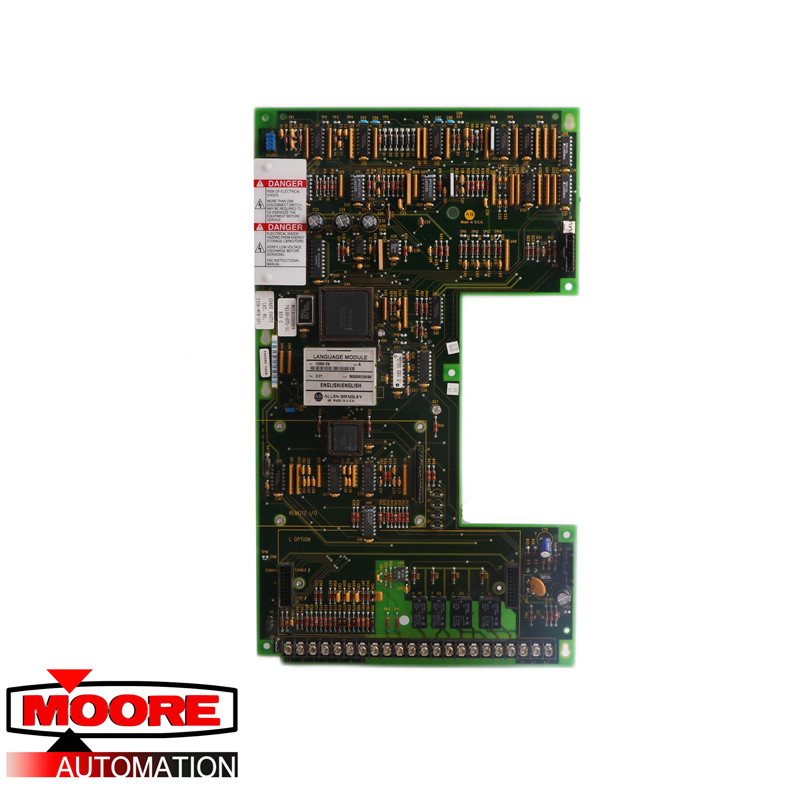

The 74100-071-51 1336S Main Control Board by Allen-Bradley is a main control board for the Allen-Bradley 1336 Plus drive, it is an integral component of the drive’s circuit board platform, and it controls every operation of the drive. The board houses the control interface board, and it is connected to the control interface board through 2 captive screws, and it is itself installed on the circuit board platform through a main control board mounting plate. The 74100-071-51 main control board is installed on the mounting plate first by attaching the main control board onto the mounting plate, and second by tightening it to the mounting plate via 5 fastening screws. The J1, the J2, the J6, the J8, and the 8-pin connector from the mounting plate are then connected to the main control board, and all wires from the terminal block (TB2) are also connected.
