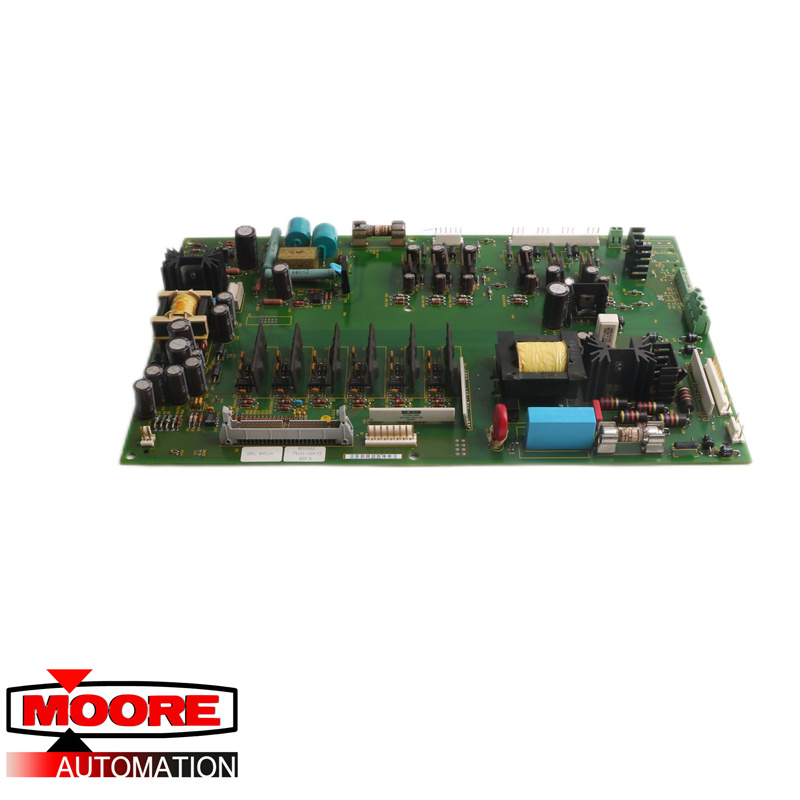

AB | 1336-BDB-SP29C 74101-169-53 | PC BOARD GATE DRIVE 460VAC 75HP

The 1336-BDB-SP29C board is a PCB gate drive board that is manufactured by Allen-Bradley/Rockwell Automation. It is a spare part for Allen-Bradley 1336 460 Volts PLUS, PLUS II, FORCE, IMPACT, and REGEN drives. The 1336-BDB-SP29C PCB gate drive board is a board that both mechanically supports and electrically connects electronic or electrical components. It uses conductive tracks and pads and several other features to make these connections, and these features are etched on 1 or more sheets of copper and they are laminated onto or between layers that are made out of a non-conductive material. Note that the Allen-Bradley 1336-BDB-SP29C PCD gate drive board is obsolete and has been replaced by the Allen-Bradley 1336-BDB-SP29D PCB gate drive board.
