Brand :
SIEMENSPart Number :
6SL3225-0BE33-7UA0Weight :
14 kgDimension :
27.5cm x 49.9cm x 20.4cmCountry of Origin :
GERMANYHS Code :
8537101190Description :

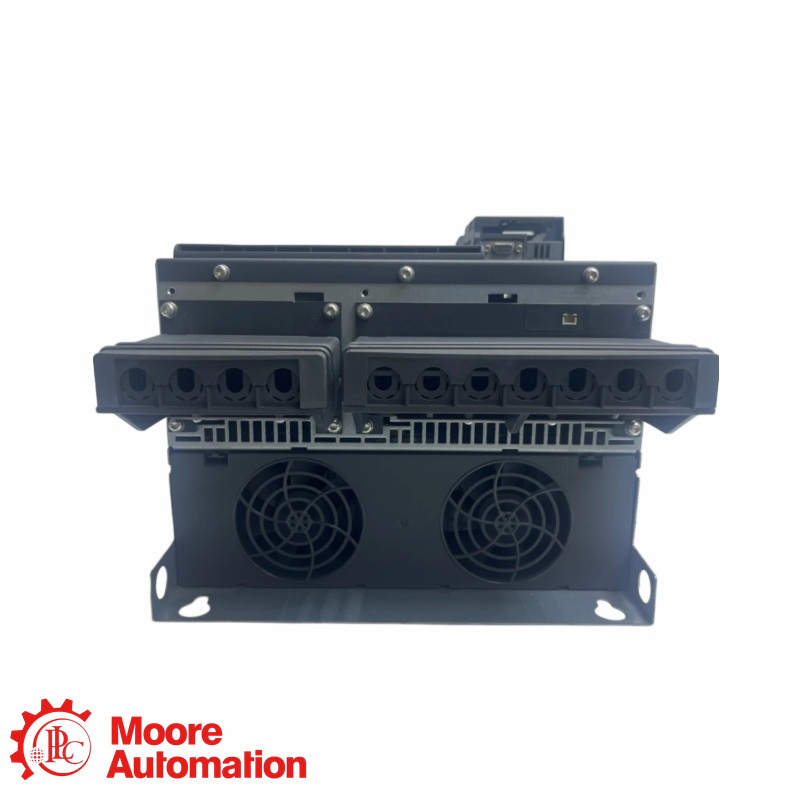

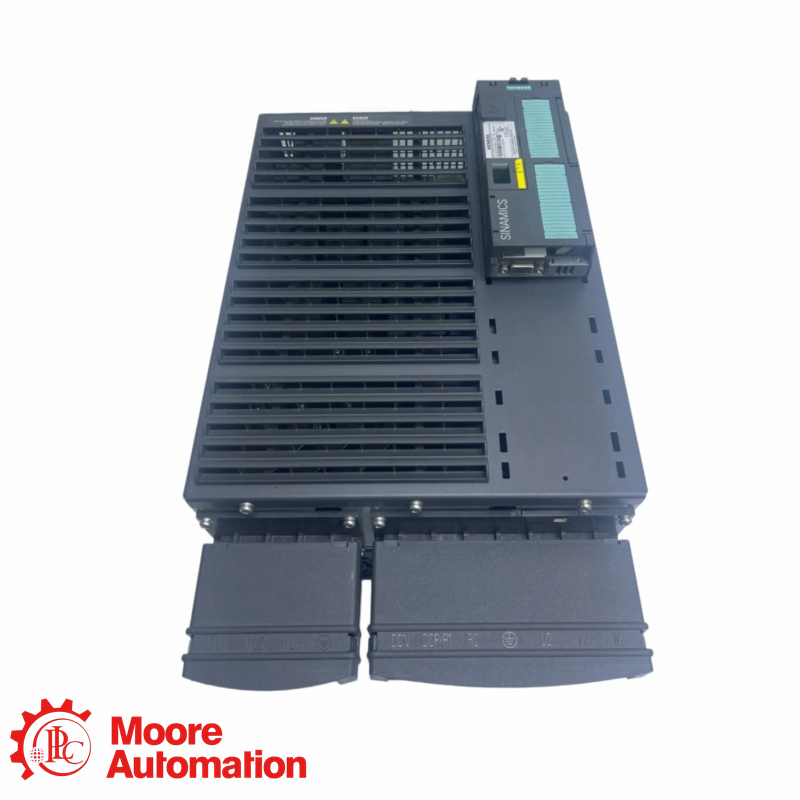

Siemens SINAMICS G120 POWER MODULE
|
Contact Sales Manager Beasty |
Whatsapp：+86 18030235312 |
|
Email：sales8@askplc.com |
|
PROFINET Version |
V2.3 |
|
PROFINET Unit Type |
PROFINET IO Device |
|
Fieldbus I/O Data Size |
Input: up to 24 bytes; Output: up to 24 bytes |
|
PROFINET Telegram Type |
Standard Telegram 1, 20, 350, 352, etc. (Max. 12 Words) |
|
Power Supply Voltage |
24 VDC, 20.4 to 28.8 VDC |
|
Weight and Dimension |
14.00 kg (30.86 lb); 27.5cm x 49.9cm x 20.4cm (W x H x D) |
|
FAQ |
|
Q1: Does this item include the Control Unit (CU)? |
|
A:No. This is a Power Module only. A separate Control Unit (e.g., CU240E-2) is required to operate. |
|
|
|
Q2: Does it require an external braking resistor? |
|
A: No. The PM250 features built-in regenerative technology that feeds braking energy directly back into the grid. |
|
Q3: What are the dual power ratings for this module? |
|
A: No. The PM250 features built-in regenerative technology that feeds braking energy directly back into the grid. |
|
|
|
Q4: Is this product brand new and original? |
|
A:Yes. We only sell 100% brand new, factory-sealed Siemens products in their original packaging. |
|
Parameter |
Specifications |
|
Part number |
6SL3225-0BE33-7UA0 |
|
Series |
SIEMENS SINAMICS G120 |
|
Type |
Power Module PM250 (Regenerative) |
|
Frame Size |
FSE |
|
Power Rating |
45 kW (Light Overload) / 37 kW (High Overload) |
|
Output Current |
90 A (LO) / 75 A (HO) |
|
Voltage |
3AC 380 V ... 480 V (+10% / -10%) |
|
Frequency |
47 ... 63 Hz |
|
Extensions |
Supports BOP-2 / IOP-2 panels & SD cards |
|
Protection |
IP20 / UL Open Type |
