The F7130 is a power supply module for the HIMA PES H41q system.
Brand :
HimaPart Number :
F 6215Weight :
0.2 kgDimension :
2x19x12.8cmCountry of Origin :
USAHS Code :
8537101190Description :
8 Fold Analog Input Module
Brand
HIMA
Part number
F 6215
Origin
USA
Description
8 Fold Analog Input Module
Shipping Port
Xiamen，China
Payment
T/T
Lead Time
In stock
Shipment
DHL,UPS,FEDEX,TNT,EMS,SF
Service
One-year warranty
Contact Below to Get Best Price
Contact-- Frida
Email--sales5@mooreplc.com
Mobile(WhatsApp)-- +86 15359408275

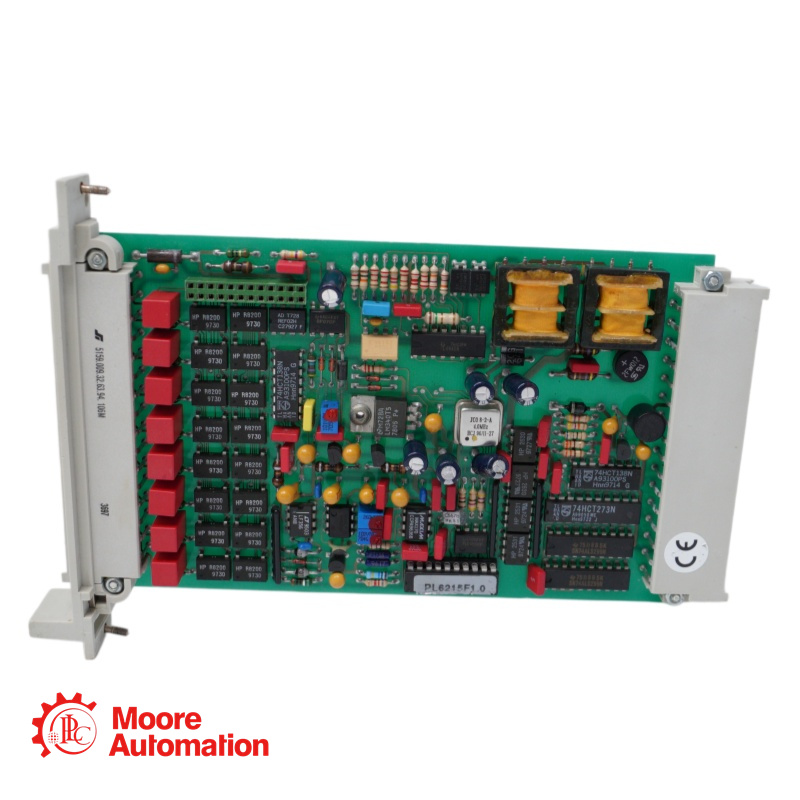

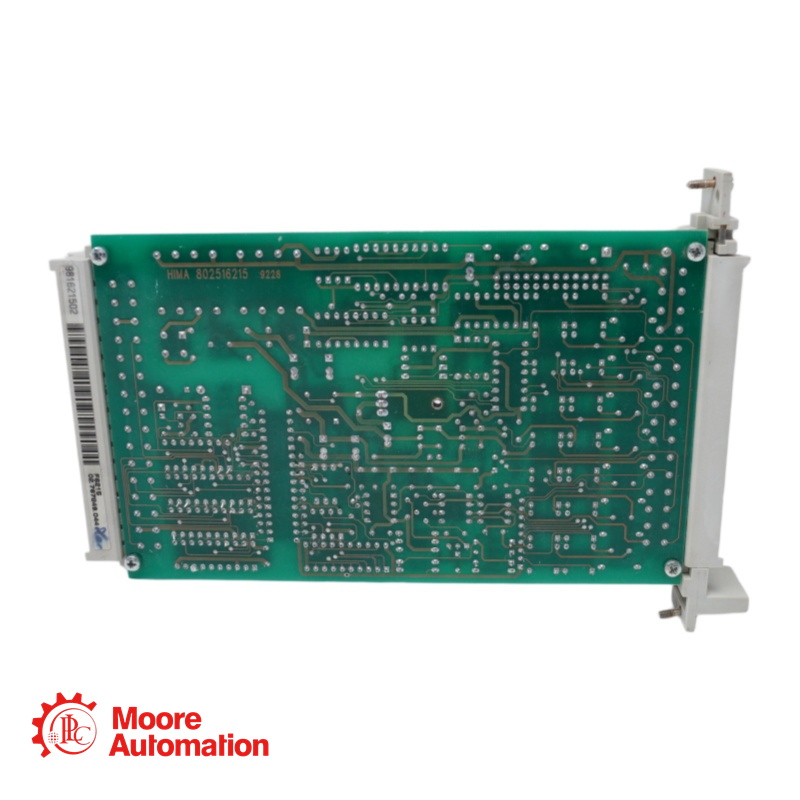

Description of F 6215
The F6215 is an 8-fold analog input module for the HIMA system. It supports:
Voltage inputs: 0…1 V, 0…5 V, 0…10 V
Pt 100 inputs (resistance temperature detector)
Current inputs: 0/4…20 mA
Parameter
Safety isolation to the plant
Galvanic isolation between the inputs
Resolution: 12 bits
Number of channels:8
Input voltage range:0…1.06 V (approx. 6% overflow)
Digital values:0 mV/V = 0; 1 V = 3840
Input resistance (voltage):min. 1 MΩ
Shunt for current input:50 Ω, 0.05%, 0.125 W, T<10 ppm/K (part no. 00 0710500)
Time constant input filter:approx. 2.2 ms
Conversion time (8 channels):max. 4 ms
Basic error:0.1% at 25°C
Operating error:0.3% at 0…+60°C
FAQ
What types of inputs does the F6215 support?
A: Voltage (0…1/5/10 V), Pt100, and current (0/4…20 mA).
What is the resolution of the module?
A: 12 bits.
Is there isolation between inputs?
A: Yes, there is galvanic isolation between the inputs and safety isolation to the plant.
What is the conversion time?
A: Maximum 4 ms for all 8 channels.
What is the space requirement?
A: 4 TE (spacing units).
What are the power requirements?
A: – 5 VDC: 100 mA
– 24 VDC: 140 mA
Benefits
The product offers a number of benefits, including:
· Wide input voltage range
· High output current
· Overvoltage protection
· Undervoltage protection
· Short-circuit protection
· Safety approvals
· Compact and lightweight design
