/792414506-04 2-Wire Vibration Transmitter for Bently Nevada 3300 XL NSV

792414506-04 2-Wire Vibration Transmitter

792414506-04 2-Wire Vibration Transmitter for Bently Nevada 3300 XL NSV

3300 XL NSV · 2-WIRE TRANSMITTER

792414506-04

The 792414506-04 is a Bently Nevada 2-wire vibration transmitter for the 3300 XL NSV proximity measurement system.

OUTPUT4-20 mA

POWER+12 to +35 VDC

RANGE0-100 µm p-p

CABLE1 metre

MANUFACTURERBently Nevada · Baker Hughes

CONDITION / WARRANTYOriginal New · One-Year Warranty

DATA SOURCEPhoto-Verified Nameplate

VERIFICATION● Product photos and videos provided after inquiry

REQUEST A QUOTE

✉ EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

BENTLY NEVADA NSV ↗ ● PRODUCT-SPECIFIC VERSION

2-WIRE VIBRATION TRANSMITTER

792414506-04

Bently Nevada 3300 XL NSV Transmitter

MEASUREMENT ROLE

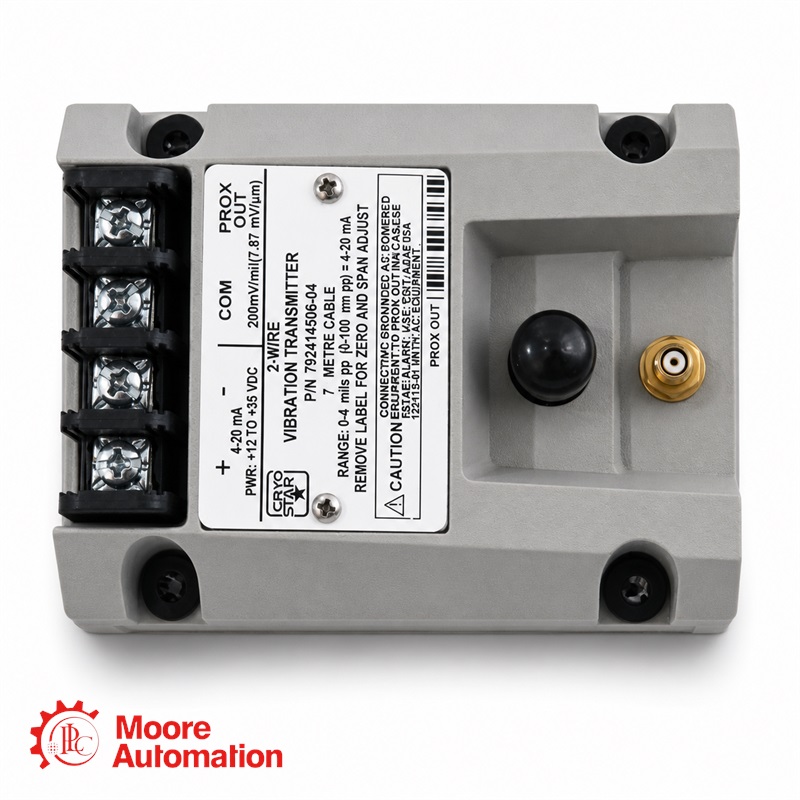

792414506-04 converts a proximity vibration signal into a 4-20 mA two-wire output. The supplied nameplate specifies 200 mV/mil (7.87 mV/µm) at PROX OUT.

SYSTEM RELATIONSHIP

The supplied product label identifies 792414506-04 as a Bently Nevada two-wire vibration transmitter for a 3300 XL NSV measurement chain. Confirm the complete label and connected NSV components before replacement.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

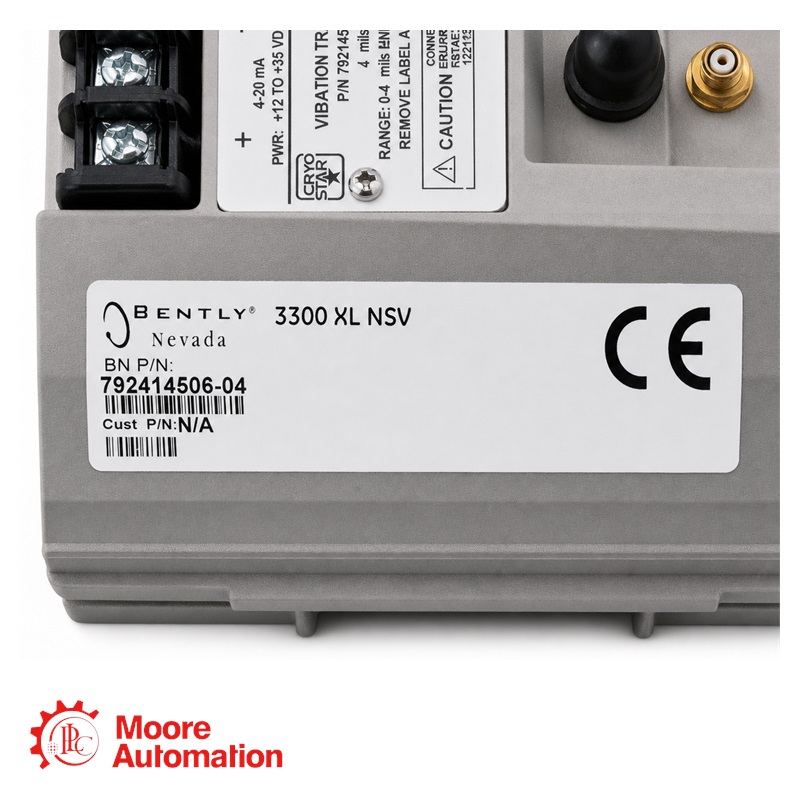

NAMEPLATE DATA

What the product label confirms

792414506-04

Part numberBently Nevada

2-WIRE

TransmitterProduct type

4-20 mA

OutputSignal output

+12 to +35 VDC

Power supplyNameplate value

200 mV/mil

PROX OUT7.87 mV/µm

1 metre

CableNameplate marking

VERIFIED PRODUCT AND MANUFACTURER-REFERENCE DATA

Technical Specifications

3300 XL NSV System ↗

792414506-04

Engineering data at a glance

Click “+” to expand more specifications.

OUTPUT4-20 mA

POWER+12 to +35 VDC

RANGE0-100 µm p-p

CABLE1 metre

Verified from the supplied product nameplate.

Compatibility verificationConfirm the complete label, connected 3300 XL NSV probe, extension cable and Proximitor Sensor before replacement.

General Information −

Product type2-Wire Vibration Transmitter

Part number792414506-04

Associated systemBently Nevada 3300 XL NSV

Cable marking1 metre

Nameplate Electrical Data ＋

Signal output4-20 mA

Power supply+12 to +35 VDC

PROX OUT scale200 mV/mil (7.87 mV/µm)

Measurement range0-100 µm peak-to-peak

AdjustmentZero and span access behind removable label

3300 XL NSV System Data ＋

Official system componentsNSV probe, NSV extension cable and XL NSV Proximitor Sensor

System linear range1.5 mm (60 mil)

Recommended gap1.0 mm (40 mil)

System scale factor7.87 V/mm (200 mV/mil)

Frequency response0 to 10 kHz typical (+0, −3 dB)

System length5 or 7 m including extension cable

Environment and Certification ＋

NSV probe operating range−52°C to +177°C

Extension cable range−52°C to +177°C

Proximitor operating range−52°C to +100°C

Approval noteVerify product-specific approvals for the ordered configuration

Source: Product nameplate supplied by the customer; Bently Nevada 3300 XL NSV Proximity Transducer System, Document 147385, Rev. R. Series-level values apply under the manufacturer’s stated test conditions.

FAQ

Questions Buyers Ask Most

What is the 792414506-04?＋

792414506-04 is identified on the supplied product label as a Bently Nevada 2-wire vibration transmitter with a 4-20 mA output. The label specifies a +12 to +35 VDC power supply.

How does 792414506-04 relate to the 3300 XL NSV system?＋

792414506-04 is a Bently Nevada transmitter associated with the 3300 XL NSV system. The official NSV system consists of a probe, extension cable and Proximitor Sensor; verify the complete connected measurement chain before replacement.

What range and scale are printed on the nameplate?＋

The nameplate shows a range of 0-100 µm peak-to-peak and a PROX OUT scale of 200 mV/mil (7.87 mV/µm).

Can another NSV transmitter automatically replace 792414506-04?＋

No. Compare the complete nameplate, power, signal range, connected probe system and application before replacement.

What should I provide for a quotation?＋

Send the complete product label, clear photos, connected 3300 XL NSV component details, required quantity and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete label and system details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Manuals and Official References for
792414506-04

Official manufacturer reference for the Bently Nevada 3300 XL NSV Proximity Transducer System associated with this transmitter.

3300 XL NSV Proximity Transducer System

Bently Nevada Document 147385 Rev. R covers the NSV probe, extension cable and Proximitor Sensor, system performance, applications and ordering information.

OFFICIAL DATASHEET

792414506-04 Product Information

A public official datasheet for part number 792414506-04 was not located. Please contact Product Specialist Frida for product information.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

Technical statements are limited to the supplied product nameplate and official Bently Nevada / Baker Hughes manufacturer documentation. No third-party product data is used.

3300 XL NSV SYSTEM RELATIONSHIP

How 792414506-04 Fits into the 3300 XL NSV Measurement Chain

Bently Nevada defines the official NSV transducer system as an NSV probe, NSV extension cable and 3300 XL NSV Proximitor Sensor. The supplied 792414506-04 label identifies a separate 2-wire vibration transmitter connected at PROX OUT.
