Bently Nevada 9200-09-01-06-00 15 Hz Isolated-Base Velocity Transducer

Product Overview

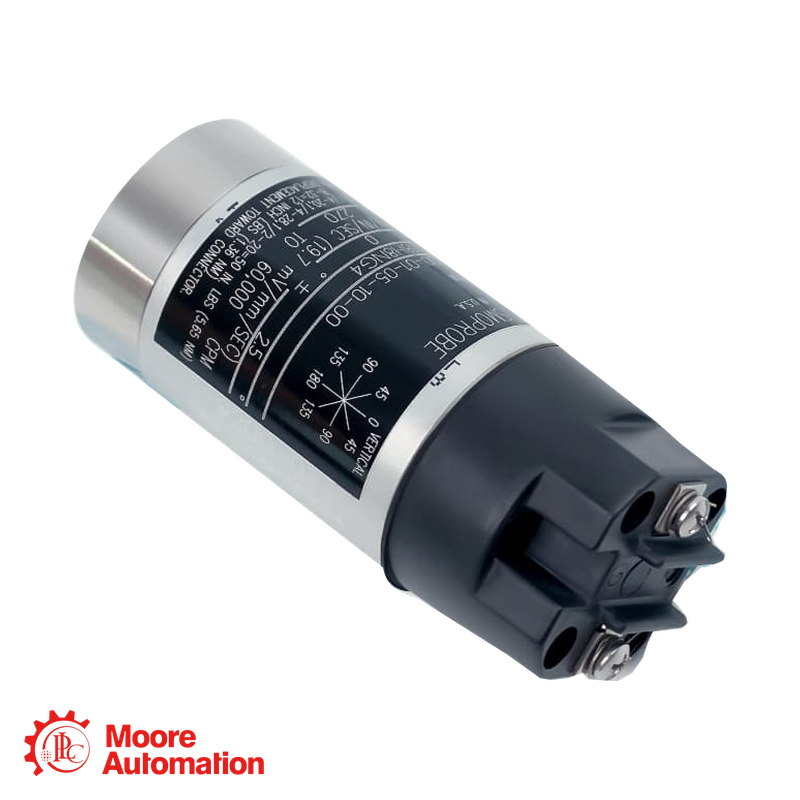

The Bently Nevada 9200-09-01-06-00 is a two-wire moving-coil Seismoprobe Velocity Transducer for measuring absolute bearing-housing, casing, and structural vibration. This configuration combines a 15 Hz minimum operating frequency, a top-mounted connector without an integral cable, and an isolated circular 1/4-20 UNC mounting base. Its output voltage is directly proportional to vibration velocity.

Model Number Breakdown

Official ordering format: 9200-AA-BB-CC-DD
9200: Bently Nevada two-wire Seismoprobe Velocity Transducer.
AA – 09: 0° ±180° mounting orientation with a 15 Hz (900 cpm) minimum operating frequency.
BB – 01: Top-mounted connector; no integral cable.
CC – 06: Isolated circular mounting base with a 1/4-20 UNC stud.
DD – 00: No agency approvals.

Technical Information

Industries Served

• Power generation facilities
• Oil and gas processing plants
• Chemical and petrochemical operations
• Pulp and paper production lines
• Water and wastewater facilities
• General industrial manufacturing

Application Areas

-Continuous casing-vibration monitoring on rotating machinery
-Periodic vibration checks with diagnostic instruments
-Bearing-housing vibration measurement
-Machine-structure vibration measurement
-Portable vibration measurement applications

Key Highlights

Frequently Asked Questions

1. What does the Bently Nevada 9200-09-01-06-00 measure?
It measures absolute bearing-housing, casing, and structural vibration and provides an output proportional to vibration velocity.

2. What is the minimum operating frequency of this configuration?
The 09 option provides a 15 Hz, or 900 cpm, minimum operating frequency.

3. Does this model include an integral cable?
No. The 01 connector option specifies a top-mounted connector without an integral cable.

4. What mounting base is provided by the 06 option?
The 06 option specifies an isolated circular mounting base with a 1/4-20 UNC stud.

5. Can the 9200 be used for continuous vibration monitoring?
Yes. The 9200 family is suitable for continuous monitoring and periodic diagnostic measurements.
