Product Overview

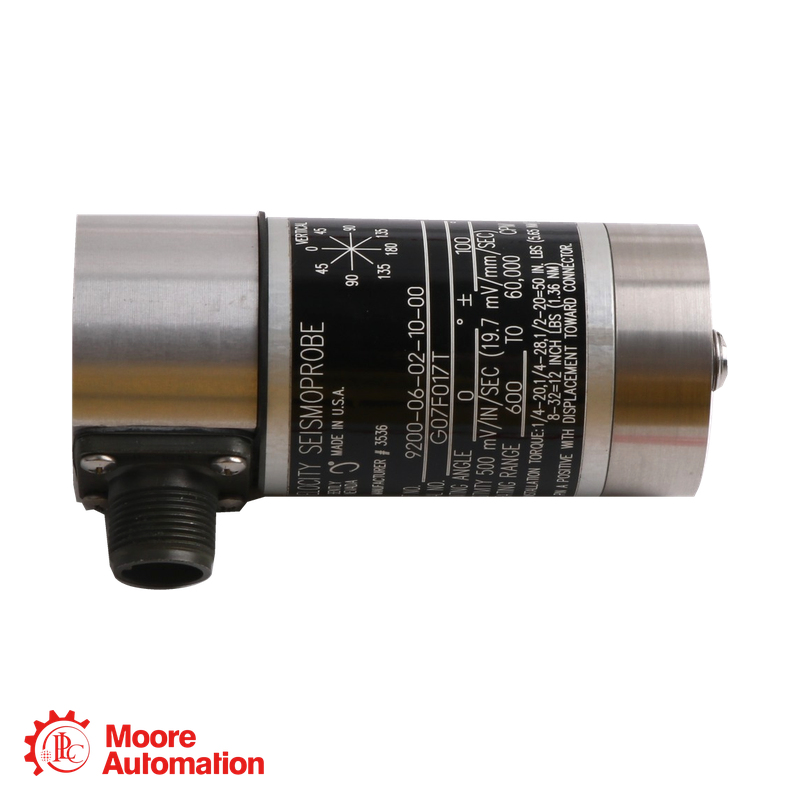

The Bently Nevada 9200-06-02-05-00 is a two-wire moving-coil Seismoprobe Velocity Transducer for absolute bearing-housing, casing, and structural vibration measurement. This configuration provides a 10 Hz minimum operating frequency, a side-mounted connector without an integral cable, and a no-base 1/2-20 UNF-3A stud arrangement. Its output voltage is directly proportional to vibration velocity.

Model Number Breakdown

Official ordering format: 9200-AA-BB-CC-DD
9200: Bently Nevada two-wire Seismoprobe Velocity Transducer.
AA – 06: 0° ±100° mounting orientation with a 10 Hz (600 cpm) minimum operating frequency.
BB – 02: Side-mounted connector; no integral cable.
CC – 05: No mounting base; 1/2-20 UNF-3A stud.
DD – 00: No agency approvals.

Technical Information

Manufacturer	Bently Nevada
Product Type	Two-wire moving-coil Seismoprobe Velocity Transducer
Mounting Orientation	0° ±100°
Minimum Operating Frequency	10 Hz (600 cpm)
Connector / Cable Option	Side-mounted connector; no integral cable
Mounting Arrangement	No base; 1/2-20 UNF-3A stud
Sensitivity	20 mV/mm/s (500 mV/in/s), ±5%
Frequency Response	10 to 1,000 Hz; +0, -3 dB typical
Dynamic Operating Range	2.54 mm (0.100 in) peak-to-peak maximum displacement
Velocity Range	25 mm/s (1 in/s) at 100 Hz with a 10 kΩ load
Coil Resistance	1.25 kΩ ±5%
Operating and Storage Temperature	-29°C to +121°C (-20°F to +250°F)
Relative Humidity	Up to 95%, non-condensing

Industries Served

• Power generation facilities
• Oil and gas processing plants
• Chemical and petrochemical operations
• Pulp and paper production lines
• Water and wastewater facilities
• General industrial manufacturing

Application Areas

-Continuous casing-vibration monitoring on rotating machinery
-Periodic vibration checks with diagnostic instruments
-Bearing-housing vibration measurement
-Machine-structure vibration measurement
-Portable vibration measurement applications

Key Highlights

Key Highlight	Details
Absolute Vibration Measurement	Measures bearing-housing, casing, and structural vibration relative to free space.
Direct Velocity Output	Produces an output voltage directly proportional to vibration velocity.
10 Hz Configuration	The 06 option provides a 10 Hz minimum operating frequency.
Side-Mounted Connector	The 02 option uses a side-mounted connector without an integral cable.
Stud-Mount Arrangement	The 05 option uses a no-base 1/2-20 UNF-3A stud.
No External Power Required	The moving-coil design supports portable measurement applications.

Frequently Asked Questions

1. What does the Bently Nevada 9200-06-02-05-00 measure?
It measures absolute bearing-housing, casing, and structural vibration and generates a velocity-proportional output signal.

2. What is the minimum operating frequency of this configuration?
The 06 option provides a 10 Hz, or 600 cpm, minimum operating frequency.

3. Does this model include an integral cable?
No. The 02 connector option specifies a side-mounted connector without an integral cable.

4. What mounting arrangement does the 05 option provide?
The 05 option provides no mounting base and uses a 1/2-20 UNF-3A stud.
