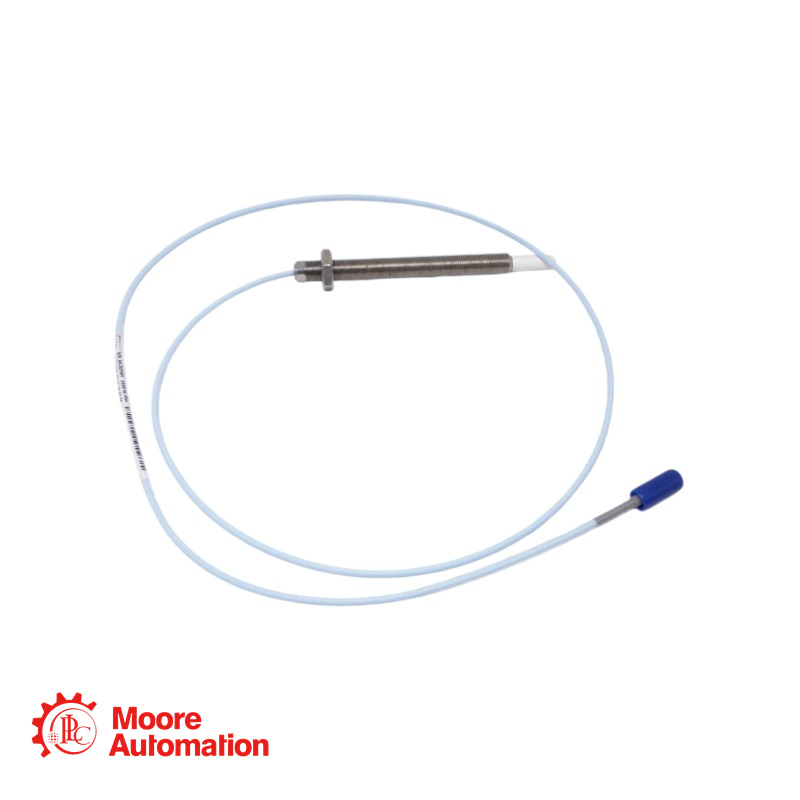

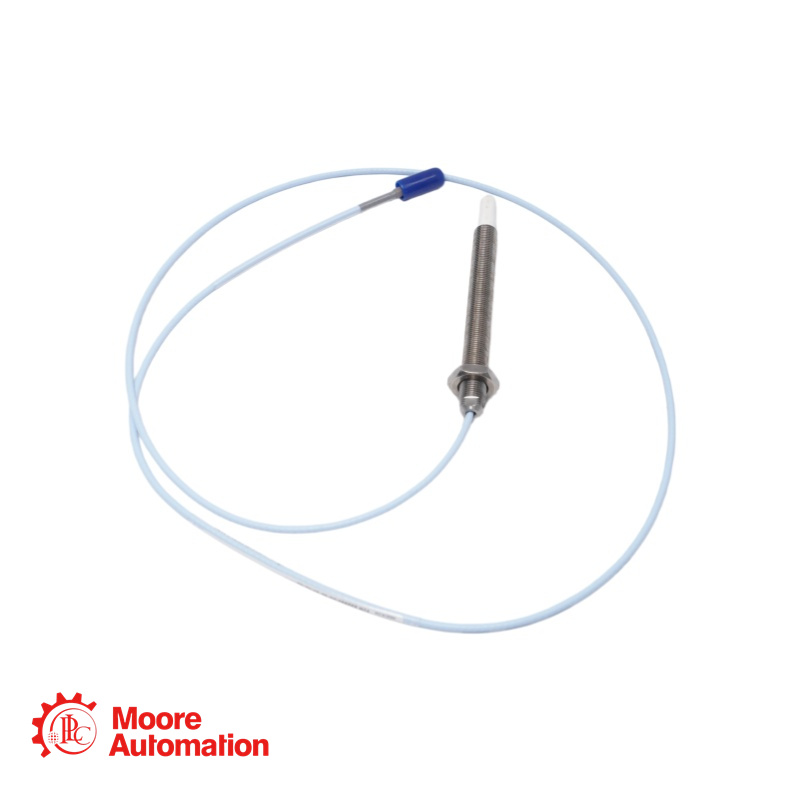

330905-00-10-05-02-CN is 3300 NSv Probe, M10X1 thread, without armor
Brand :
Bently NevadaPart Number :
330905-00-10-05-02-CNWeight :
0.05kgDimension :
1.8x1.6x66cmCountry of Origin :
USAHS Code :
8537101190Description :
NSv Proximity Probe, Metric
330905-00-10-05-02-CN Description
330905-00-10-05-02-CN is 3300 NSv Probe, M10X1 thread, without armor.
The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:
Radial vibration and radial position measurements
Axial (thrust) position measurements
Tachometer and zero speed measurements
Phase reference (Keyphasor signals)
The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System. Upgrades from the 3300 RAM system to the 3300 XL NSv system may use the existing probe, extension cable, and monitoring.
330905-00-10-05-02-CN Specifications
Unthreaded Length Option: 0.0 mm
Overall Case Length Option:10 mm
Total Length Option:0.5 meter (20 in)
Connector and Cable-Type Option:Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option: in Chinese area
330905-00-10-05-02-CN FAQ
What does the "-CN" approval code indicate?
The "-CN" code indicates that this probe is certified for use in China with specific approvals from Chinese regulatory bodies, including CCC (China Compulsory Certification) and/or NEPSI (National Supervision and Inspection Center for Explosion Protection and Safety of Instrumentation) for hazardous location use.
What is the correct gap setting for this probe?
The recommended gap setting is 1.0 mm (40 mils) . The linear range extends from approximately 0.25 mm to 1.75 mm (10 to 70 mils) from the target.
What is the maximum thread engagement length for the M10 x 1 thread?
The maximum recommended thread engagement length is 15 mm . Exceeding this length may cause binding during installation.
What type of connector does this probe use?
It uses a gold-plated brass ClickLoc™ miniature coaxial connector (option "02"). This connector locks into place to prevent loosening due to vibration and ensures a reliable connection .
What is the difference between the 330905 and the 3300 RAM probe it replaces?
The 3300 NSv probe (including the 330905) is mechanically and electrically compatible with the previous 3300 RAM probe but offers increased chemical resistance and improved side-view characteristics.
What is the maximum tensile strength of the probe cable?
The maximum rated tensile strength is 220 N (50 lb) from the probe case to the probe lead.
