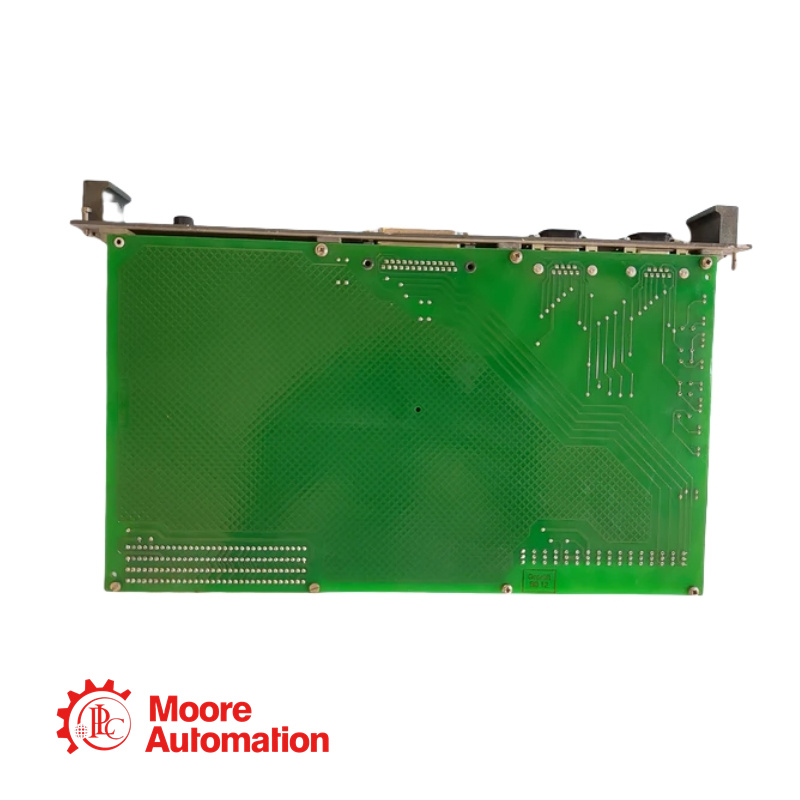

Brand :
ABBPart Number :
CCF10Weight :
0.24 KGDimension :
23.5x7.5x8cmCountry of Origin :
SwedenHS Code :
8537101190Description :
Coupling of external systemsProduct Details
|
Features
• Data exchange with external systems via Modbus RTU protocol (master); Supported function codes: FC 1, FC 2, FC 3, FC 4, FC 5, FC 6, FC 15, FC 16 and FC 8
• Hardware interfaces (optional): RS 422, RS 485, RS 232, TTY
• Baud rates: 300, 600, 1200, 2400, 4800, 9600, 19200
• Number of inputs: 230 (buffer addresses: 0 ... 229) • Number of outputs: 90 (buffer addresses: 700 ...789)
|
RS 422 / RS 485:
Interface design: EIA-Standard RS 485
1. Signal input level (differential voltage between RA/ RB): UEss > 200 mV
2. Common-mode voltage: UCom = - 7 ... + 12 V
3. Input resistance:RE = 12 kOhm
Signal output level (differential voltage between TA/ TB, CA/CB):
UASS = 1.5 V ... 5 V; 2.5 V typical
|
|
RS 232C:
Interface design:DIN 66 020 / V.24 / EIA standard RS 232C
1.Signal input level against GND: UE (pos.) = + 3 ... + 15 V; UE (neg.) = - 3 ... - 15 V
2. Signal input current: IE = 0.75 ... 3.75 mA
3. Input resistance: RE = 6.8 kOhm
4. Input capacity: CE < 0.1 nF
|
|
