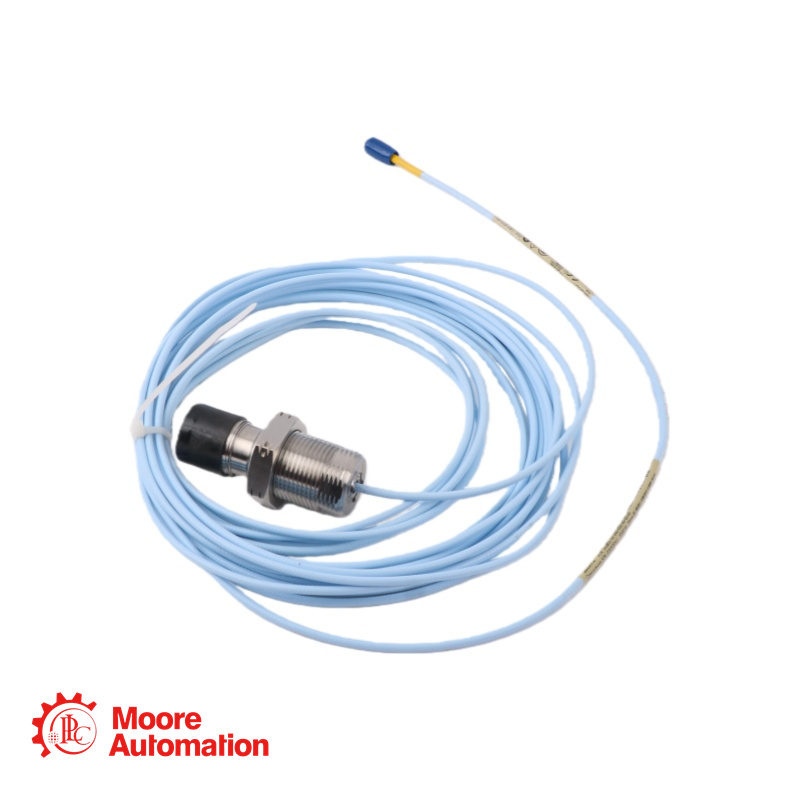

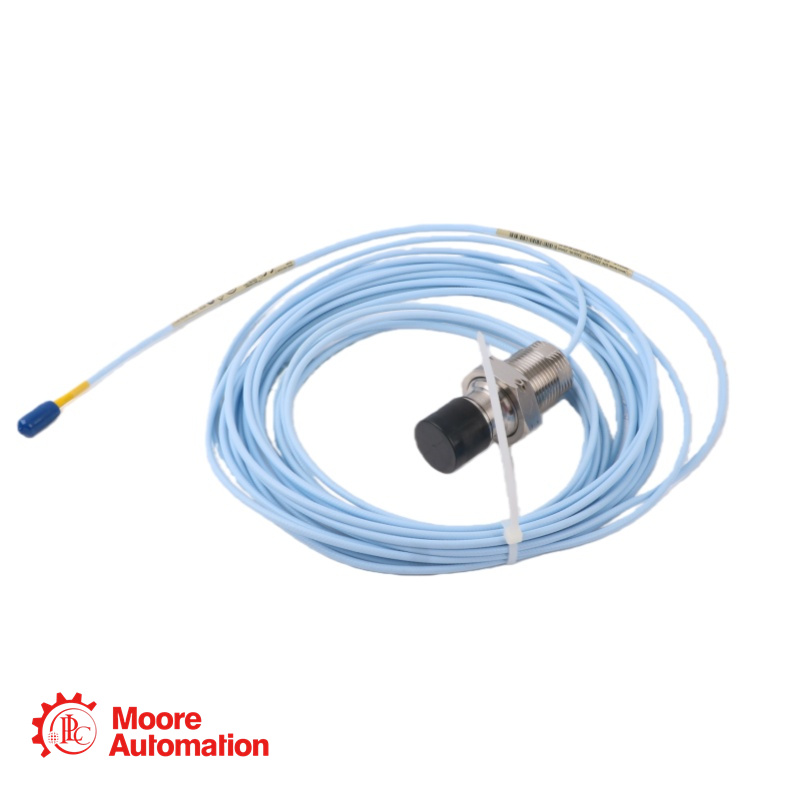

Bently Nevada 330851-02-000-050-50-01-CN Proximity Probe

Contact here to get quotation

Know Product Details

❖Probe Case Type Option (A): 02 = M30x2 Thread.
❖Unthreaded Length Option (B): 000 = 0 mm (Fully Threaded).
❖Overall Case Length Option (C): 050 = 50 mm.
❖Total Cable Length Option (D): 50 = 5.0 meters
❖Armor Option (E): 01 = Miniature coaxial ClickLoc connector with connector protector, standard cable
❖Agency Approval Option (F): CN = China‑specific certification

Probe Type: Standard Mount, Forward-Facing.
Thread Type: M30x2 Metric.
Armor: Yes (Stainless Steel Armor with PFA outer jacket).
Probe Tip Diameter: 25 mm.
Probe Tip Material: Polyetheretherketone (PEEK).
Probe Case Material: AISI 304 Stainless Steel.
Cable Type: High-Temperature 75 Ω Triaxial FluidLoc Cable with Perfluoroalkoxyethylene (PFA) Insulation.
Operating Temperature Range: Probe: -35°C to +200°C continuously, up to +250°C intermittently. Extension Cable & Sensor: -35°C to +200°C.
Linear Range: 12.7 mm (500 mils), from 0.63 mm to 13.33 mm from target.
Scale Factor (Average): 0.787 V/mm (20 mV/mil) nominal.
Frequency Response: 0 to 2.7 kHz.
Recommended Gap Setting: 7.0 mm (275 mils).
Cable Length Tolerance: +20% / -0% for 5m probes.

Frequently Asked Questions?

❖What specific "Multiple Approvals" (F=CN) does this probe 330851-02-000-050-50-01-CN carry?
A: The "CN" option typically means China‑specific certification.
❖Is this probe configuration commonly stocked for quick delivery?
A: Yes. For such Bently Nevada probe we usually have stock. If it is just out of stock, only 1-2 days can receive the goods and ship to you.
❖Is this 330851-02-000-050-50-01-CN orginal new one?

A: Yes! 330851-02-000-050-50-01-CN is brand new with one year warranty. Welcome to inquire our manager: Frida +86 15359408275 / sales5@mooreplc.com
