Bently Nevada 330104-00-10-20-01-CN 3300 XL 8 mm Proximity Probe

3300 XL · PROXIMITY PROBE

330104-00-10-20-01-CN

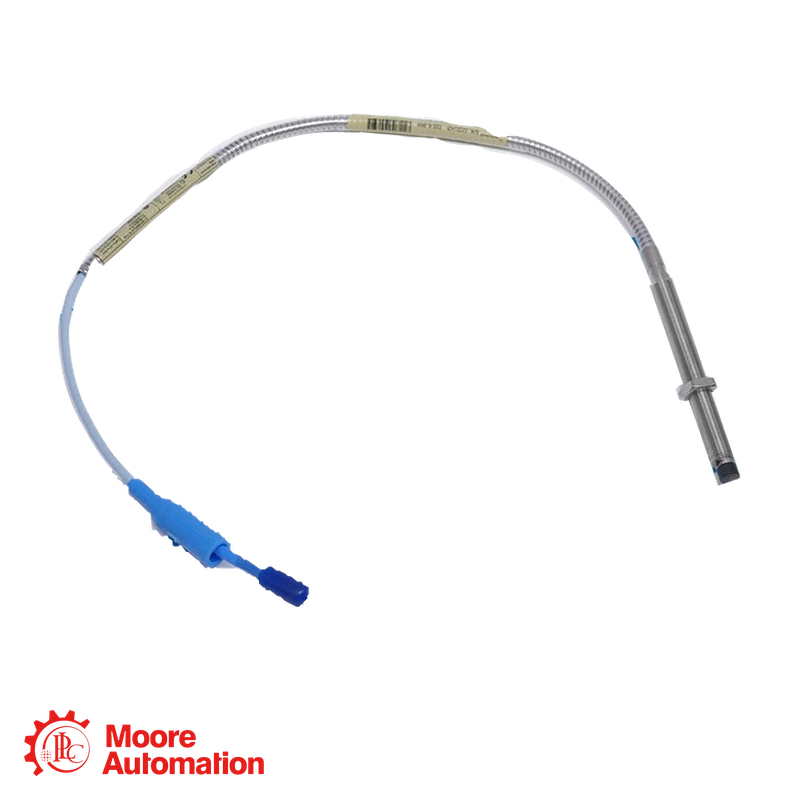

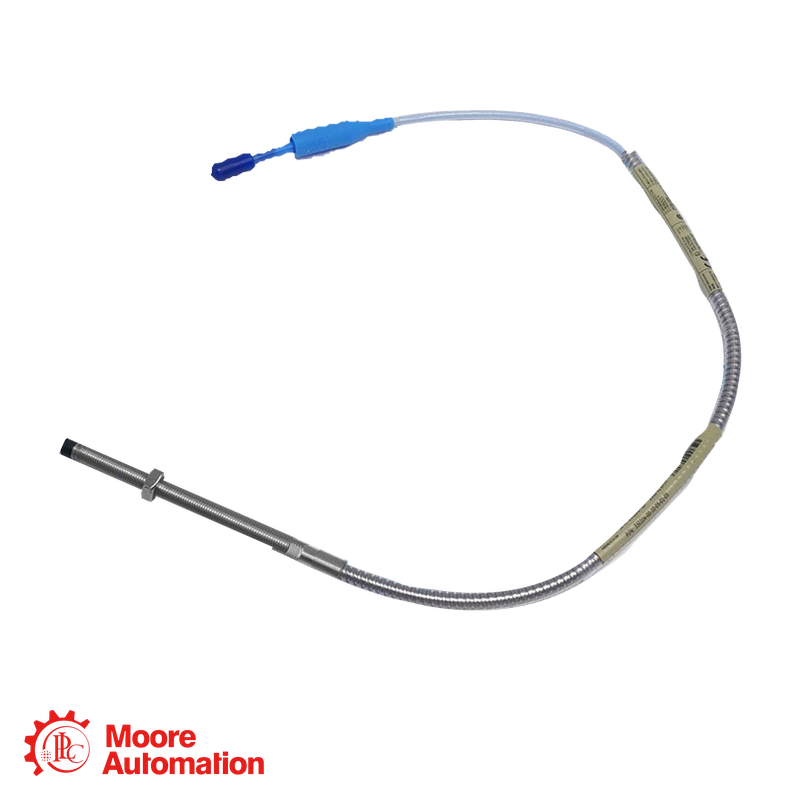

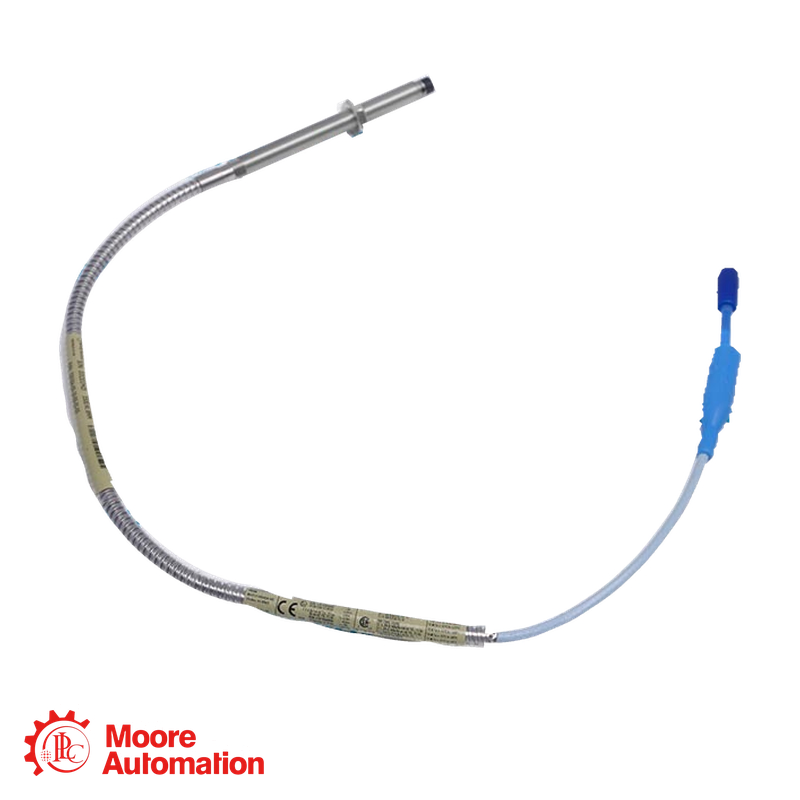

330104-00-10-20-01-CN — A Bently Nevada 3300 XL 8 mm Proximity Probe with M10 × 1 thread, armor, 2.0 metre total length, ClickLoc connector protection and the CN hazardous-area approval option.

THREADM10 × 1

ARMORWITH ARMOR

TOTAL LENGTH2.0 M

APPROVALCN

MANUFACTURERBently Nevada · Baker Hughes

CONDITION / WARRANTYOriginal New · One-Year Warranty

ISO CERTIFICATIONISO-Certified Product

VERIFICATION● Product photos and videos provided after inquiry

REQUEST A QUOTE

✉ EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

BENTLY NEVADA ● 3300 XL 8 MM PROXIMITY PROBE

3300 XL 8 MM PROXIMITY PROBE

330104-00-10-20-01-CN

M10 × 1 thread · With armor · 2.0 m total length · CN approval

3300 XL 8 mm Proximity Probe

PROXIMITY SENSING ROLE

330104-00-10-20-01-CN — This 330104 standard-mount probe provides the sensing interface for a matched Bently Nevada 3300 XL 8 mm Proximity Transducer System.

CONFIGURATION NOTE

330104 identifies the M10 × 1 standard-mount 8 mm probe with armor; 00 specifies 0 mm unthreaded length, 10 specifies 100 mm case length, 20 specifies 2.0 m total length, 01 specifies standard cable with ClickLoc protector, and CN specifies the China hazardous-area approval option.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

CONFIGURATION DECODING

Model code at a glance

330104

Base model3300 XL 8 mm probe · M10 × 1 · with armor

Unthreaded length0 mm

Case length100 mm

Total length2.0 metres (6.6 ft)

Cable / connectorStandard cable · ClickLoc protector

Approval optionChina hazardous-area approval

MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗

3300 XL 8 MM PROXIMITY PROBE

Engineering data at a glance

Click “+” to expand more specifications.

THREADM10 × 1

ARMORWITH ARMOR

TOTAL LENGTH2.0 M

APPROVALCN

Configuration from manufacturer ordering data.

Configuration check Confirm the complete order code, M10 × 1 thread, armor, unthreaded and case lengths, total cable length, ClickLoc connector option and CN approval before ordering.

General Information −

BrandBently Nevada

Part number330104-00-10-20-01-CN

Product type3300 XL 8 mm Proximity Probe

Product family3300 XL 8 mm Proximity Transducer System

ThreadM10 × 1

ArmorFlexible stainless-steel armor with FEP outer jacket

Physical Data ＋

Unthreaded length0 mm

Overall case length100 mm

Probe tip diameter8.0 mm (0.31 in)

Probe Configuration ＋

Total length2.0 metres (6.6 ft)

ConnectorMiniature coaxial ClickLoc with connector protector

Cable typeStandard 75 Ω triaxial FEP-insulated cable

Armor outside diameter7.67 mm (0.302 in)

Approval optionCN · China hazardous-area approval

System Performance ＋

With matching standard 3300 XL 8 mm components: 2 mm (80 mil) linear range, 7.87 V/mm (200 mV/mil) nominal scale factor, and 0 to 10 kHz frequency response under the manufacturer’s stated conditions.

Source: Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet, Part Number 141194, Rev. AN. System performance requires the correct probe, extension cable and Proximitor Sensor combination under the manufacturer’s stated conditions.

FAQ

Questions Buyers Ask Most

What is 330104-00-10-20-01-CN used for?＋

330104-00-10-20-01-CN is a standard-mount Bently Nevada 3300 XL 8 mm proximity probe with M10 × 1 thread, armor and a 2.0 metre cable.

What does the 330104-00-10-20-01-CN code specify?＋

For 330104-00-10-20-01-CN, 330104 identifies the M10 × 1 probe with armor; 00 is 0 mm unthreaded length, 10 is 100 mm case length, 20 is 2.0 m total length, 01 is standard cable with ClickLoc protector, and CN is the China hazardous-area approval option.

Can 330104-00-10-20-01-CN be substituted with a similar part number?＋

Do not substitute 330104-00-10-20-01-CN by appearance or family name alone. Compare the thread, armor, unthreaded and case lengths, total length, connector and approval suffix, and confirm the matched 3300 XL 8 mm system.

What do the M10 × 1 thread and armor on 330104-00-10-20-01-CN specify?＋

330104-00-10-20-01-CN uses the metric M10 × 1 probe-case thread and flexible stainless-steel armor with an FEP outer jacket.

What should I provide for a 330104-00-10-20-01-CN quotation?＋

Send the complete 330104-00-10-20-01-CN label, quantity, matched Proximitor Sensor and extension-cable details, required approval, and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete probe label and matched 3300 XL 8 mm extension cable and Proximitor Sensor details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Manuals and Official References for
330104-00-10-20-01-CN

Official manufacturer documentation for the Bently Nevada 3300 XL 8 mm Proximity Probe and its matched proximity transducer system.

Official manufacturer datasheet

Bently Nevada Datasheet 141194 identifies 330104 as the M10 × 1 standard-mount 8 mm proximity probe with armor. This order code specifies 0 mm unthreaded length, 100 mm case length, 2.0 m total length, standard cable with ClickLoc protector, and the CN China hazardous-area approval option.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

Technical statements and ordering-code meanings use Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet, Part Number 141194, Rev. AN, plus Approvals Quick Reference Guide 108M1756 for the CN suffix.

3300 XL 8 MM SYSTEM CONNECTION

How 330104-00-10-20-01-CN Fits into the 3300 XL 8 mm Transducer System

Bently Nevada is the manufacturer. 330104-00-10-20-01-CN is an M10 × 1 standard-mount 8 mm proximity probe with armor, a 2.0 metre standard cable, ClickLoc connector protection and the CN approval option. It forms the sensing end of a matched 3300 XL 8 mm system.

Bently Nevada · BRAND

Bently Nevada 3300 XL 8 mm SystemPRODUCT FAMILY · TRANSDUCER SYSTEM

SENSING ELEMENT

8 mm Probe Tip

The 8.0 mm probe tip is the sensing interface for radial vibration and position measurements in the matched system.

THREADED MOUNT

M10 × 1 Case

The metric M10 × 1 probe-case thread is paired with flexible stainless-steel armor and an FEP outer jacket.

CABLE CONNECTION

ClickLoc Interface

The 2.0 metre standard 75 Ω cable terminates in a miniature coaxial ClickLoc connector with connector protector.

System relationship: the probe, extension cable and Proximitor Sensor must be selected as a matched 3300 XL 8 mm system with the required total system length.

APPLICATION AREAS

Functions and integration points for 330104-00-10-20-01-CN

Radial Vibration Signal PathProvides the non-contact sensing interface used by matched systems for radial vibration measurement.

Axial Position Signal PathProvides the probe measurement used by matched systems for axial or thrust position monitoring.

APPLICATION CENTER 330104-00-10-20-01-CN 3300 XL 8 mm Proximity Probe

Keyphasor Signal PathSupports the matched 3300 XL 8 mm proximity-system sensing point used for Keyphasor measurements.

Fluid-Film Bearing MachinesProvides non-contact proximity sensing for fluid-film bearing machinery applications.
