Bently Nevada 330103-00-16-05-11-05 3300 XL 8 mm FluidLoc Proximity Probe
Bently Nevada 330103-00-16-05-11-05 3300 XL 8 mm FluidLoc Proximity Probe
Bently Nevada 330103-00-16-05-11-05 3300 XL 8 mm FluidLoc Proximity Probe

Bently Nevada 330103-00-16-05-11-05 3300 XL 8 mm FluidLoc Proximity Probe

BENTLY NEVADA · 3300 XL 8 MM FLUIDLOC PROXIMITY PROBE

330103-00-16-05-11-05

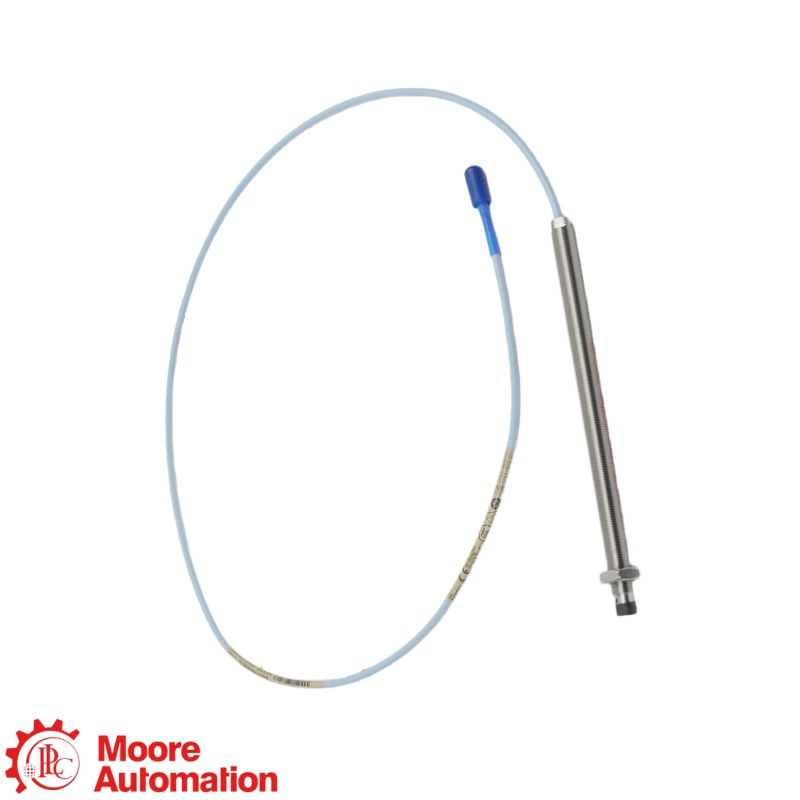

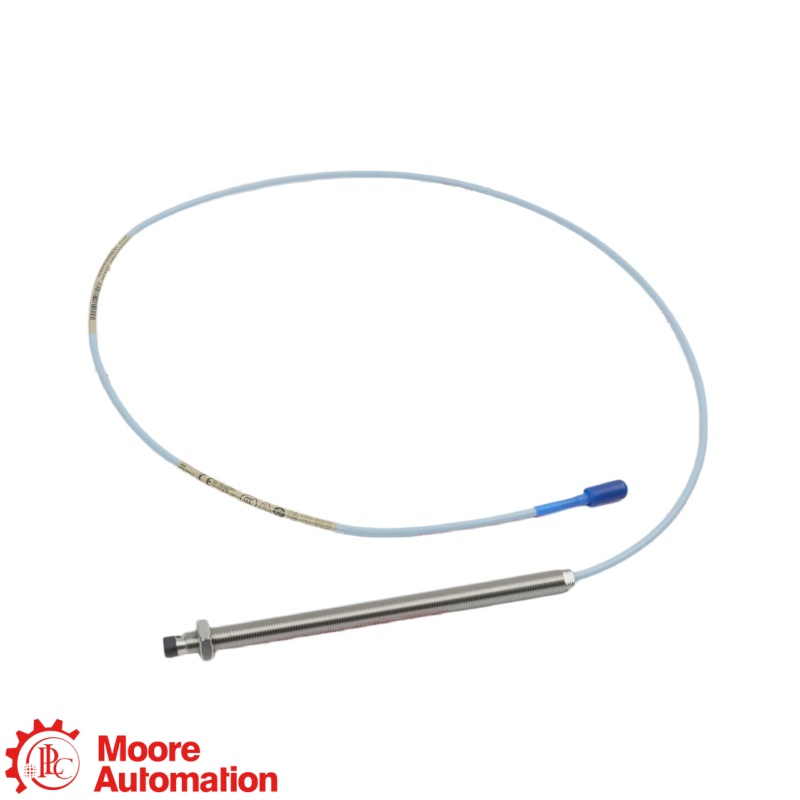

The 330103-00-16-05-11-05 is an M10 × 1 unarmored 3300 XL 8 mm probe with 160 mm case length, 0.5 m total length, FluidLoc cable, a protected ClickLoc connector and multiple approvals.

THREADM10 × 1
CASE LENGTH160 mm
TOTAL LENGTH0.5 m
CABLEFluidLoc + protector
MANUFACTURERBently Nevada
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Inquire Now
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3300 XL 8 MM FLUIDLOC PROXIMITY PROBE
3300 XL 8 MM PROXIMITY TRANSDUCER SYSTEM

330103-00-16-05-11-05

BASE PART 330103

COMPLETE ORDER NUMBER REQUIRED

MODULE ROLE
330103-00-16-05-11-05 is a metric-thread 3300 XL 8 mm FluidLoc proximity probe whose FluidLoc cable helps prevent liquid migration through the cable interior. It operates with a compatible extension cable and Proximitor Sensor.
CONFIGURATION NOTE
For 330103-00-16-05-11-05, the fields define 0 mm unthreaded length, 160 mm case length, 0.5 m total length, a protected miniature ClickLoc connector on FluidLoc cable and CSA, ATEX and IECEx approvals; confirm matching FluidLoc components, system length and metric mounting.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the 330103-00-16-05-11-05 reference is structured

330103
Base model
00
Order field 1
16
Order field 2
05
Order field 3
11
Order field 4
05
Final field
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Baker Hughes Datasheet 141194 ↗
330103 · 3300 XL 8 MM FLUIDLOC PROXIMITY PROBE

Engineering data at a glance

Review the exact configuration before replacement.

THREADM10 × 1
CASE LENGTH160 mm
TOTAL LENGTH0.5 m
CABLEFluidLoc + protector
Baker Hughes 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AM.
General Information ＋
BrandBently Nevada
Part number330103-00-16-05-11-05
Product type3300 XL 8 mm FluidLoc Proximity Probe
Product family3300 XL 8 mm Proximity Transducer System
ManufacturerBently Nevada / Baker Hughes
ORDER NUMBER CHECK ＋
Base reference330103
Complete model330103-00-16-05-11-05
Ordered fields00 · 16 · 05 · 11 · 05
INSTALLATION VERIFICATION ＋
Probe constructionUnarmored metric-thread probe
FluidLoc functionReduces liquid migration through cable
Connector optionClickLoc with connector protector
System compatibilityMatch extension cable and Proximitor length
Approval optionCSA, ATEX and IECEx
DOCUMENTATION & ORDER CHECK ＋
Official referenceBaker Hughes 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AM.
Quotation checkConfirm the complete model, quantity, labels, connectors, installed system and application conditions
FAQ

Questions Buyers Ask Most

What is 330103-00-16-05-11-05 used for?＋
330103-00-16-05-11-05 is a Bently Nevada 3300 XL 8 mm metric proximity probe used for shaft vibration and position measurement where a FluidLoc cable is required to resist liquid migration through the cable interior.
What does option 11 specify?＋
Option 11 specifies a miniature ClickLoc connector with a connector protector on FluidLoc cable. This differs from option 02, which uses standard cable without a protector.
Can it replace 330103-00-16-05-02-05?＋
The two probes share thread, case length, lead length and approvals, but option 11 uses protected FluidLoc cable while option 02 uses unprotected standard cable. Replacement requires confirmation that the connector protection and cable construction suit the installation.
Which extension cable is required?＋
Use a compatible 3300 XL 8 mm extension cable and select its length so the 0.5 m probe lead plus the extension cable equals the Proximitor Sensor system length. Confirm whether the site requires matching FluidLoc construction.
Why is the FluidLoc option important?＋
FluidLoc construction helps prevent oil or other process liquids from migrating through the cable interior, which is valuable where the probe lead is exposed to fluids inside the machine.
What must be checked before installation?＋
Confirm the M10 × 1 thread, 160 mm case, 0.5 m lead, FluidLoc cable, protected ClickLoc connector, extension-cable and Proximitor compatibility, probe gap and site approvals.
What should be provided for a quotation?＋
Provide the full 330103-00-16-05-11-05 code, quantity, nameplate and connector photos, installed cable and sensor numbers, system length, fluid exposure, mounting dimensions and hazardous-area requirements.
CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
OFFICIAL DATASHEET

Manuals and Official References for 330103-00-16-05-11-05

Official Baker Hughes manufacturer-reference information for 330103-00-16-05-11-05.

3300 XL 8 mm FluidLoc Proximity Probe

Baker Hughes 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AM.

OFFICIAL DATASHEET ↗

Contact to Get Support

Send the complete model, quantity, nameplate photos and your technical or purchasing question.

✉ EMAIL · sales5@mooreplc.comWHATSAPP · +86 153 5940 8275
Baker Hughes 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AM.
3300 XL 8 MM PROXIMITY TRANSDUCER SYSTEM RELATIONSHIP

How 330103-00-16-05-11-05 fits into the system

Bently Nevada is the manufacturer, 3300 XL 8 mm Proximity Transducer System is the system context, and 330103-00-16-05-11-05 is the complete configured reference.

PRODUCT ENTITY3300 XL 8 mm FluidLoc Proximity Probe
CONFIGURATION00 · 16 · 05 · 11 · 05
COMPATIBILITYVerify complete installed system
APPLICATION AREAS

Application and sourcing checks for 330103-00-16-05-11-05

Probe constructionUnarmored metric-thread probe
FluidLoc functionReduces liquid migration through cable
Connector optionClickLoc with connector protector
