Bently Nevada 330103-00-16-05-02-05 3300 XL 8 mm Proximity Probe
Bently Nevada 330103-00-16-05-02-05 3300 XL 8 mm Proximity Probe
Bently Nevada 330103-00-16-05-02-05 3300 XL 8 mm Proximity Probe

Bently Nevada 330103-00-16-05-02-05 3300 XL 8 mm Proximity Probe

BENTLY NEVADA · 3300 XL 8 MM PROXIMITY PROBE

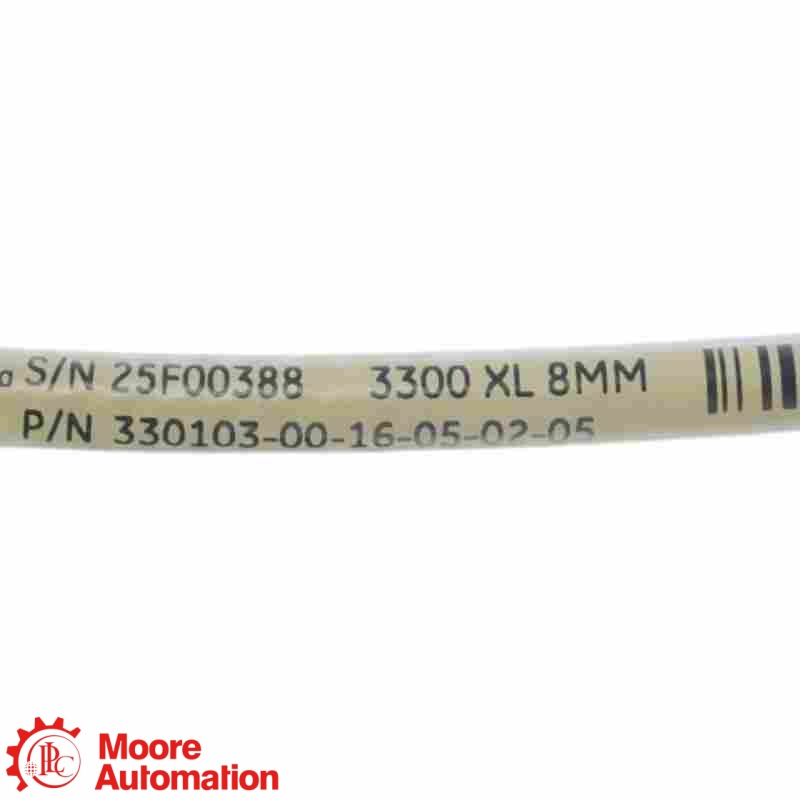

330103-00-16-05-02-05

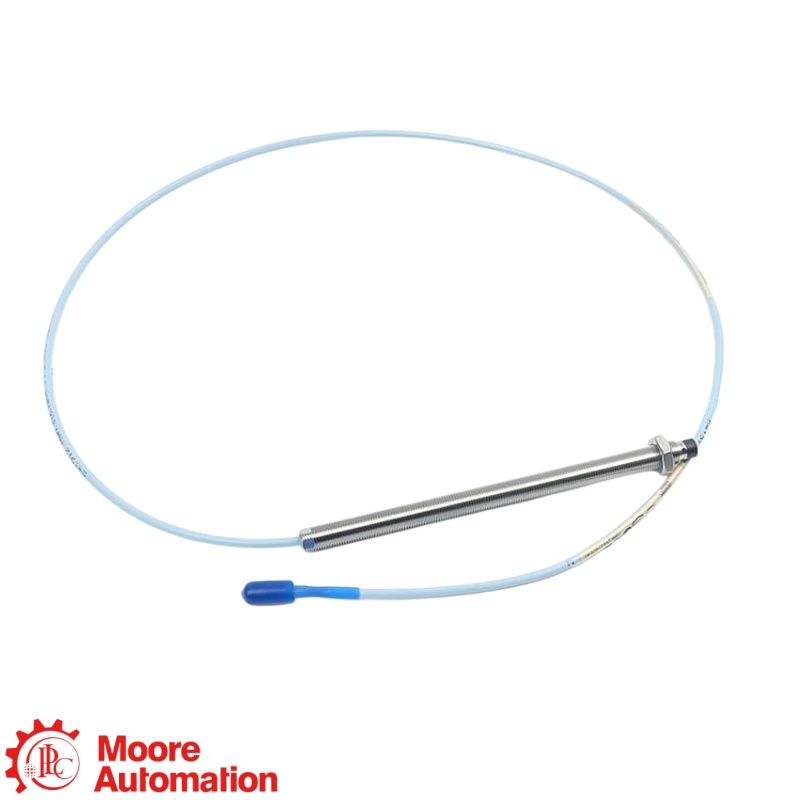

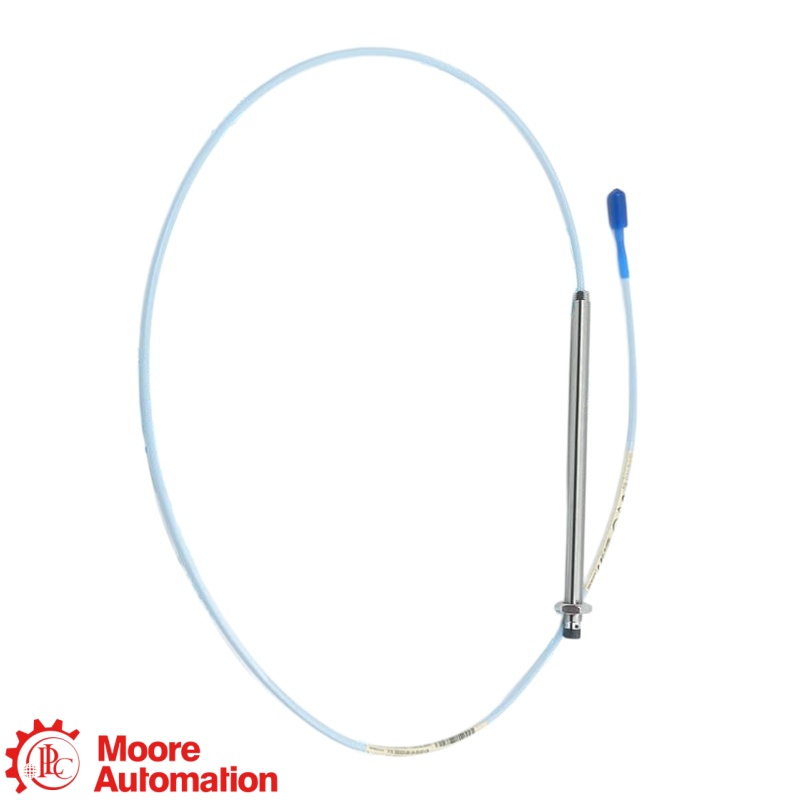

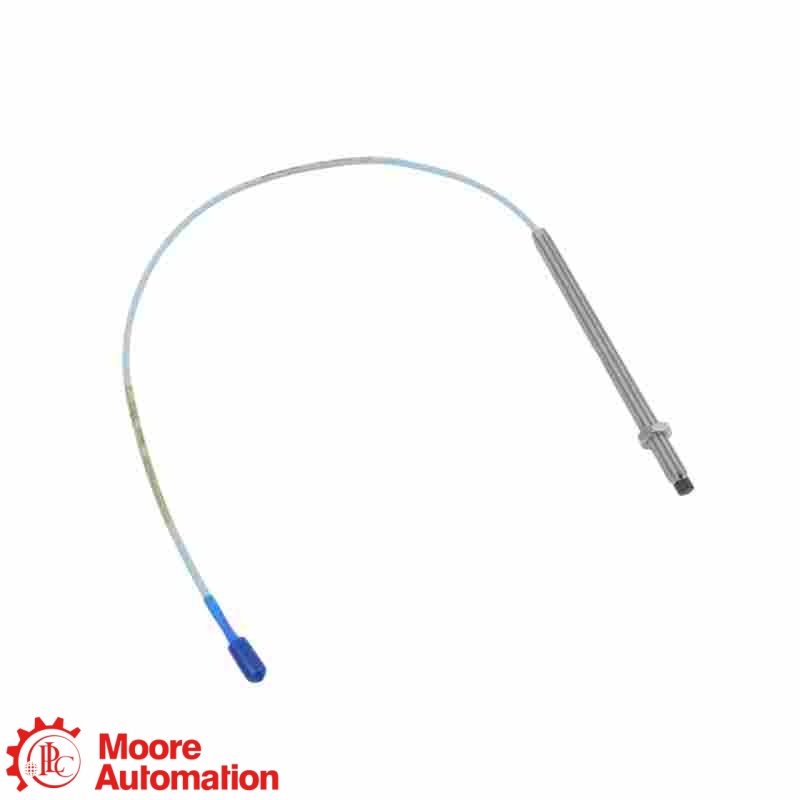

The 330103-00-16-05-02-05 is an M10 × 1 unarmored 3300 XL 8 mm proximity probe with 0 mm unthreaded length, 160 mm case length, 0.5 m standard cable, an unprotected ClickLoc connector and multiple approvals.

THREADM10 × 1
CASE LENGTH160 mm
TOTAL LENGTH0.5 m
CONNECTORClickLoc · standard
MANUFACTURERBently Nevada
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Inquire Now
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3300 XL 8 MM PROXIMITY PROBE
3300 XL 8 MM PROXIMITY TRANSDUCER SYSTEM

330103-00-16-05-02-05

BASE PART 330103

COMPLETE ORDER NUMBER REQUIRED

MODULE ROLE
330103-00-16-05-02-05 is a metric-thread unarmored 3300 XL 8 mm proximity probe for non-contact shaft vibration and position measurement with a compatible extension cable and Proximitor Sensor.
CONFIGURATION NOTE
For 330103-00-16-05-02-05, the fields define 0 mm unthreaded length, 160 mm case length, 0.5 m total length, a miniature ClickLoc connector on standard cable without a protector and CSA, ATEX and IECEx approvals; confirm metric mounting, system length and site certification before replacement.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the 330103-00-16-05-02-05 reference is structured

330103
Base model
00
Order field 1
16
Order field 2
05
Order field 3
02
Order field 4
05
Final field
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Baker Hughes Datasheet 141194 ↗
330103 · 3300 XL 8 MM PROXIMITY PROBE

Engineering data at a glance

Review the exact configuration before replacement.

THREADM10 × 1
CASE LENGTH160 mm
TOTAL LENGTH0.5 m
CONNECTORClickLoc · standard
Baker Hughes 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AM.
General Information ＋
BrandBently Nevada
Part number330103-00-16-05-02-05
Product type3300 XL 8 mm Proximity Probe
Product family3300 XL 8 mm Proximity Transducer System
ManufacturerBently Nevada / Baker Hughes
ORDER NUMBER CHECK ＋
Base reference330103
Complete model330103-00-16-05-02-05
Ordered fields00 · 16 · 05 · 02 · 05
INSTALLATION VERIFICATION ＋
Probe constructionUnarmored metric-thread probe
System lengthProbe plus extension cable must match the Proximitor
Cable optionStandard cable without connector protector
Approval optionCSA, ATEX and IECEx
Linear system range2 mm (80 mil) with compatible 3300 XL system
DOCUMENTATION & ORDER CHECK ＋
Official referenceBaker Hughes 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AM.
Quotation checkConfirm the complete model, quantity, labels, connectors, installed system and application conditions
FAQ

Questions Buyers Ask Most

What is 330103-00-16-05-02-05 used for?＋
330103-00-16-05-02-05 is a metric M10 × 1 Bently Nevada 3300 XL 8 mm proximity probe used for non-contact shaft vibration and position measurement with a matching extension cable, Proximitor Sensor and monitor channel.
How does 330103 differ from 330101?＋
The 330103 family uses an M10 × 1 metric thread, while 330101 uses a 3/8-24 UNF thread. Their electrical system family is similar, but the mechanical threads are not interchangeable without changing the mounting arrangement.
What do fields 00 and 16 mean?＋
For this metric probe, field 00 specifies 0 mm unthreaded length and field 16 specifies a 160 mm overall case length. These dimensions must match the probe bracket, locknut position and machine clearance.
Does connector option 02 include a protector?＋
No. Option 02 identifies a miniature coaxial ClickLoc connector on standard cable without a connector protector, so protection must be addressed separately if the installation requires it.
Can this probe be used in a five-meter system?＋
The probe has a 0.5 m integral lead, so a five-meter system requires an extension cable selected so the combined probe and extension-cable length matches the compatible five-meter Proximitor Sensor.
What must be confirmed before replacement?＋
Confirm the complete order code, M10 × 1 thread, 160 mm case, 0.5 m lead, unprotected ClickLoc connector, extension-cable length, Proximitor calibration family and hazardous-area approvals.
What should be included in an inquiry?＋
Send the full 330103-00-16-05-02-05 model, quantity, nameplate and connector photos, installed extension-cable and Proximitor numbers, required system length, mounting dimensions and approval details.
CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
OFFICIAL DATASHEET

Manuals and Official References for 330103-00-16-05-02-05

Official Baker Hughes manufacturer-reference information for 330103-00-16-05-02-05.

3300 XL 8 mm Proximity Probe

Baker Hughes 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AM.

OFFICIAL DATASHEET ↗

Contact to Get Support

Send the complete model, quantity, nameplate photos and your technical or purchasing question.

✉ EMAIL · sales5@mooreplc.comWHATSAPP · +86 153 5940 8275
Baker Hughes 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AM.
3300 XL 8 MM PROXIMITY TRANSDUCER SYSTEM RELATIONSHIP

How 330103-00-16-05-02-05 fits into the system

Bently Nevada is the manufacturer, 3300 XL 8 mm Proximity Transducer System is the system context, and 330103-00-16-05-02-05 is the complete configured reference.

PRODUCT ENTITY3300 XL 8 mm Proximity Probe
CONFIGURATION00 · 16 · 05 · 02 · 05
COMPATIBILITYVerify complete installed system
APPLICATION AREAS

Application and sourcing checks for 330103-00-16-05-02-05

Probe constructionUnarmored metric-thread probe
System lengthProbe plus extension cable must match the Proximitor
Cable optionStandard cable without connector protector
