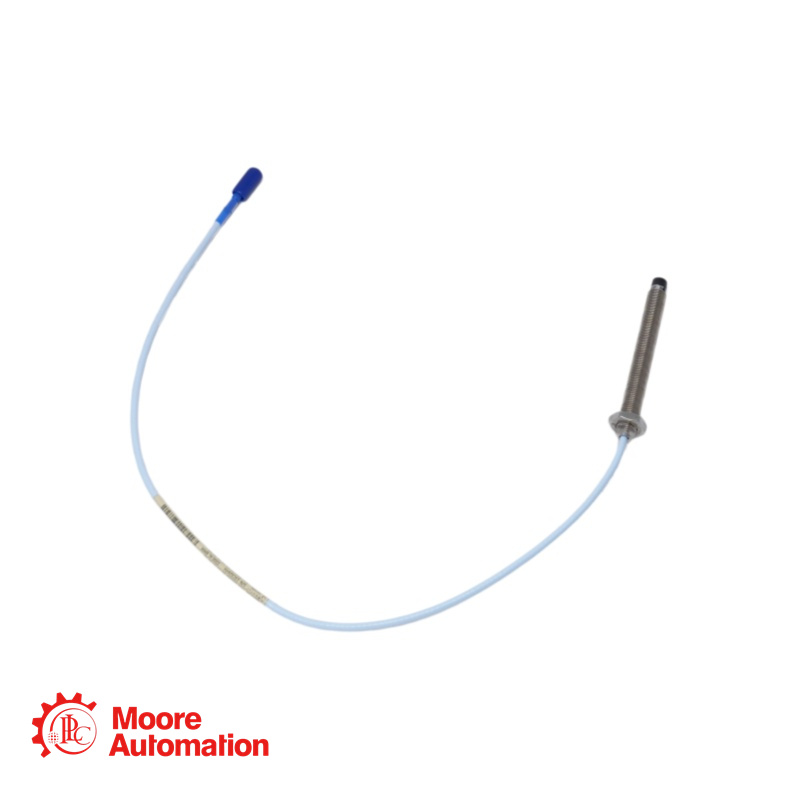

330103-00-09-20-02-00 is 3300 XL 8 mm Probe, M10 x 1 thread, without armor
Brand :
Bently NevadaPart Number :
330103-00-09-20-02-00Weight :
0.05kgDimension :
1.8x1.6x113cmCountry of Origin :
USAHS Code :
8537101190Description :
Proximity Probe, Metric
330103-00-09-20-02-00 Description
330103-00-09-20-02-00 is 3300 XL 8 mm Probe, M10 x 1 thread, without armor.
The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and
3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:
Radial vibration and radial position measurements
Axial (thrust) position measurements
Tachometer and zero speed measurements
Phase reference (Keyphasor signals)
The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System. Upgrades from the 3300 RAM system to the 3300 XL NSv system may use the existing probe, extension cable, and monitoring.
330103-00-09-20-02-00 Specifications
Unthreaded Length Option: 0.0 in
Output resistance:50 Ω
Overall Case Length Option:90 mm
Total Length Option: 2.0 meters (6.6 feet)
Connector and Cable-Type Option:Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option: Not required
Recommended Gap Setting:1.0 mm (40 mils)
330103-00-09-20-02-00 FAQ
What is the correct gap setting for this probe?
For standard 3300 XL 8 mm systems, the recommended gap setting is typically 1.27 mm (50 mils) , which places the probe in the center of its 2.0 mm (80 mil) linear range.
What is the maximum thread engagement length for the 1/4-28 thread?
The maximum recommended thread engagement is 0.375 inches (9.5 mm) , following the industry standard of 1.5 times the nominal thread diameter. Exceeding this may cause binding during installation.
Can this probe be used in hazardous areas?
The maximum recommended thread engagement length is 0.375 inches . Exceeding this length may cause binding during installation.
Can this probe be used in hazardous areas?
The "-00" agency approval option indicates this specific configuration has no special hazardous area approvals. For hazardous locations, you would need a version with an approval option code like "-05" for multiple approvals (CSA, ATEX, IECEx).
What is the maximum recommended cable length for the full transducer system?
When combined with a 3300 XL Proximitor and appropriate extension cable, the total system length can be up to 10 meters (33 feet) . This 2.0 meter probe would typically be paired with an extension cable to achieve the desired total system length (e.g., 5m or 7m systems).
What type of connector is used on this probe?
It uses a miniature coaxial ClickLoc™ connector (option "02"), which locks into place to prevent loosening due to vibration and ensures a reliable connection.
