Bently Nevada 330102-04-25-10-02-00 3300 XL 8 mm Armored Proximity Probe

BENTLY NEVADA · 3300 XL 8 MM PROXIMITY PROBE

330102-04-25-10-02-00

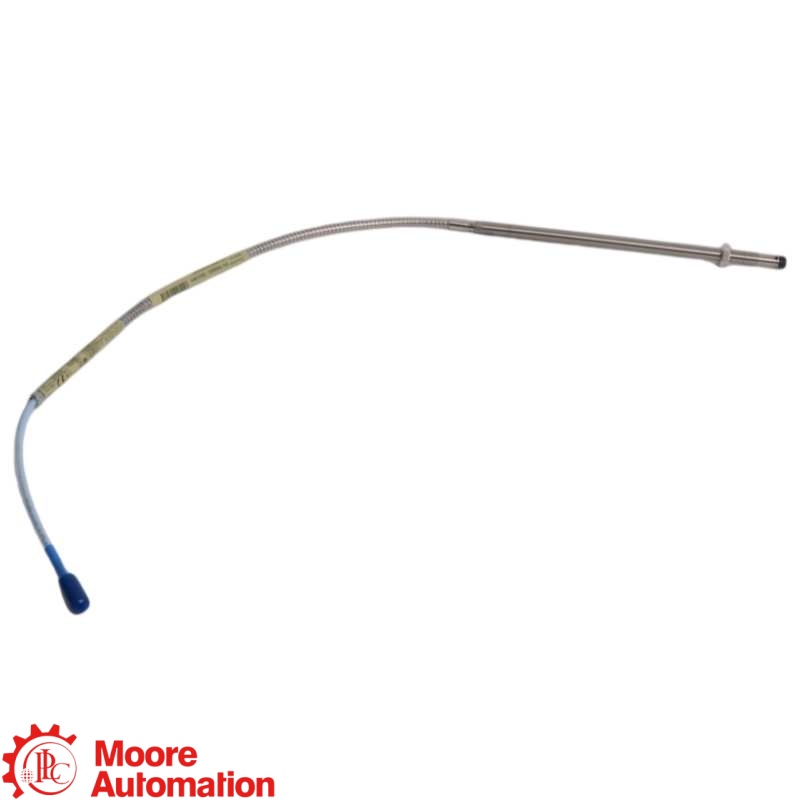

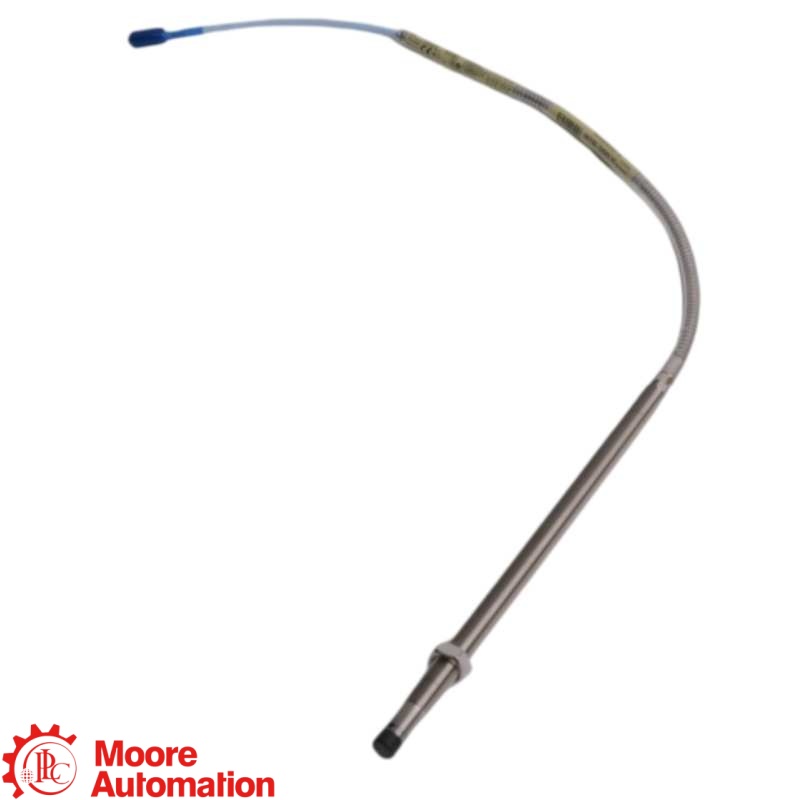

The 330102-04-25-10-02-00 is a 3300 XL 8 mm proximity probe with 3/8-24 UNF thread and armor. This configuration has 0.4 in unthreaded length, 2.5 in case length, 1.0 m total length, standard-cable miniature ClickLoc connection and no agency-approval option.

PROBE TYPE3300 XL 8 mm armored probe

THREAD3/8-24 UNF

TOTAL LENGTH1.0 m

CONNECTORClickLoc · standard cable

MANUFACTURERBently Nevada

CONDITION / WARRANTYOriginal New · One-Year Warranty

ISO CERTIFICATIONISO-Certified Product

VERIFICATIONProduct photos and videos provided after inquiry

REQUEST A QUOTE

✉ EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

BENTLY NEVADA ↗3300 XL 8 MM ARMORED PROXIMITY PROBE

3300 XL 8 MM PROXIMITY TRANSDUCER SYSTEM

330102-04-25-10-02-00

330102

3300 XL 8 mm Armored Proximity Probe · 0.5 m standard cable

PRODUCT ROLE

330102-04-25-10-02-00 is a 3300 XL 8 mm proximity probe with 3/8-24 UNF thread and armor for a compatible 3300 XL 8 mm proximity measurement chain.

CONFIGURATION NOTE

For 330102-04-25-10-02-00, the official ordering options specify 0.4 in unthreaded length, 2.5 in case length, 1.0 m total length, a standard-cable miniature ClickLoc connector and no agency approval.

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

ORDER NUMBER BREAKDOWN

How the 330102-04-25-10-02-00 reference is structured

330102

Probe family3/8-24 UNF · with armor

Unthreaded length0.4 in

Case length2.5 in

Total length1.0 m

Cable / connectorStandard cable · ClickLoc without protector

Approval optionNo agency approvals

MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Baker Hughes 3300 XL 8 mm Datasheet ↗

330102-04-25-10-02-00 · 3300 XL 8 MM ARMORED PROXIMITY PROBE

Engineering data at a glance

PROBE TYPE3300 XL 8 mm probe with armor

THREAD3/8-24 UNF

CASE LENGTH2.5 in

TOTAL LENGTH1.0 m

Baker Hughes 3300 XL 8 mm Datasheet defines the product family and ordering fields used for 330102-04-25-10-02-00.

General Information＋

ManufacturerBently Nevada

Model330102-04-25-10-02-00

Product type3300 XL 8 mm Armored Proximity Probe

Transducer system3300 XL 8 mm Proximity Transducer System

Measurement roleNon-contacting relative displacement measurement

ORDERING OPTIONS＋

Unthreaded length0.4 in

Overall case length2.5 in

Total probe length1.0 m

Probe construction3/8-24 UNF thread · stainless-steel armor

Connector / cable02 · miniature coaxial ClickLoc · standard cable

Agency approval00 · no agency approval

SYSTEM PERFORMANCE＋

Average scale factor7.87 V/mm (200 mV/mil)

Linear range2 mm (80 mils)

Recommended gap1.27 mm (50 mils)

Frequency response0 to 10 kHz

INSTALLATION & MATCHING CHECK＋

System componentsMatch probe, extension cable and Proximitor Sensor

MountingVerify 3/8-24 UNF thread and 2.5 in case length

Target / gapConfirm target material and recommended gap

Cable routingVerify 1.0 m total length and connector clearance

FAQ

Questions Buyers Ask Most

What is 330102-04-25-10-02-00?＋

330102-04-25-10-02-00 is a 3300 XL 8 mm proximity probe with 3/8-24 UNF thread and armor for a compatible 3300 XL 8 mm proximity measurement chain.

How is the 330102-04-25-10-02-00 order number structured?＋

The 330102-04-25-10-02-00 reference is divided into 6 fields: 330102 (probe family), 04 (unthreaded length), 25 (case length), 10 (total length), 02 (cable / connector), 00 (approval option).

What are the key configuration details for 330102-04-25-10-02-00?＋

Which product family does 330102-04-25-10-02-00 belong to?＋

330102-04-25-10-02-00 belongs to the 3300 XL 8 mm Proximity Transducer System product family.

What must be checked before installing 330102-04-25-10-02-00?＋

System components: Match probe, extension cable and Proximitor Sensor; Mounting: Verify 3/8-24 UNF thread and 2.5 in case length; Target / gap: Confirm target material and recommended gap; Cable routing: Verify 1.0 m total length and connector clearance.

Is an exact official datasheet available for 330102-04-25-10-02-00?＋

Yes. The linked manufacturer document supports the structured information shown for 330102-04-25-10-02-00.

What information should be supplied when ordering 330102-04-25-10-02-00?＋

For 330102-04-25-10-02-00, provide the complete catalog number, quantity, installed assembly references, application details and delivery destination.

CONTACT PRODUCT SPECIALIST

Confirm your 330102-04-25-10-02-00 configuration with Frida

Share the complete ordering number, mounting dimensions, cable length, approval requirement and measurement-chain references for compatibility checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

OFFICIAL DATASHEET

Official Datasheet and References for 330102-04-25-10-02-00

Official Baker Hughes manufacturer information for the 330102-04-25-10-02-00 3300 XL 8 mm Armored Proximity Probe.

3300 XL 8 mm Armored Proximity Probe

Baker Hughes 3300 XL 8 mm Datasheet provides the manufacturer reference used for the model and configuration information on this page.

OFFICIAL DATASHEET ↗

Contact to Get Support

Send the complete model, quantity, nameplate details and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

Source: Baker Hughes 3300 XL 8 mm Datasheet.

PRODUCT RELATIONSHIP

How 330102-04-25-10-02-00 Fits into the 3300 XL 8 mm Proximity Transducer System

Bently Nevada is the manufacturer; 3300 XL 8 mm Proximity Transducer System is the product family; and 330102-04-25-10-02-00 is the exact ordering reference.

Bently Nevada · BRAND

3300 XL 8 mm Proximity Transducer SystemPRODUCT FAMILY · MANUFACTURER-MATCHED CONFIGURATION

PRODUCT REFERENCE

330102-04-25-10-02-00

The probe is the sensing element in a matched 3300 XL 8 mm proximity measurement chain.

ORDERING CONFIGURATION

04 · 0.4 in · 25 · 2.5 in · 10 · 1.0 m

SYSTEM ROLE

3300 XL 8 mm Proximity Transducer System

Match probe, extension cable and Proximitor Sensor.

System relationship: the probe, extension cable, Proximitor Sensor, total system length and target material must all match.

APPLICATION AREAS

Application map for 330102-04-25-10-02-00

Relative Shaft VibrationContactless relative-displacement measurement on rotating shafts

Axial Position MonitoringCompatible axial-position measurement with correct target and gap

APPLICATION CENTER330102-04-25-10-02-003300 XL 8 mm Armored Proximity Probe

Measurement-Chain IntegrationMatch extension cable and Proximitor Sensor

Installation MatchingConfirm thread, case, cable, connector and target material
